Installation
The following types of installation are permissible for contactors and auxil-
iary contactors in ambient temperatures of up to 70 °C:
Frame size S00: installation in series
Frame sizes S0 to S3: The resistor block must be installed on the right next
to the contactor because of the connecting leads there.
Dimensions
When the resistor is mounted, the contactors of frame sizes S0 to S3
become wider (see Section 3.6, Dimensioned drawings).

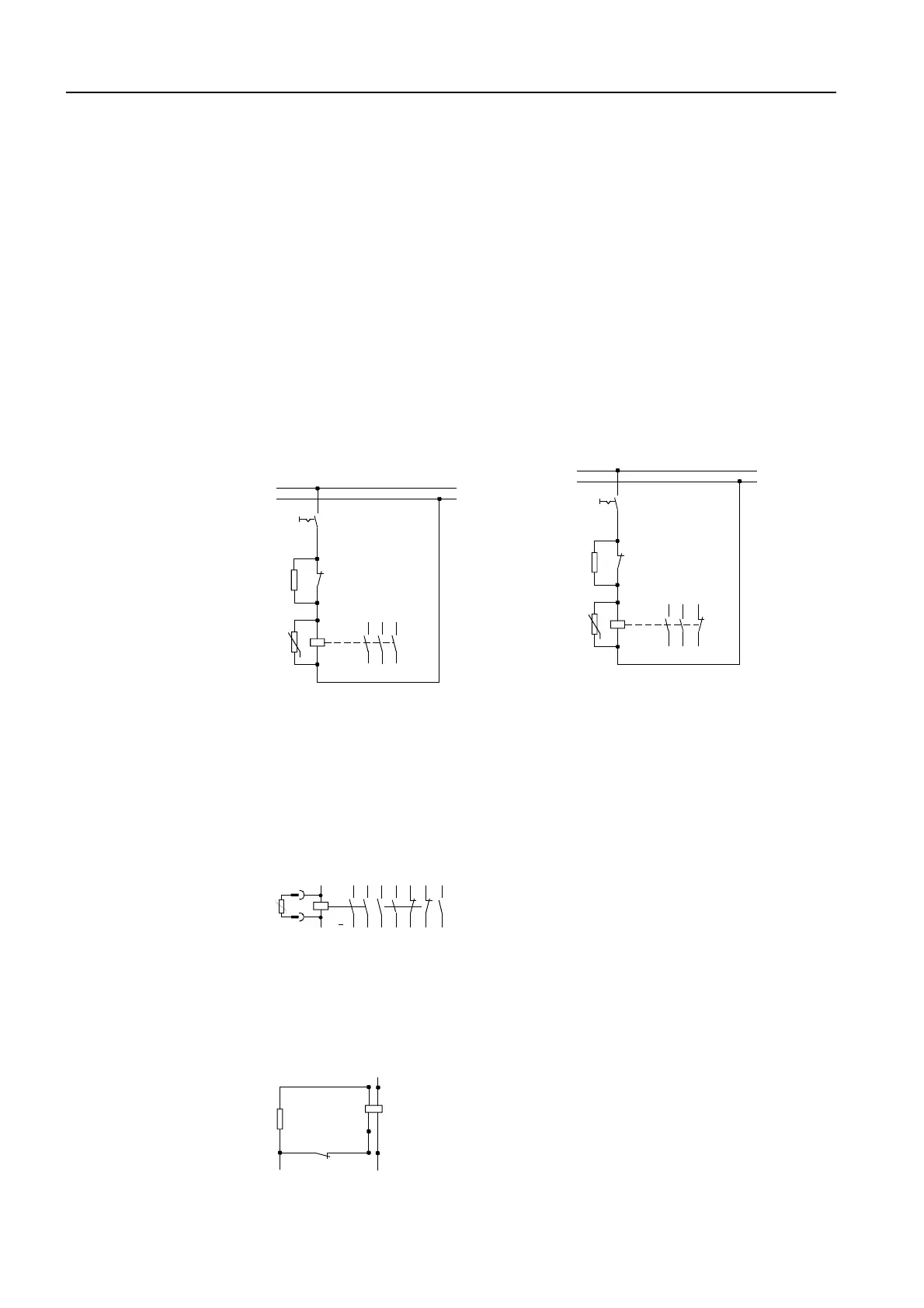

Circuit diagrams
Frame size S00
Terminal markings in acc. with Terminal markings in acc. with
DIN EN 50 012 DIN EN 50 005
Contactors 3RT1017-2K.42-0LA0 Auxiliary contactors
3RH1122-2K.40-0LA0
Figure 3-10: Contactors with an extended operating range, circuit diagrams
Frame sizes S0 to S3
Terminal markings in acc. with EN 50 012
Contactors 3RT102.-, 3RT103.-, 3RT104.-3K.44-0LA0
With front-mounted 4-pole auxiliary switch block 3RH1921-1HA22
Figure 3-11: Contactors with an extended operating range, terminal markings
NC contact 21/22 is required for the wiring of the series resistor.
Circuit diagram for wiring of the series resistor
Figure 3-12: Contactors with an extended operating range, circuit diagram
Series resistor R
V
attached
NC contact wired
2 NO + 1 NC contacts available
L+
L-
S1
R
V
NSB00559a
135
642
A2-
K1
K1
E1+
L+
L-
S1
R
V
NSB00560a
A2-
K1
K1
E1+
13
14
23
24
31
32
2 NO + 2 NC contacts
Identification number 22
13513
14
6
42A2( )
A1 21
22
31
32
43
44
NSB00561 a
U
(+)
A1
A1
22
(-)
A2
NSB00562a
R
V
21
(-)(+)
A2

Siemens SIRIUS Specifications

General

Product brand name	Siemens
Series	SIRIUS
Coil Voltage	24V DC, 110V AC, 230V AC
Switching Capacity	Up to 10A
Mounting Type	DIN rail
Product designation	SIRIUS
Contact Material	Silver alloy
Contact Rating	Varies depending on the specific SIRIUS relay model (e.g., 6 A at 250 V AC, 10 A at 250 V AC)
Switching Voltage	Varies depending on the specific SIRIUS relay model (e.g., 250 V AC, 400 V AC)
Mechanical Life	Up to 10 million operations
Electrical Life	Up to 100, 000 operations
Operating Temperature	-25°C to +55°C
Protection Class	IP20
Size of relay base	Varies depending on the specific SIRIUS relay model
