Siemens SIRIUS System Manual

3RV1 circuit breakers
SIRIUS System Manual
GWA 4NEB 430 0999-02b
2-29
Opening the door
The following table shows you how the cubicle door can be opened using
the rotary switch extension for the door:
Table 2-10: Opening a cubicle door using the rotary switch extension
Opening the door with
great force
Note:
If the circuit breaker is in the ON position and the door is opened with a
force >150 N to 200 N, the cap of the extension shaft is separated from the
rotary switch of the circuit breaker to prevent the circuit breaker being
destroyed.
The circuit breaker remains in the ON position.

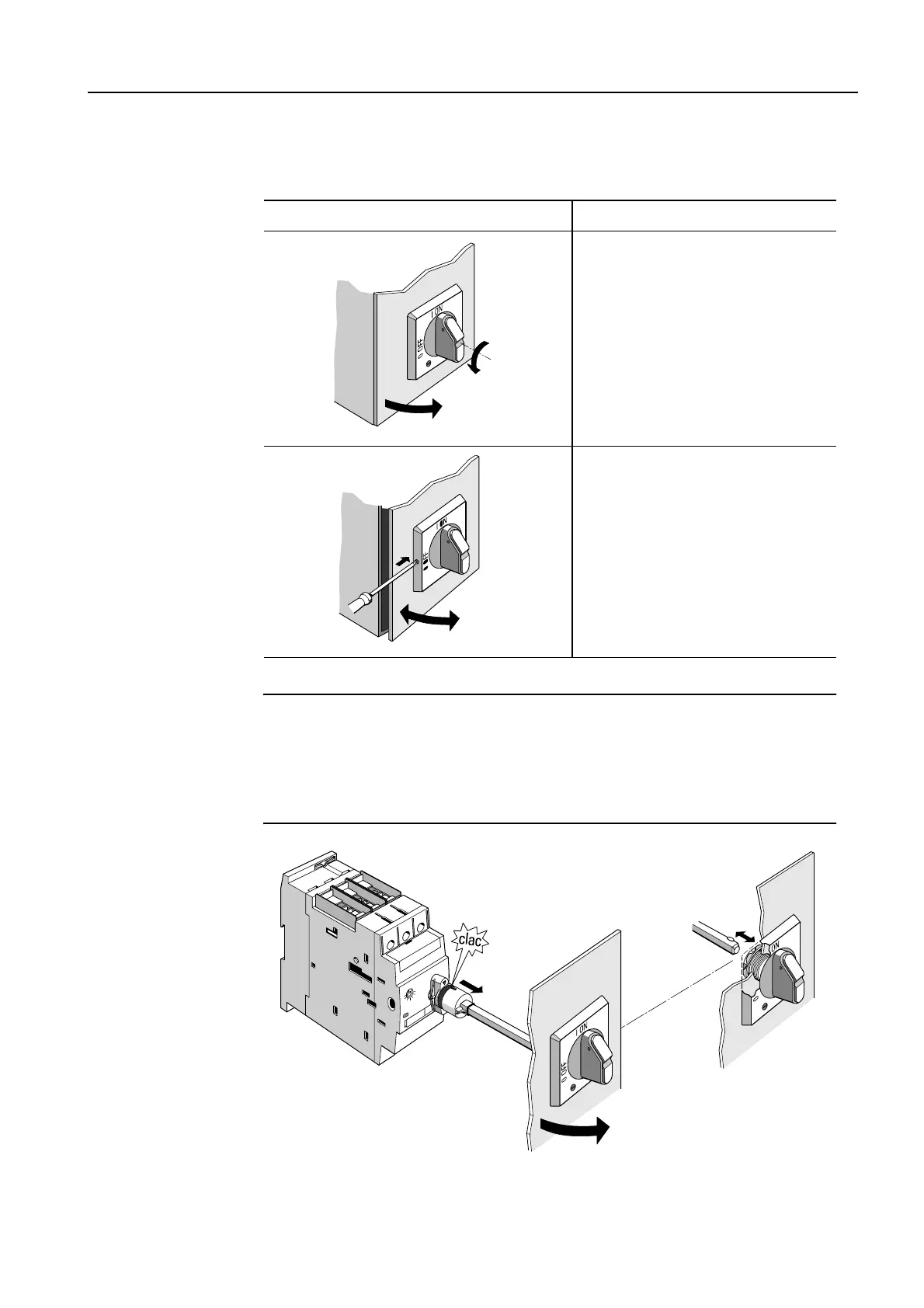

Figure 2-16: Operating the rotary switch extension for the door
Drawing Procedure
To open the cubicle door, set the
circuit breaker to O (OFF). This
releases the extension shaft from
the rotary switch and allows the
door to be opened.
If you want to open the cubicle
door during operation, you can
override the procedure by press-
ing the button at the side of the
rotary knob (step
1
).
To close it during operation, press
the button again so that the exten-
sion shaft snaps into place again.
2
1
1
2
Approx. 150
to 200 N

Siemens SIRIUS Specifications

General

Product brand name	Siemens
Series	SIRIUS
Coil Voltage	24V DC, 110V AC, 230V AC
Switching Capacity	Up to 10A
Mounting Type	DIN rail
Product designation	SIRIUS
Contact Material	Silver alloy
Contact Rating	Varies depending on the specific SIRIUS relay model (e.g., 6 A at 250 V AC, 10 A at 250 V AC)
Switching Voltage	Varies depending on the specific SIRIUS relay model (e.g., 250 V AC, 400 V AC)
Mechanical Life	Up to 10 million operations
Electrical Life	Up to 100, 000 operations
Operating Temperature	-25°C to +55°C
Protection Class	IP20
Size of relay base	Varies depending on the specific SIRIUS relay model
