Siemens SIRIUS System Manual

3RT1/3RH1 contactors
SIRIUS System Manual
GWA 4NEB 430 0999-02b
3-93
S2 - AC operation

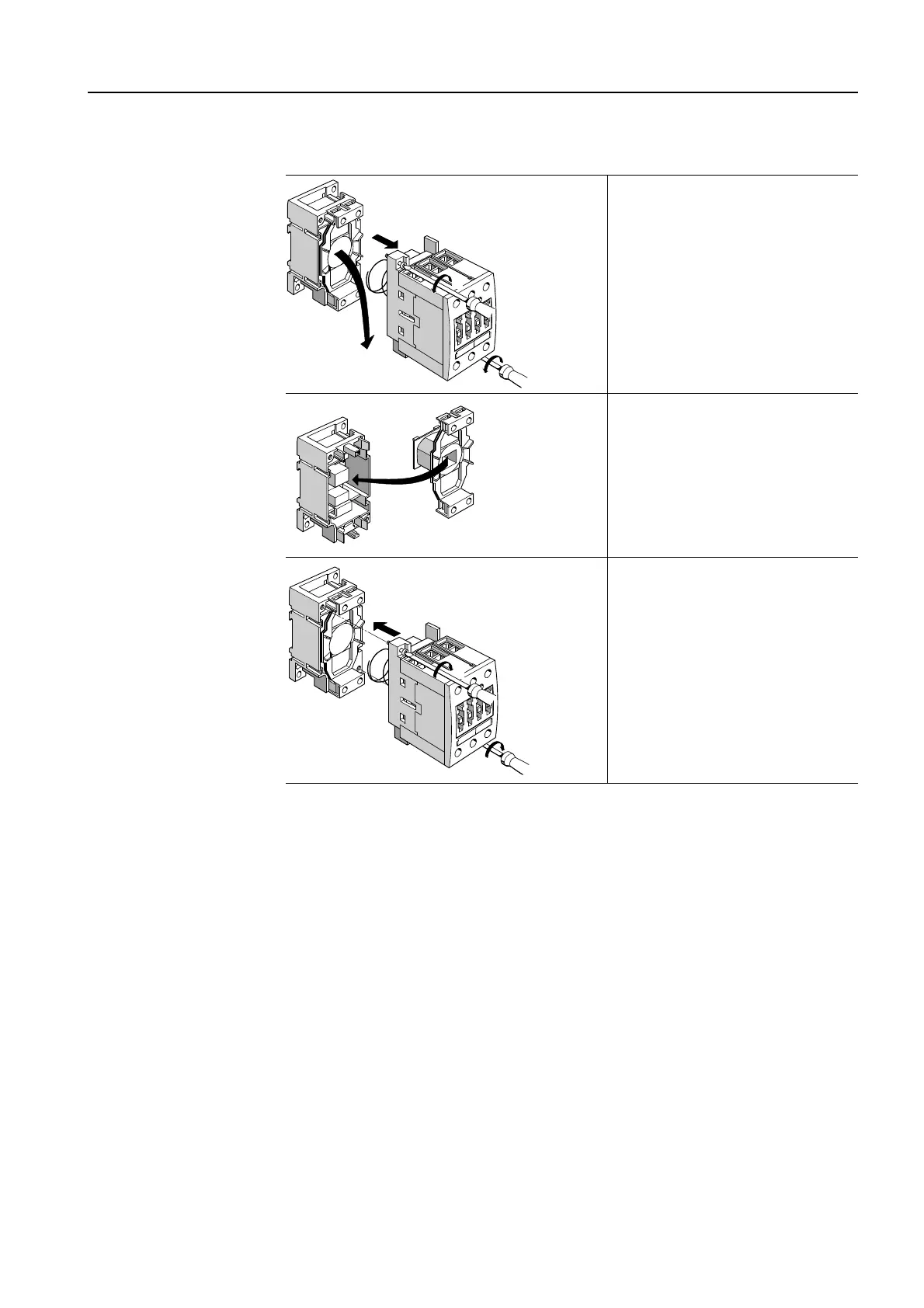

Figure 3-73: Replacing the magnet coil (frame size S2/AC)
Loosen the 2 screws between
the rear and front contactor
halves, and remove the mag-
net coil from the rear part of
the contactor.
Insert the new magnet coil.
Replace the front half of the
contactor, and tighten the 2
screws again.
1
1
2
3
4
6
6
5

Siemens SIRIUS Specifications

General

Product brand name	Siemens
Series	SIRIUS
Coil Voltage	24V DC, 110V AC, 230V AC
Switching Capacity	Up to 10A
Mounting Type	DIN rail
Product designation	SIRIUS
Contact Material	Silver alloy
Contact Rating	Varies depending on the specific SIRIUS relay model (e.g., 6 A at 250 V AC, 10 A at 250 V AC)
Switching Voltage	Varies depending on the specific SIRIUS relay model (e.g., 250 V AC, 400 V AC)
Mechanical Life	Up to 10 million operations
Electrical Life	Up to 100, 000 operations
Operating Temperature	-25°C to +55°C
Protection Class	IP20
Size of relay base	Varies depending on the specific SIRIUS relay model
