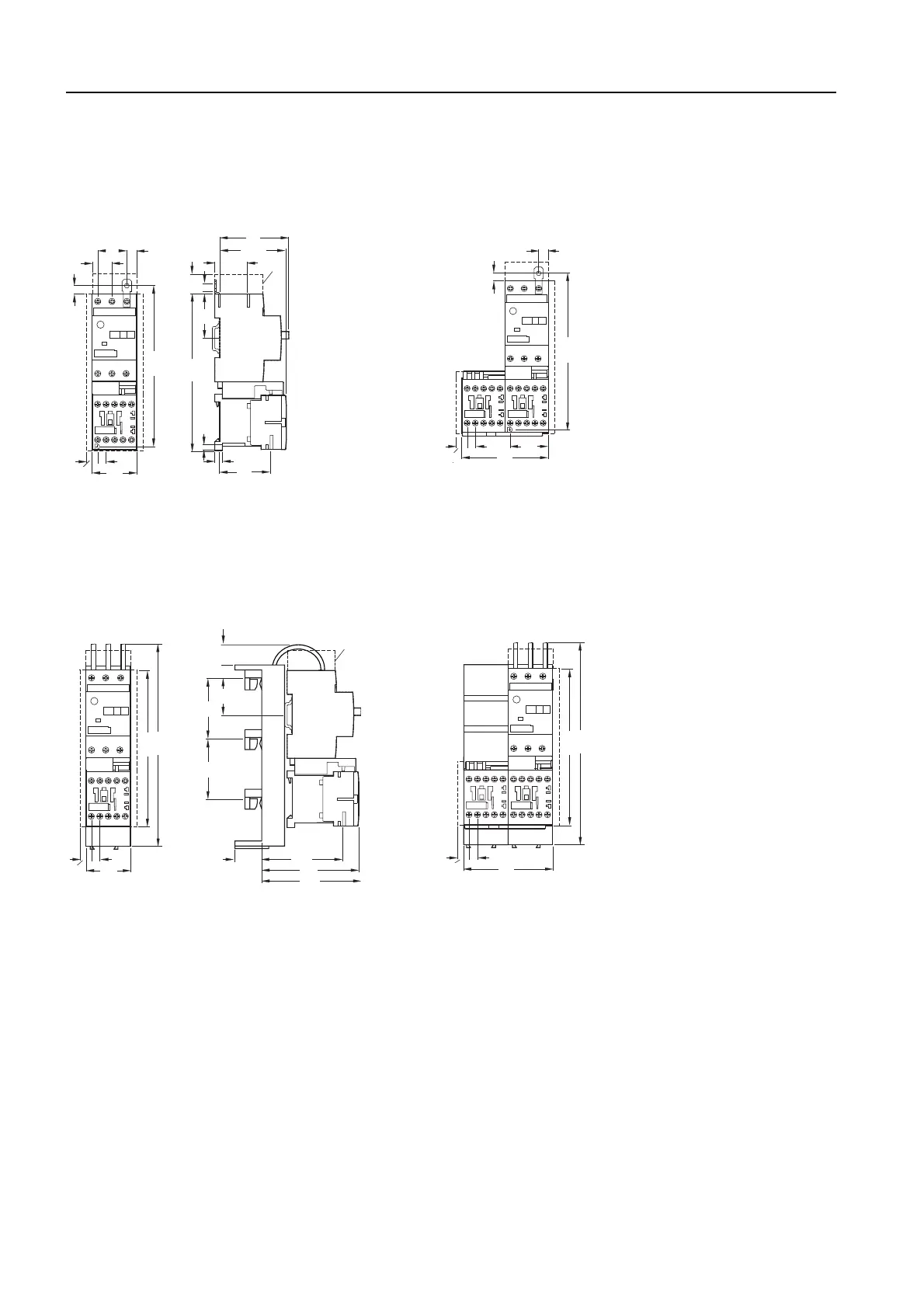

5.6 Dimensioned drawings
(dimensions in mm)
3RA1 fuseless load feeders - frame size S00 for rail
Figure 5-16: 3RA11 10-..A.. for direct-on-line starting 3RA12 10-..A.. for reversing operation
1) Space above the arc chute
Clearance to grounded parts at the side at least 6 mm
3RA1 fuseless load feeders - frame size S00
for 40 mm and 60 mm busbar systems
Figure 5-17: 3RA11 10-..C.., 3RA11 10-..D.. for direct-on-line starting 3RA12 10-..C.., 3RA12 10-..D.. for reversing operation
1) Space above the arc chute
Clearance to grounded parts at the side at least 6 mm
163
9
5
45
6,5
6
14
10
30
8
51
7,5
5
159
20
45
5
5
27,5
67,5
70
1)
SIEMENS
SIEMENS
NSK-8164
I0
I0
9
5
90
6,5
40
163
8
10
NSK-8165
SIEMENS SIEMENS
6.5
67.5
27.5
7. 5
6.5
159
9
5
45
6,5
21
1)
SIEMENS
SIEMENS
NSK-8166
203
27
60
13
48
60
82
98
101
I0
159
90
SIEMENS
SIEMENS
203
I0
9
SIEMENS
NSK-8167
5
6,5
6.5
6.5
