Siemens SIRIUS System Manual

3RV1 circuit breakers
SIRIUS System Manual
2-24
GWA 4NEB 430 0999-02b

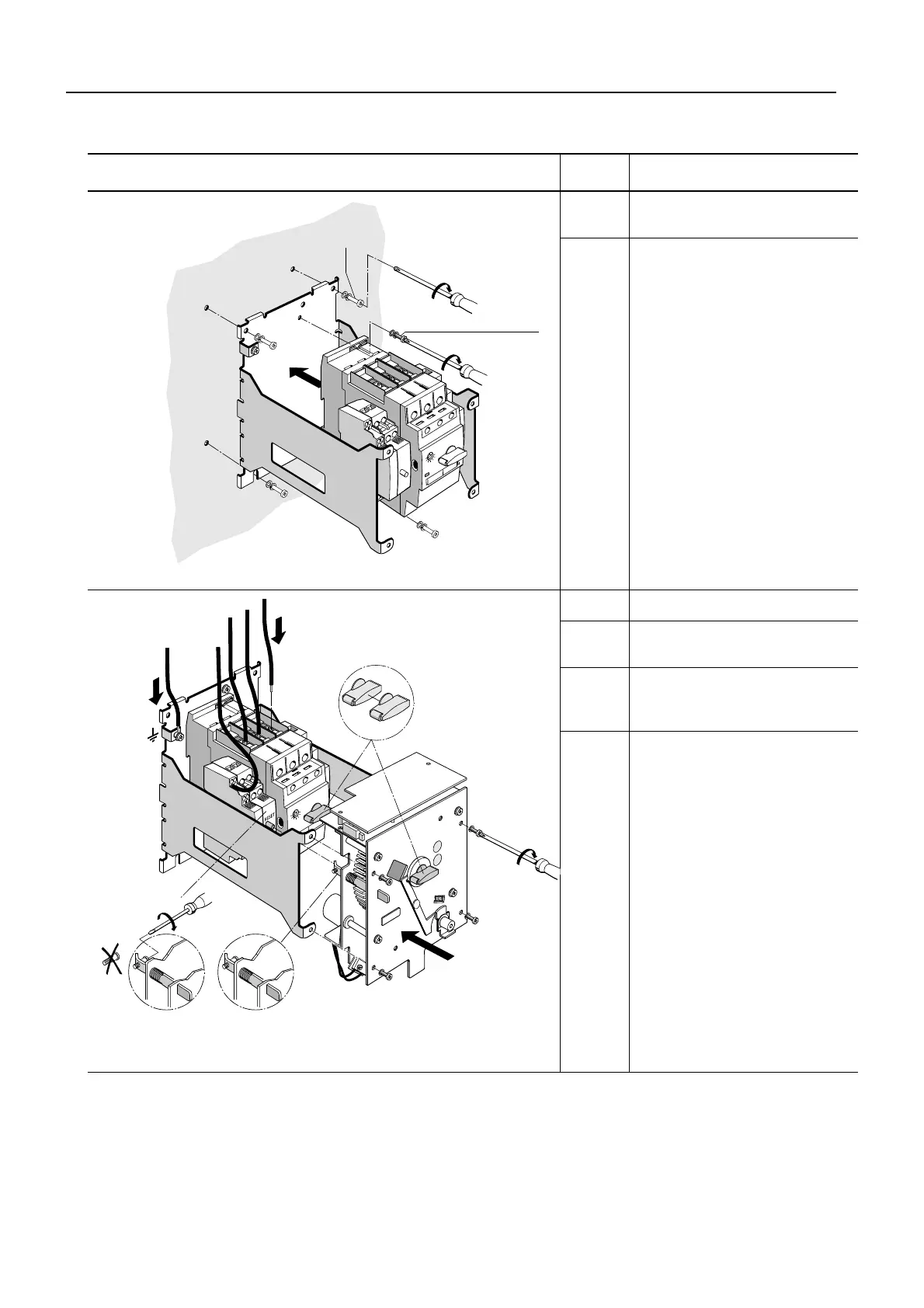

7
Screw the frame onto the mount-
ing surface using 4 screws (M5).
8, 9
Attach the circuit breaker using 2
screws.
Attention:
Use screws 14 mm in length.
10
Attach the ground wire.
11
Connect the main and control
wires to the circuit breaker.
12
If desired, set MANUAL RESET:
Remove the screw from the
RESET lever.
13-15
Put the remote-control mecha-
nism module into place,
making sure that the driver covers
the knob on the circuit breaker,
and screw it on.
Drawing Step Procedure
7
9
9
7
8
S2: M4/S3: M5
M5 (4 x)
3RV1921-1M
15
12
MANUAL
RESET
14
13
(4 x)
AUTOM.
RESET
10
11
