Siemens SIRIUS System Manual

System overview
SIRIUS System Manual
1-18
GWA 4NEB 430 0999-02b
1.5.3 Cage Clamp terminals
The Cage Clamp

terminal system is now available for circuit breakers, con-
tactors, overload relays, and time relays.
Cage-type clamping units, known as Cage Clamp terminals in the case of
SIRIUS products, facilitate quick and maintenance-free wiring.
Design
The Cage Clamp terminal consists of two parts:
• A power rail for conducting current
• A sprung cage-type clamp for clamping strength
Figure 1-8: Cage Clamp terminal
Conductors
The Cage Clamp terminal on the switching devices clamps all copper wires
(single-core, stranded and finely stranded) from 0.25 mm
2
to 2.5 mm
2
. The
conductors can be clamped directly or with some protection for splicing. To
this end, wire end ferrules or pin-end connectors can be placed on the con-
ductor ends. The best solution is an ultrasonically condensed conductor.

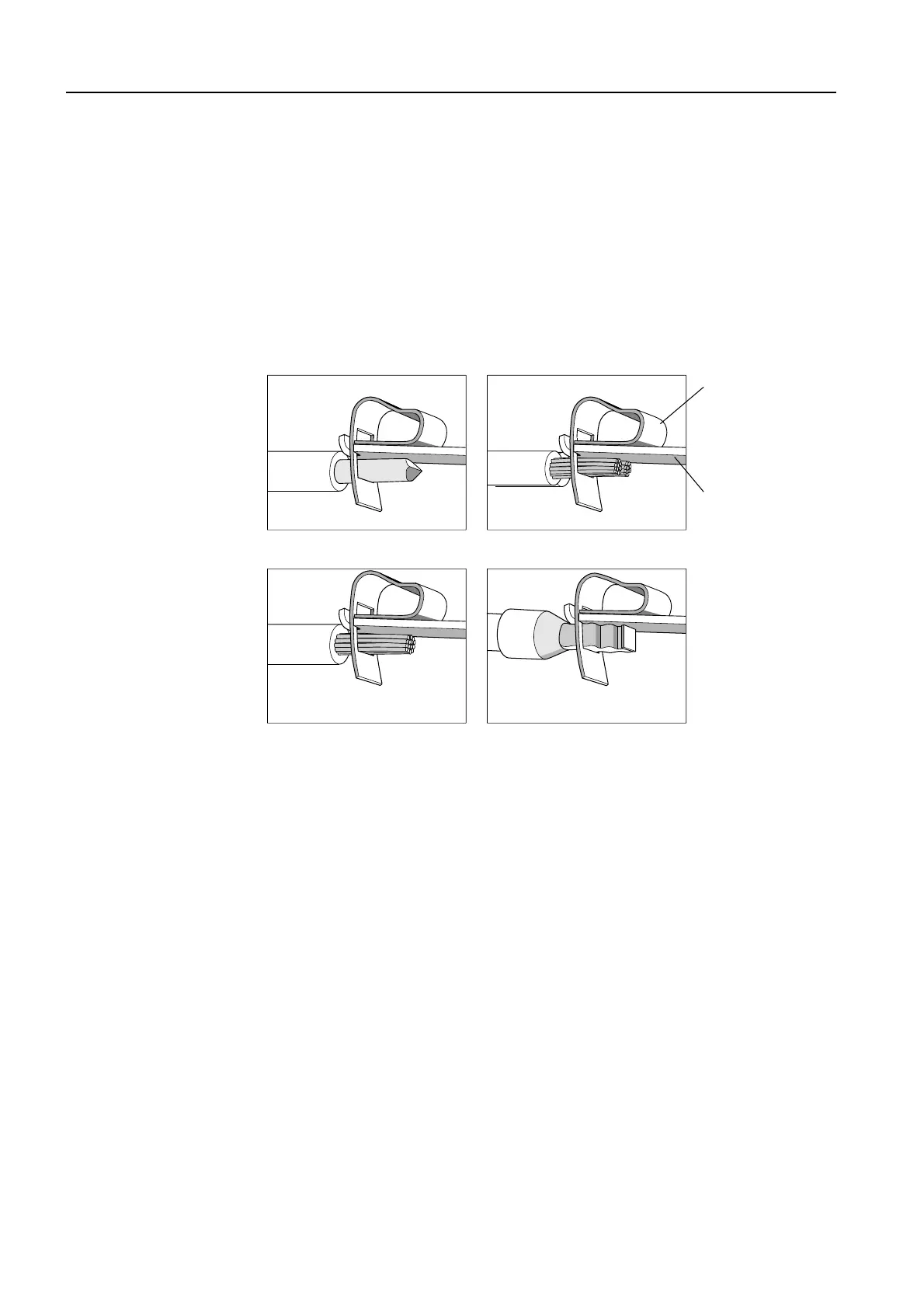

Clamp
Power rail
Single-core
Stranded
Finely stranded
Finely stranded with wire end ferrule

Siemens SIRIUS Specifications

General

Product brand name	Siemens
Series	SIRIUS
Coil Voltage	24V DC, 110V AC, 230V AC
Switching Capacity	Up to 10A
Mounting Type	DIN rail
Product designation	SIRIUS
Contact Material	Silver alloy
Contact Rating	Varies depending on the specific SIRIUS relay model (e.g., 6 A at 250 V AC, 10 A at 250 V AC)
Switching Voltage	Varies depending on the specific SIRIUS relay model (e.g., 250 V AC, 400 V AC)
Mechanical Life	Up to 10 million operations
Electrical Life	Up to 100, 000 operations
Operating Temperature	-25°C to +55°C
Protection Class	IP20
Size of relay base	Varies depending on the specific SIRIUS relay model
