3RV1 circuit breaker
SIRIUS System Manual
GWA 4NEB 430 0999-02b
2-51
Molded-plastic surface casing

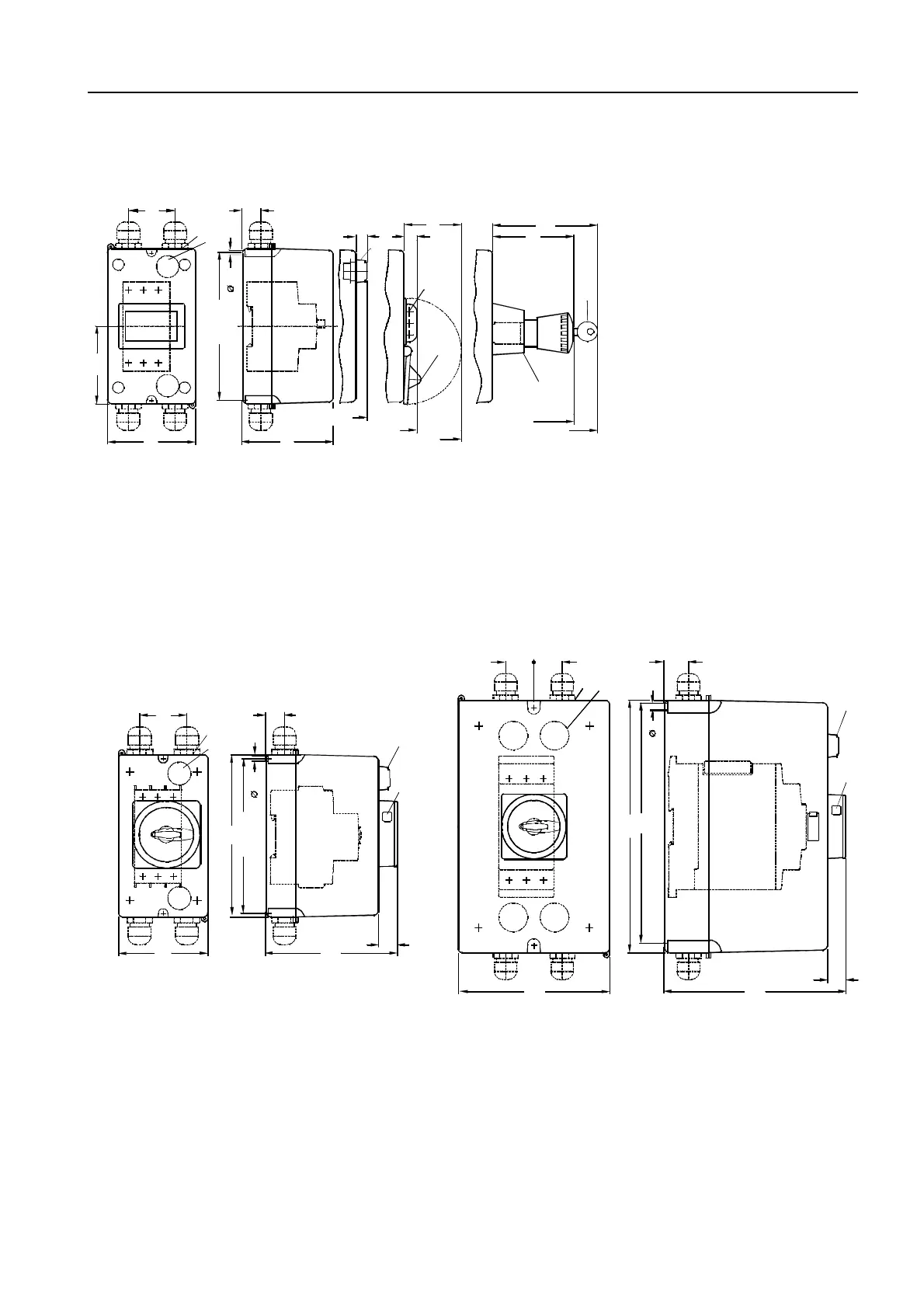

Figure 2-43: 3RV19 13-1. (for frame size S00)
a) 3RV19 13-1CA00 85 mm 3) Knockout opening for M25
3RV19 13-1DA00 105 mm 4) Knockout opening for rear M20 cable routing
b) With 3RV19 13-7D: 146.5 mm 5) With safety lock
With 3RV19 13-7E: 166.5 mm 6) Max. shackle diameter for padlock is 8 mm
The dimensions relate to the mounting surface 7) Indicator light 3RV19 03-5
c) With 3RV19 13-7D: 64 mm 8) Locking device 3RV19 13-6B
With 3RV19 13-7E: 84 mm 9) Emergency-stop button 3RV19 13-7
d) The dimensions relate to the mounting surface
Figure 2-44: 3RV19 23-1. (for frame size S0) 3RV19 33-1. (for frame size S2)
a) 3RV19 23-1CA00 85 mm 1) Knockout opening for M32 (left) and M40 (right)
3RV1923-1DA00 105 mm 2) Knockout opening for rear M32 cable entry
1) Knockout opening for M25 3) Opening for padlock with a max. shackle diameter of 8 mm
2) Knockout opening for rear M20 cable entry 4) Indicator light 3RV19 03-5.
3) Opening for padlock with a max. shackle diameter of 8 mm
4) Indicator light 3RV19 03-5.
NSB 00035c
a
)
77.5
45
19
145 - 148
4.5
88
9
)
b
)
99
b
)
100.5
b
)
143
d
)
190
b
)
c
)
105
55
13
11
7
)
3
)
4
)
6
)
8
)
5
)
150
18
181
235
250
7
25
29
32
3)
NSB 00037c
1)
2)
4)
19
45
2
)
145 - 148
4.5
155
a
)
126
18
NSB 00036c
3
)
1
)
4
)
