4010ES IDNAC Fire Alarm System Installation Guide
3.2 Operator interface
Shown is the interface for the 4010ES.
The operator interface is used to obtain fire alarm, priority 2, supervisory, trouble, and other statuses via the display and LEDs. Control
functions are accessed using dedicated and user-programmable keys.

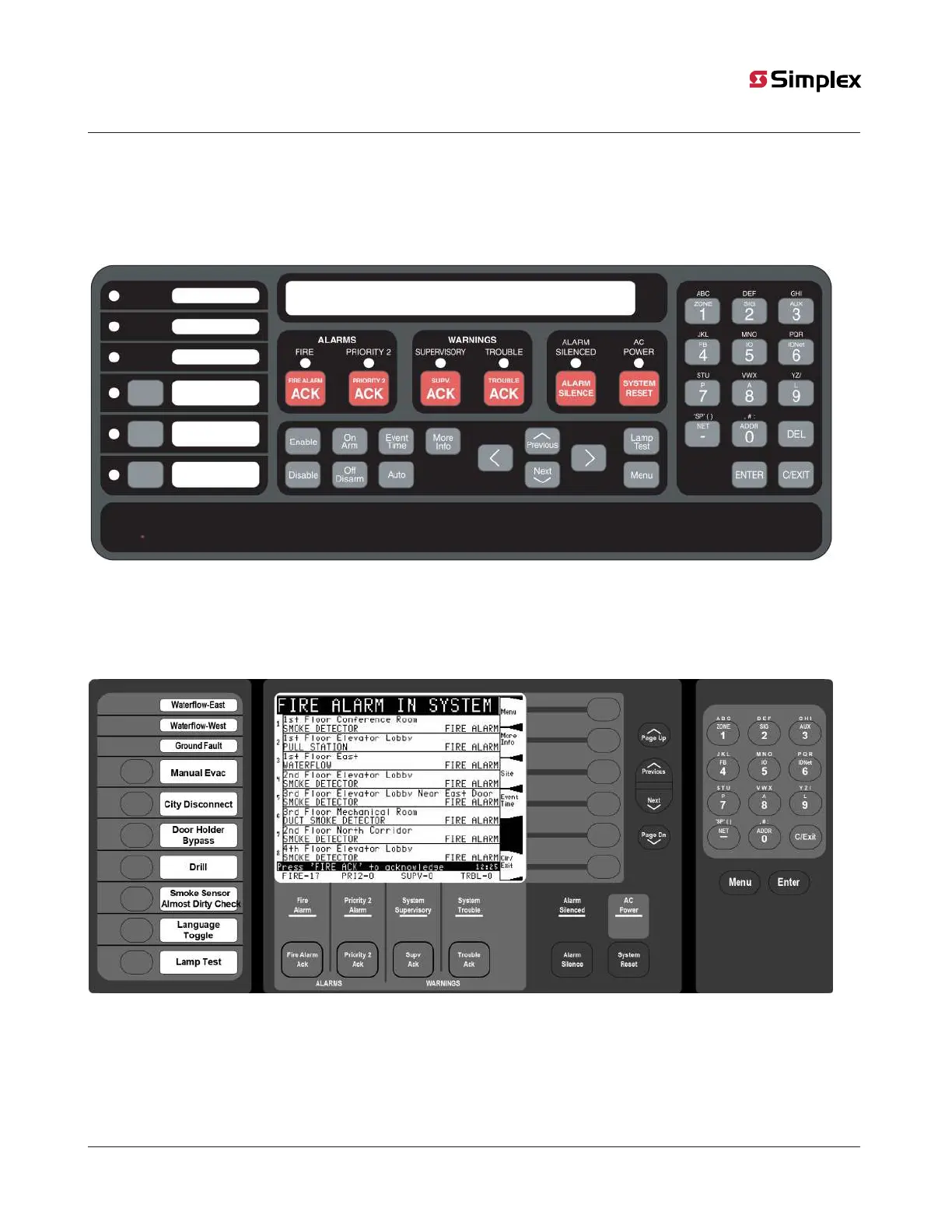

Figure 9 is the standard 2 x 40 LCD operator interface. This model includes a 2 line by 40 character liquid crystal display. The membrane is
available in both English and French.
Figure 9: Standard operator interface
Figure 10 is the InfoAlarm operator interface. This model includes a larger graphical display, which can display more information
simultaneously.
Note: The InfoAlarm operator interface can only be installed on two-bay 4010ES panels. See Panel configurations for details on two-bay
panels.
Figure 10: InfoAlarm operator interface

Simplex 4010ES IDNAC Specifications

General

Battery Backup	Yes
Maximum IDNAC Current per Circuit	2.5 A
Network	Yes
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
Event History Log	1, 000 events
Signaling Line Circuits (SLCs)	1
