page 26 579-1150 Rev M
4010ES IDNAC Fire Alarm System Installation Guide
4.1.2 Back box mechanical specifications
Back boxes come shipped with the panel and can only be ordered separately as a service part. Table 19 lists the specifications for the one-
bay back boxes.
Table 19: Back box specifications
PID number Height Width Depth Depth with door
699-467 (Platinum)
699-466 (Red)
22 in. (559 mm) 24 in. (610 mm) 6-15/16 in. (176 mm) 11-11/16 in. (297 mm)
4.2 Two-bay 4010ES Panels
A two-bay system is used when more option card space is required than is given in a one-bay system.
The basic components of the two-bay panels are the same as for the one-bay panels and are pre-installed in the top bay. The expansion
bay contains another PDI card with eight available blocks. Those can be used to connect optional modules to the 4010ES panels. The
Expansion Bay PDI card comes pre-installed inside the two-bay panel.
See Figure 18 and Figure 19 for two-bay 4010ES diagrams.

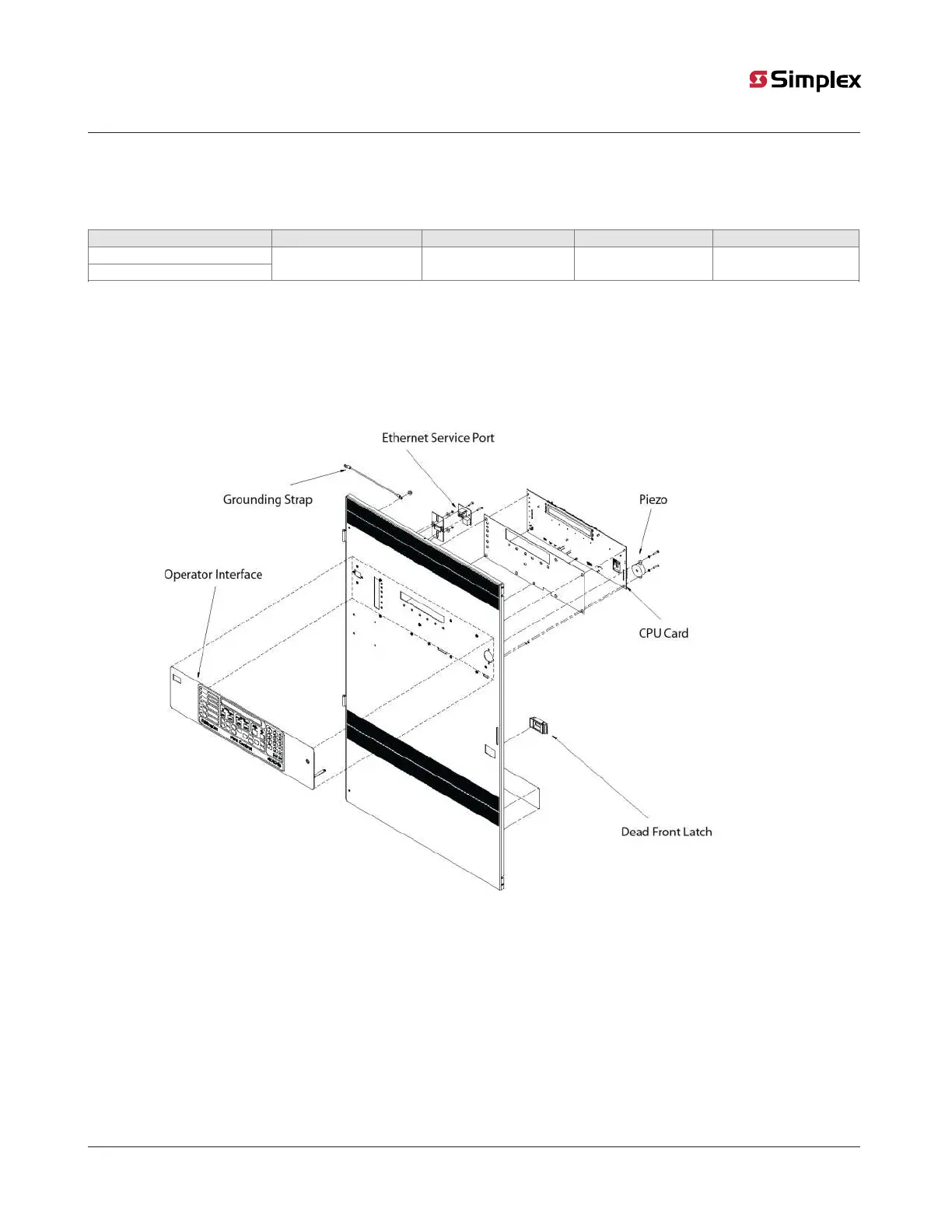

Figure 17: Two-bay standard dead front
