page 23 579-1150 Rev M

4010ES IDNAC Fire Alarm System Installation Guide

4 Panel configurations

The 4010ES comes in either in a one-bay or a two-bay configuration. Each of these can be ordered in a variety of base systems to satisfy

various market needs.

4.1 One-bay 4010ES Panels

The basic components are shipped pre-assembled inside the 4010ES panel. The optional components need to be ordered and installed

separately.

The one-bay 4010ES panel comes in multiple configurations. of lists the basic components that are shipped with each configuration.

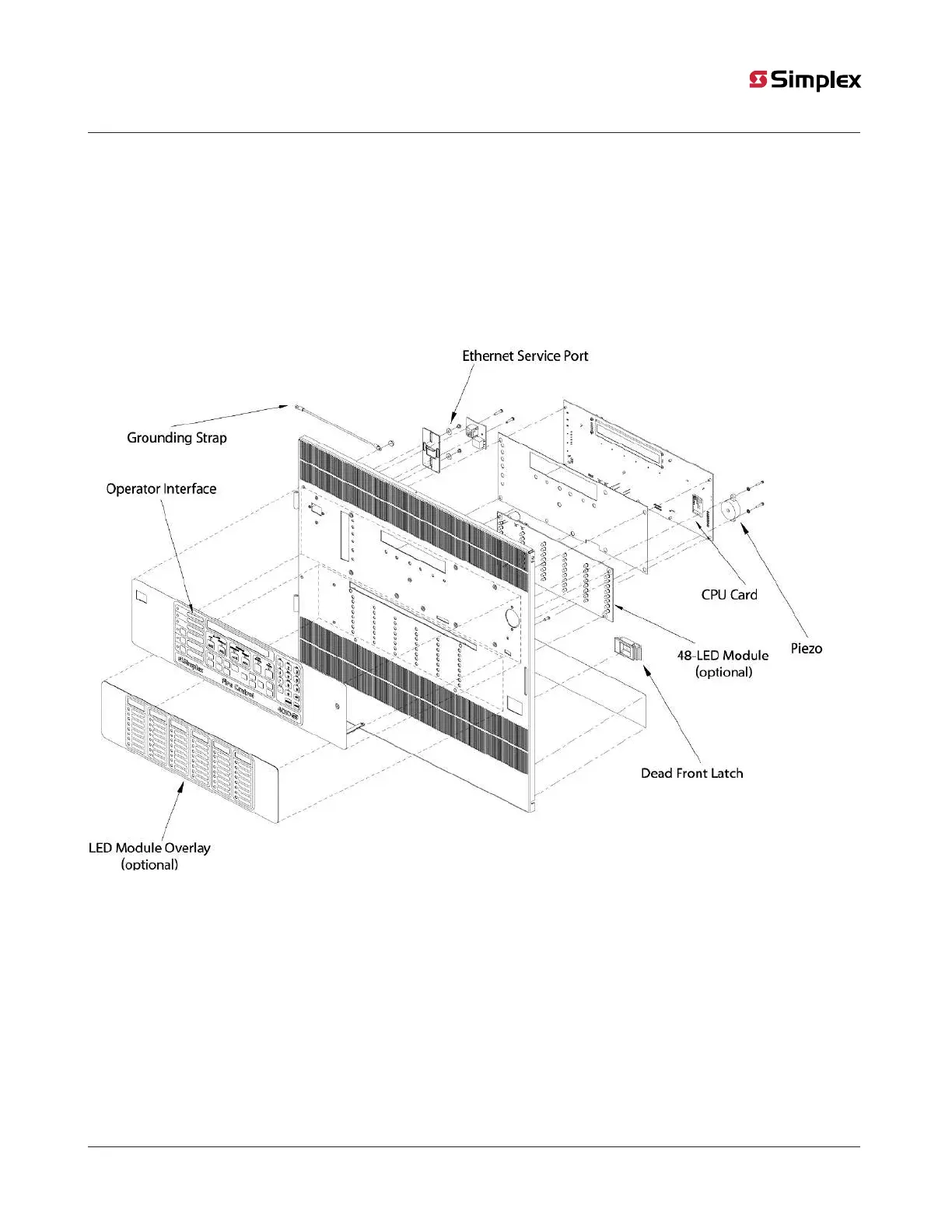

Note: The dead front on a one-bay 4010ES panel is different for 48-LED Module configurations, as seen in Figure 15. See Figure 16 for

detailed diagrams of one-bay 4010ES panels.

Figure 15: One-bay dead front with optional 48-LED Module

Questions and Answers:

Need help?

Do you have a question about the Simplex 4010ES IDNAC and is the answer not in the manual?

Simplex 4010ES IDNAC Specifications

General

Battery Backup	Yes
Maximum IDNAC Current per Circuit	2.5 A
Network	Yes
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
Event History Log	1, 000 events
Signaling Line Circuits (SLCs)	1
