page 70 579-1150 Rev M
4010ES IDNAC Fire Alarm System Installation Guide

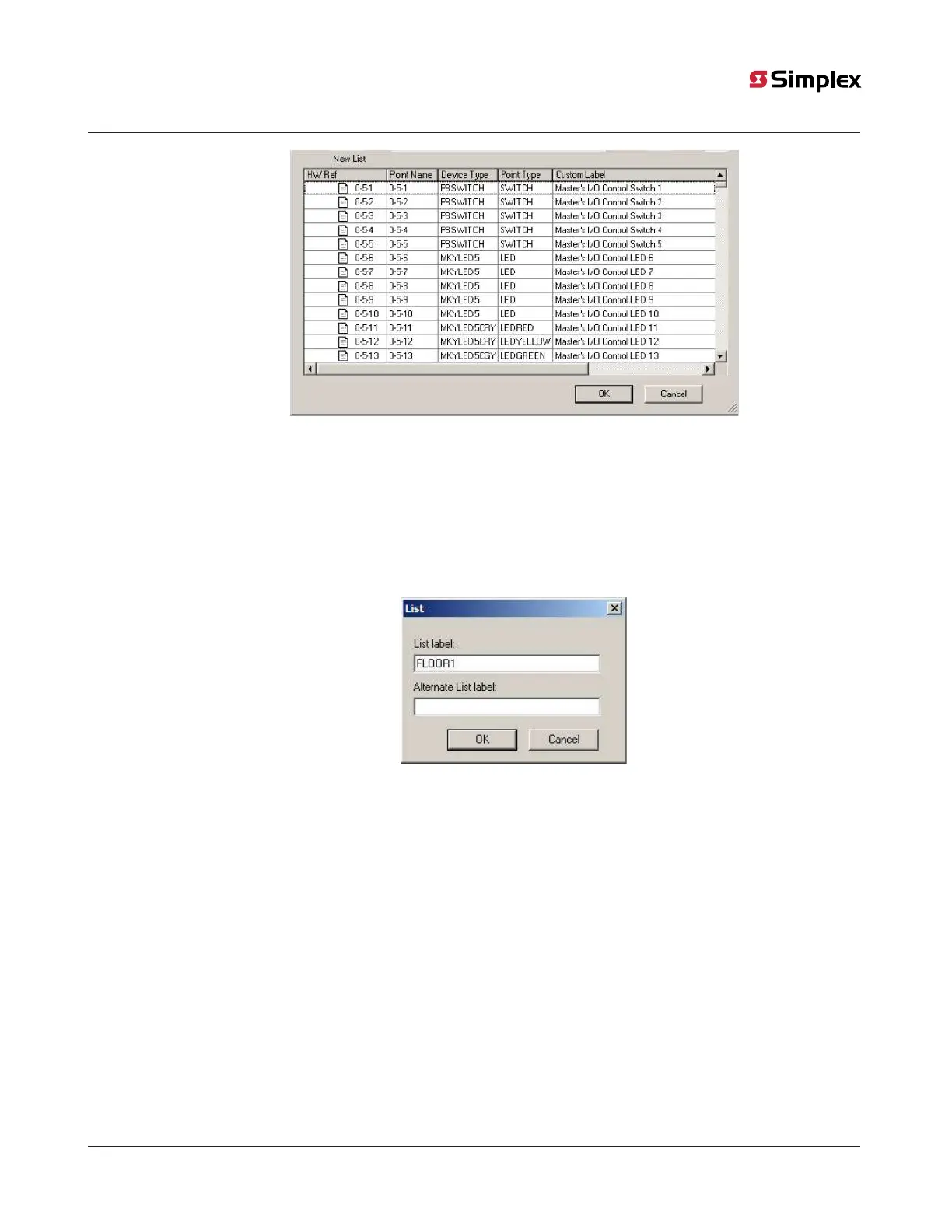

Figure 58: The TagList dialog
3. Select points for the list as follows.
a. Non-Adjacent Points. If the points required for the zone are not adjacent to one another, select the points by holding down the
CTRL key and then click the mouse cursor on each point. When all of the non-adjacent points are selected, press the space key
to select the points and add them to the zone’s list. A “>>” symbol appears to the left of each point to indicate that it is selected.
b. Range of Adjacent Points. If the points required for the zone are adjacent to one another in the tag list, highlight the first point
then hold down the shift key and use the Up or Down arrow key to highlight the points above or below the first point. When the
full range of points is highlighted, press the space key to select the points and add them to the zone’s list. A >> symbol appears
to the left of each point to indicate that it is selected.
4. Click the OK button in the TagList dialog. A labeling dialog appears, allowing you to specify the name for the list.
Figure 59: The List dialog
5. Enter a text name that uniquely identifies the zone (i.e., Floor1, Zone1, etc.). Click OK. The list is added to the List Window. Repeat
steps 1 through 5 for each annunciation zone list.
10.2.2 Programming the address and mode for each LED
This section describes associating each pair of LEDs with the correct mode and reference address.
1. Click on the Hardware tab. Locate the icon for the 48 Pluggable LED Module (Door Mount). Right-click the mouse and select
Properties. When the properties dialog for the card appears, click on the Point Editing tab. A window similar to the following
appears.
