4010ES IDNAC Fire Alarm System Installation Guide
6.1.2 Attaching the dead front
To attach the 4010ES panel dead fronts containing the operator interface and the 48-LED Module (where applicable), follow the steps
below:
1. Align the dead front hinges with the hinge pins on the back box, and slide the door down onto the hinge pins.
2. Attach the two grounding straps to the back box with the #6 hex flange nuts (Figure 24). The grounding straps should already be
attached to the dead front.

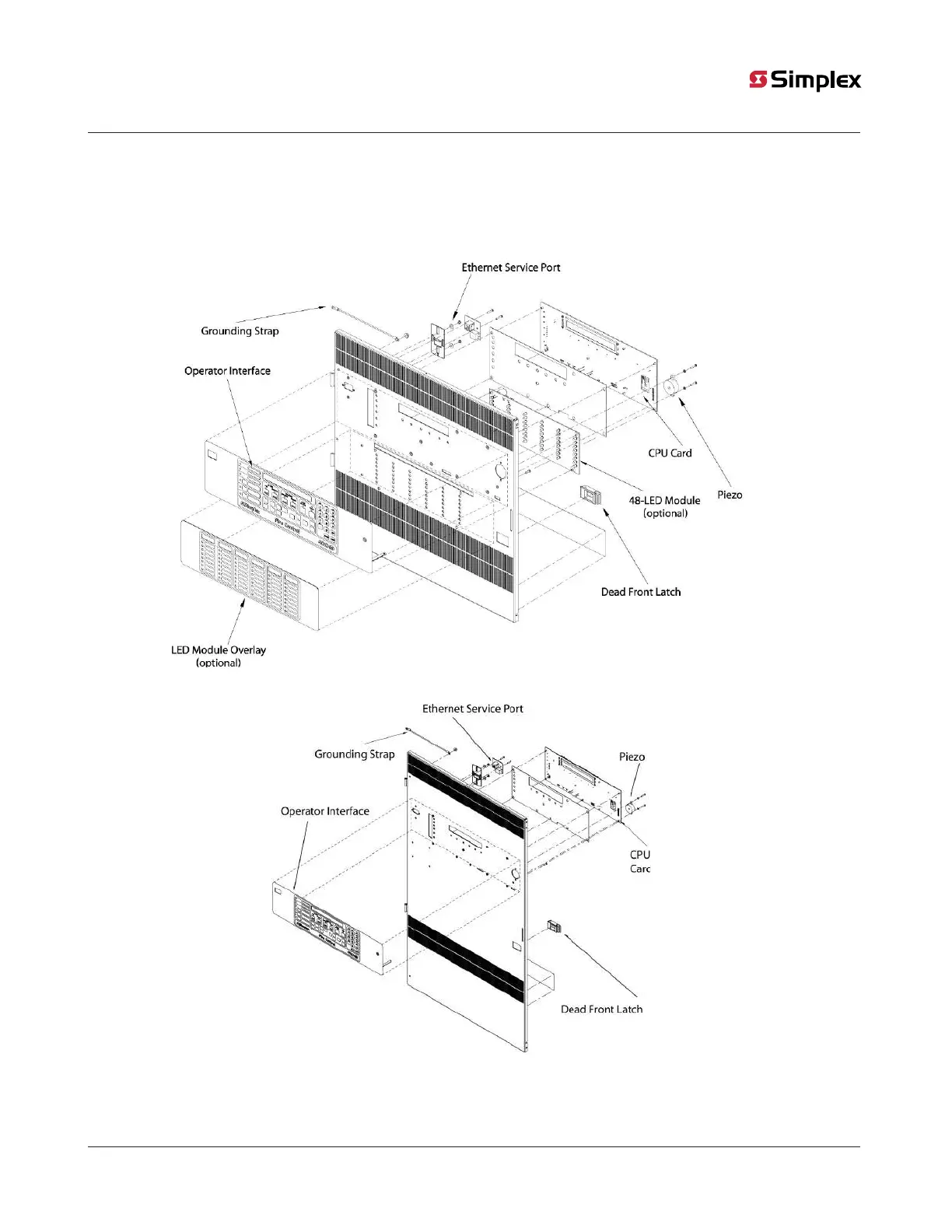

Figure 22: 4010ES 1 bay dead front
Figure 23: 4010ES 2 bay dead front
