4010ES IDNAC Fire Alarm System Installation Guide

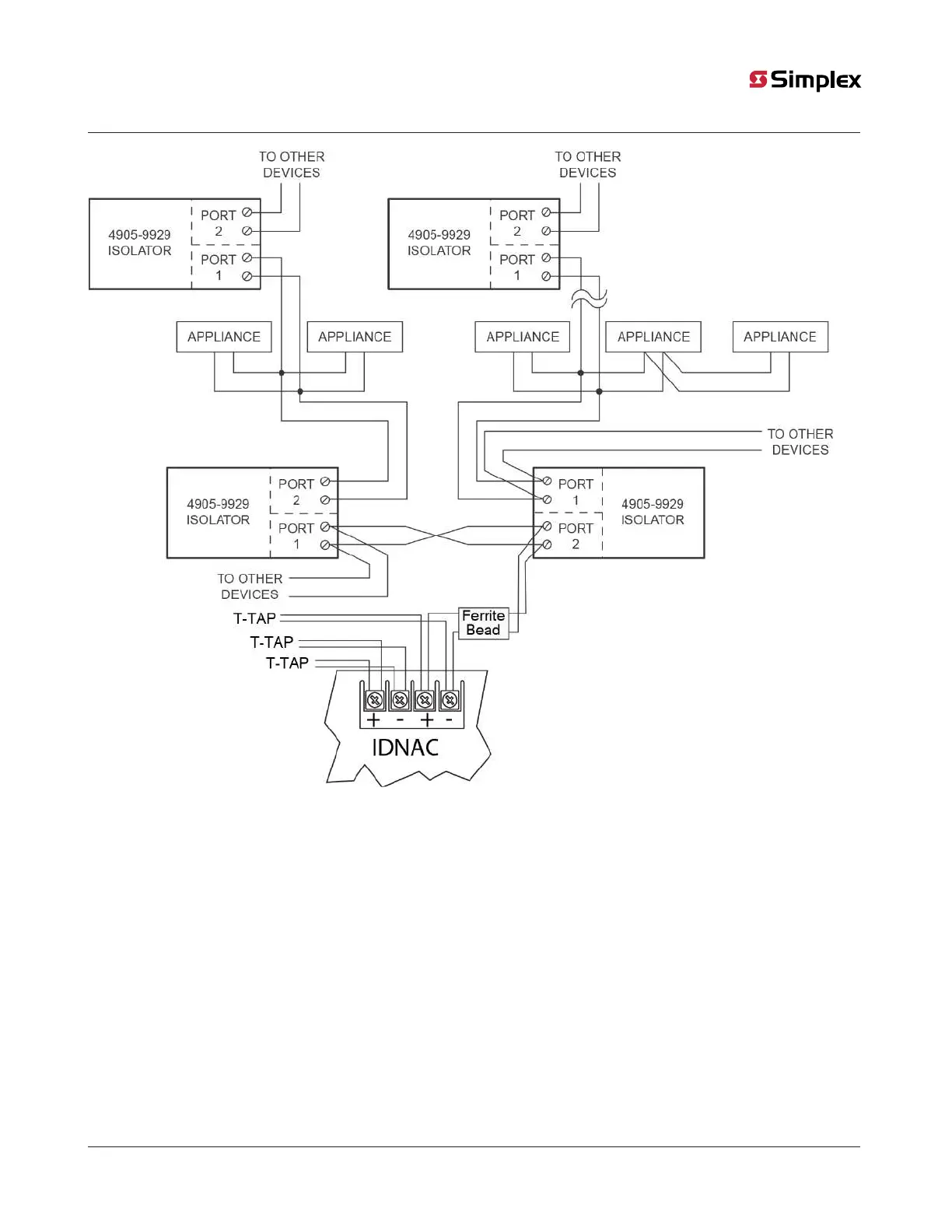

Figure 47: Class B wiring with TrueAlert addressable isolators

7.3 ESS AUX/NAC wiring

AUX/NAC terminal

The AUX/NAC terminal block is located on the upper right side of the ESS.

Through the ES Panel Programmer, this point can be configured as either a 24V Auxiliary (AUX) power (with Class B support, see note 6) or

as a Class B simple reverse polarity Notification Appliance Circuit (NAC).

Questions and Answers:

Need help?

Do you have a question about the Simplex 4010ES IDNAC and is the answer not in the manual?

General

Battery Backup	Yes
Maximum IDNAC Current per Circuit	2.5 A
Network	Yes
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
Event History Log	1, 000 events
Signaling Line Circuits (SLCs)	1
