4010ES IDNAC Fire Alarm System Installation Guide

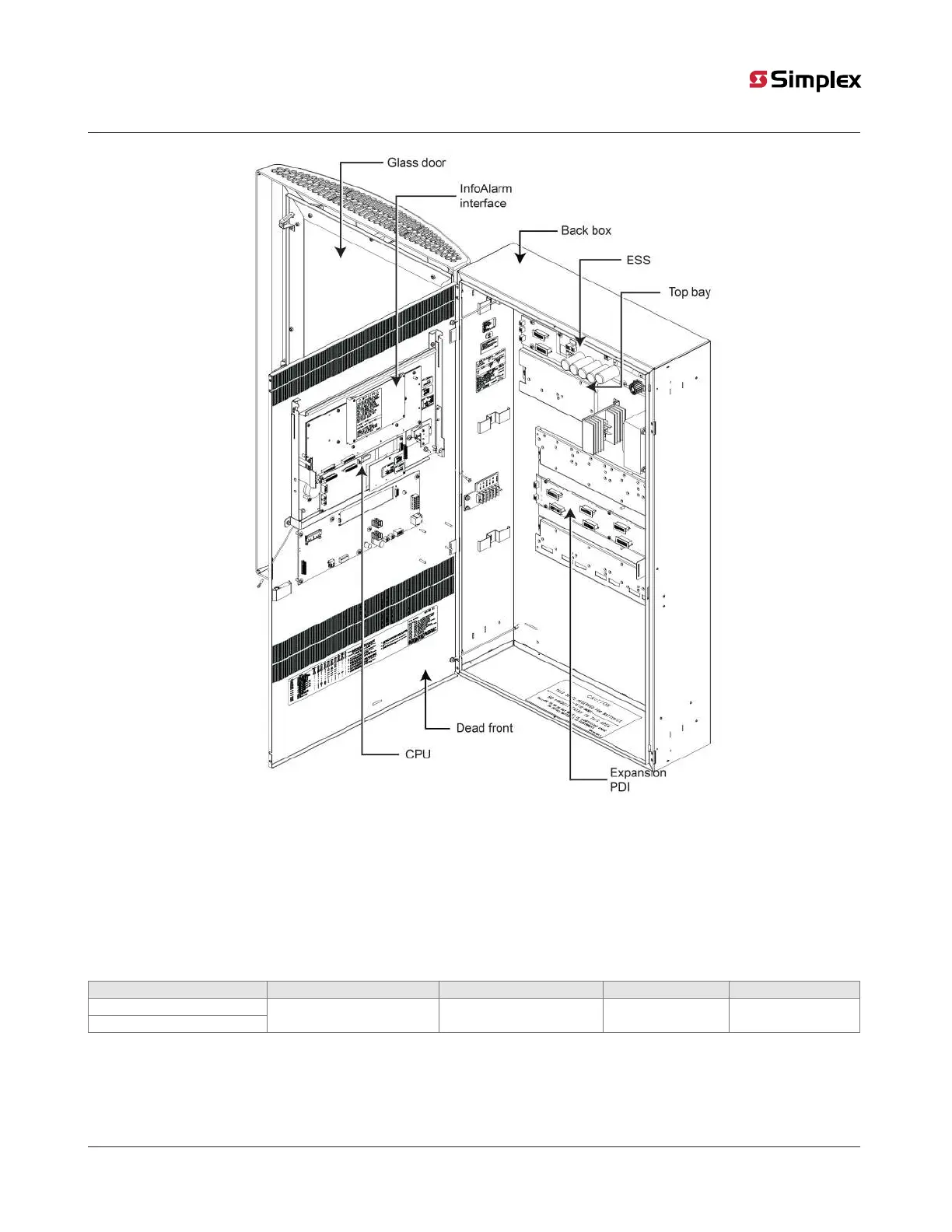

Figure 20: Two-bay 4010ES Panel with InfoAlarm interface
4.2.1 Optional modules
The same optional modules can be used with the two-bay panels as with the one-bay panels. For a complete list of optional components,
see Available panels and devices.
4.2.2 Back box mechanical specifications
Table 20 lists the specifications for the two-bay back boxes.
Table 20: Back box specifications
PID number Height Width Depth Depth with door
699-465 (Platinum)
699-464 (Red)
40.0 in. (1016 mm) 24 in. (610 mm) 6-15/16 in. (176 mm) 11-11/16 in. (297 mm)

Simplex 4010ES IDNAC Specifications

General

Battery Backup	Yes
Maximum IDNAC Current per Circuit	2.5 A
Network	Yes
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
Event History Log	1, 000 events
Signaling Line Circuits (SLCs)	1
