page 38 579-1150 Rev M
4010ES IDNAC Fire Alarm System Installation Guide
6.1.4 Attaching doors
To attach the glass doors (Figure 26) to the cabinet, follow the steps below:
1. Align the door hinges with the hinge pins on the back box, and slide the door down onto the hinge pins.
2. Attach the two grounding straps to the back box with the #6 hex flange nuts. The grounding straps should already be attached to
the door.
Note: The hinge pins for the glass door are located higher and further to the side than the dead front hinge pins.

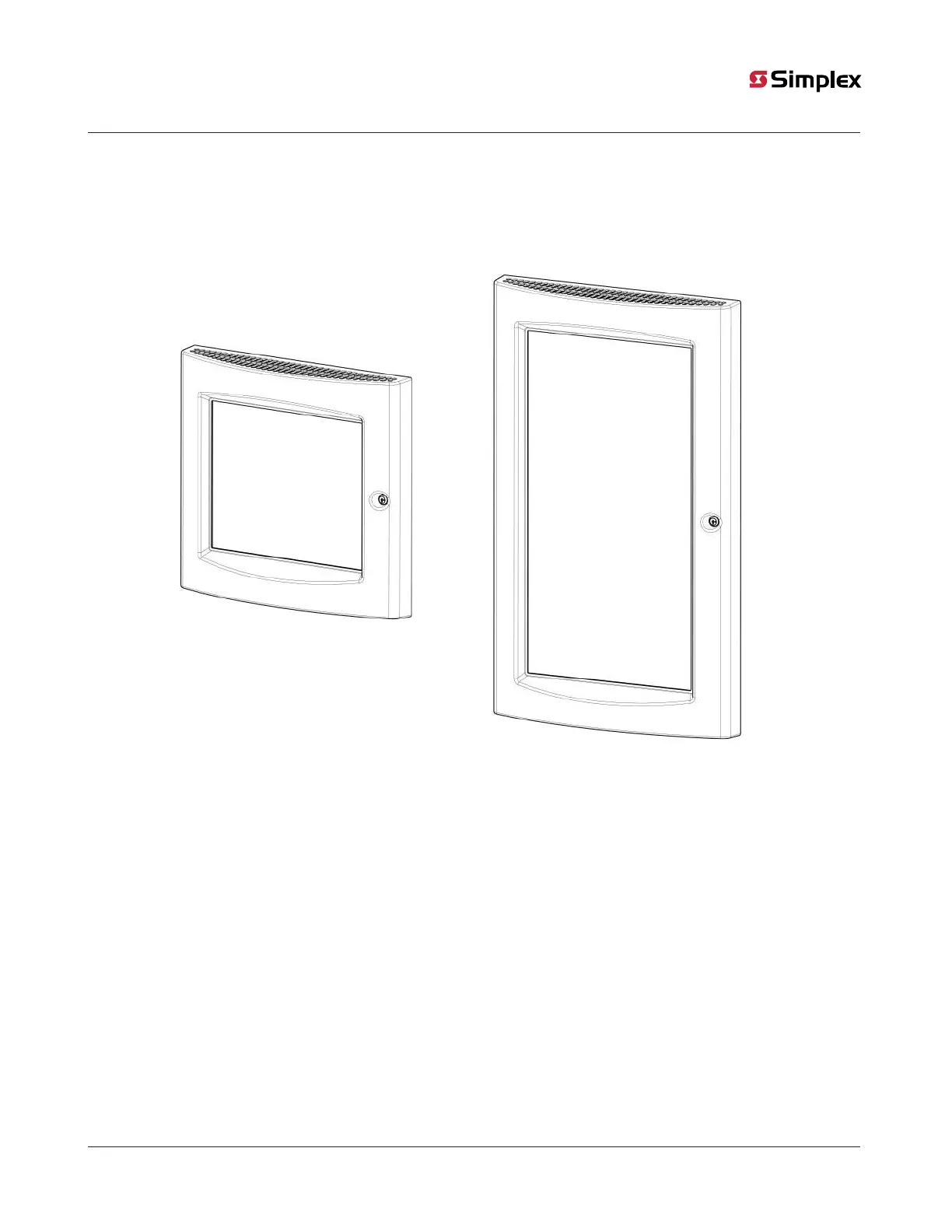

Figure 26: One-bay and Two-bay glass doors
6.2 General field wiring guidelines
Power-limited guidelines
For wiring guidelines, see the applicable installation documentation or contact your authorized Simplex Product supplier. Make sure these
guidelines are accounted for before wiring for power-limited systems:
• Non-power limited field wiring (AC power, batteries, city connection) must be installed and routed in the shaded areas shown in Figure
27.
• Power-limited field wiring must be installed and routed in the non-shaded areas shown in Figure 27, with the exception of city wiring.
• Excess slack should be kept to a minimum inside the back box enclosure. The wiring should be neatly dressed and bundled together
using wire ties.
