11 Appendix B: UL Programming Requirements
This appendix identifies key UL programming requirements for the 4010ES FACU.
11.1 Setting Alarm Verification to US operation
When you select United States operation for the alarm verification feature, the system operates as follows:
• If a point specified within one of the alarm verification lists enters an alarm state, the system delays the annunciation of the alarm
for 30 seconds. If a second initiating device or a pull station goes into the alarm state during this verification process, the panel
immediately announces the alarm.
• When the 30 second timer expires, the system attempts to reset the initiating device for five seconds.
• After the five second reset timer expires, the system evaluates the state of the initiating device for up to 120 additional seconds. If the
device re-alarms during this time, the system immediately annunciates the alarm.
11.1.1 Procedure
1. Click on the List tab to display the List window.
2. At the bottom of the List window, select the Alarm Verification tab.
3. Right-click on one of the lists and select Properties. The Alarm Verification Properties dialog shown below appears.
4. Click on the Alarm Verification tab.
5. Click on the drop down list box and select United States.
Setting this property for one alarm verification list sets it for all lists.

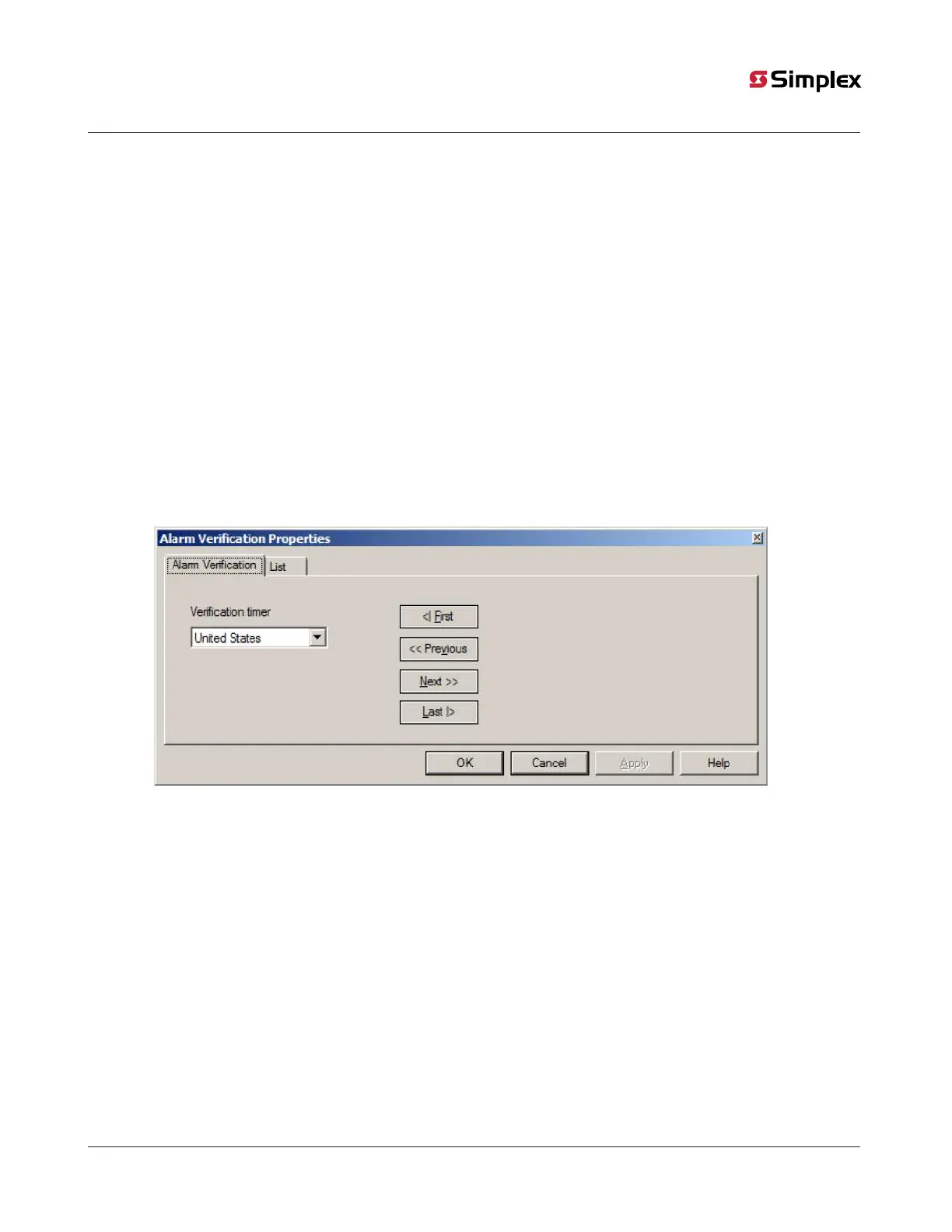

Figure 64: Alarm Verification Properties: Alarm Verification tab
11.2 Alarm Cutout Timer
The Alarm Cutout Timer allows you to set a duration (up to 10 minutes) that specifies how long signals sound following an alarm. For
example, with this option set at two minutes, building signals sound for two minutes and then automatically stop. After the signals stop,
the alarm condition remains active at the panel.
Note: The default setting is not enabled. This option can be enabled for Canadian jobs.
Notice to users, installers, authorities having jurisdiction, and other involved parties
This product incorporates field-programmable software. In order for the product to comply with the requirements in the Standard for
Control Units and Accessories for Fire Alarm Systems, UL 864, certain programming features or options must be limited to specific values
or not used at all as indicated below.
• Program feature or option: Alarm Cutout Timer
- Permitted in UL 864? (Y/N): Y
- Possible settings: 60 to 3600 sec
- Settings permitted in UL 864: not less than 180 sec
