page 21 579-1150 Rev M
4010ES IDNAC Fire Alarm System Installation Guide
3.4 48-LED Module
The 48-LED Module (Figure 13) comes pre-installed inside some base configurations of the 4010ES panel. Each LED can be associated with
a point, or group of points. By default, the module is supplied with red LEDs, except for the last column which has yellow LEDs. All of them
can be replaced by different color LEDs. Refer to Available panels and devices for a list of LED kits. Refer to Installing 4010ES systems for
instructions on replacing LEDs.

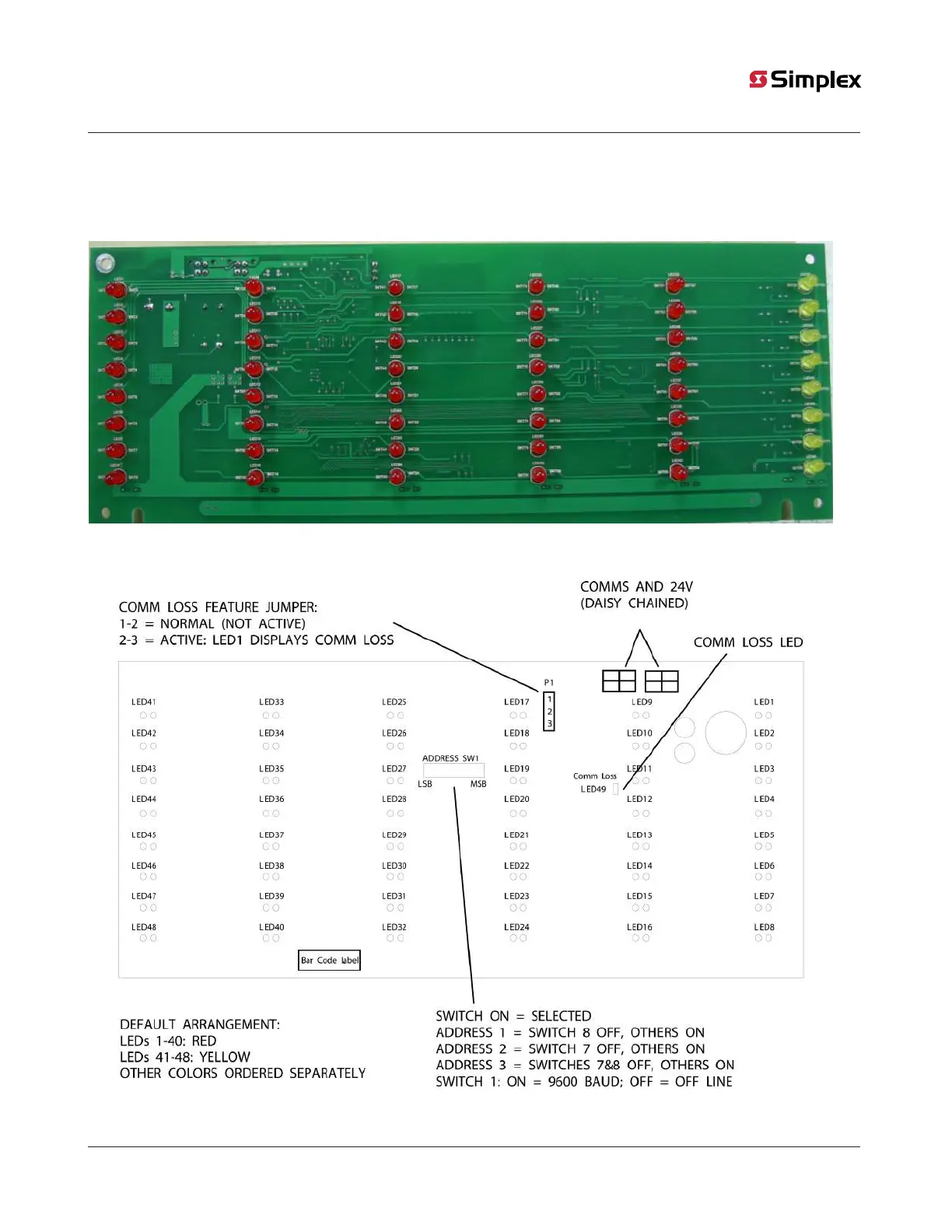

Figure 13: 48-LED Module (front view)
Figure 13 outlines what the different LEDs, jumpers and switches represent.
Figure 14: 48-LED Module LEDs, jumpers and switches (rear view)

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Simplex 4010ES IDNAC and is the answer not in the manual?

Simplex 4010ES IDNAC Specifications

General IconGeneral
Battery BackupYes
Maximum IDNAC Current per Circuit2.5 A
NetworkYes
DisplayLCD
Power Supply120/240 VAC, 50/60 Hz
Operating Temperature32°F to 120°F (0°C to 49°C)
HumidityUp to 93% RH, non-condensing
Event History Log1, 000 events
Signaling Line Circuits (SLCs)1
