Simplex 4010ES IDNAC User Manual

page 16 579-1150 Rev M
4010ES IDNAC Fire Alarm System Installation Guide
3.3 Extended system supply
The ESS is the FACU’s power source and arrives installed in the cabinet. The ESS provides the following:
• 24VDC card power
• 6A of available IDNAC SLC current
• Battery charger
Note: The 4010ES can hold a maximum of 33Ah batteries in the one-bay box
and 50Ah in the two-bay box. The ESS charger is listed for 110Ah UL and 50Ah
ULC.
• 1 AUX Relay (2A, 32V)
• 1 AUX Power / Simple NAC Tap (2A)
• 2 IDNAC Channels
• 1 IDNet 2 Channel with 2 Isolated Loops
The ESS also performs standard fire alarm functions, such as brownout
detect, battery transfer, battery recharge, earth fault detection and power
limiting per UL 864. Figure 11 and Figure 12 illustrate the 4010ES ESS.

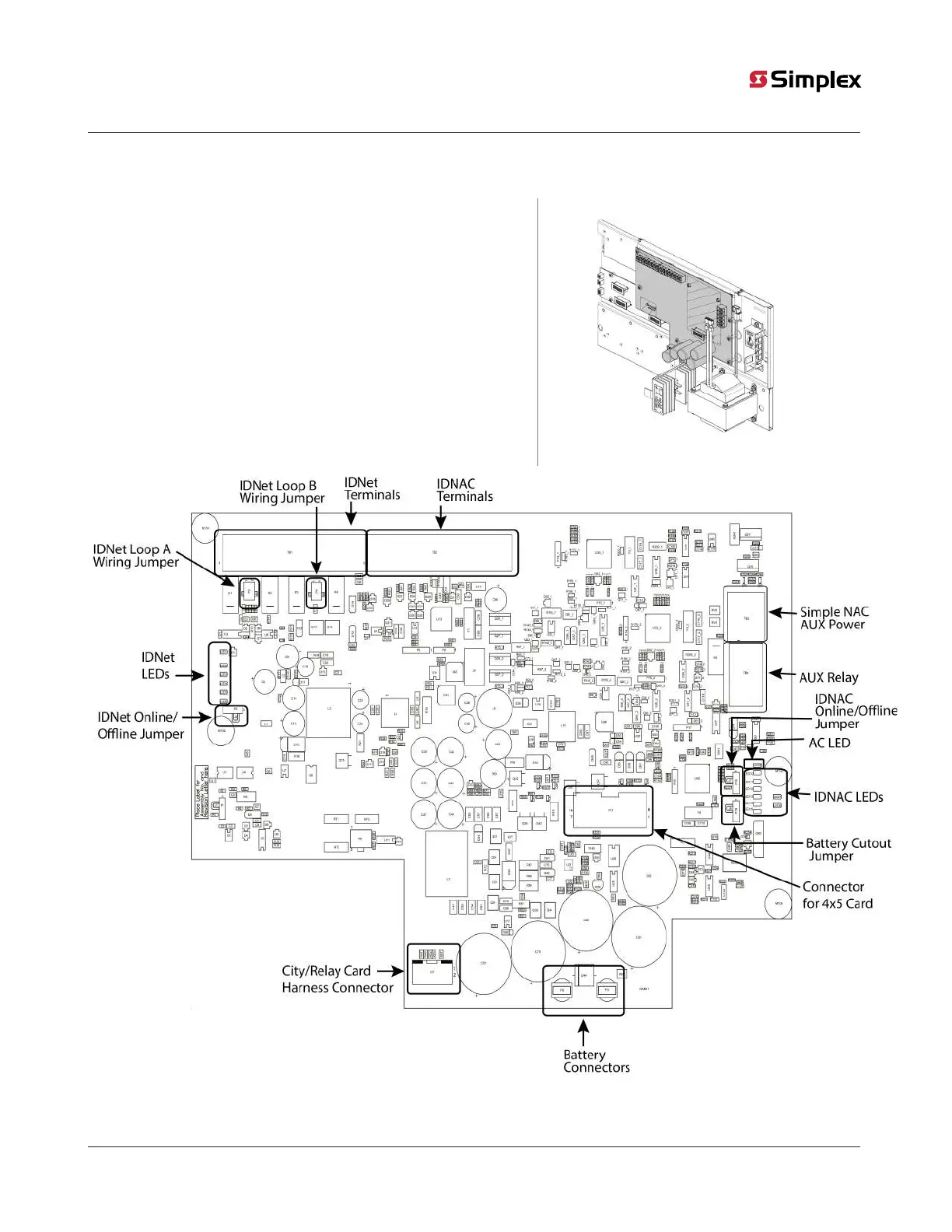

Figure 11: ESS position in a 4010ES bay
Figure 12: ESS card layout

Simplex 4010ES IDNAC Specifications

General

Battery Backup	Yes
Maximum IDNAC Current per Circuit	2.5 A
Network	Yes
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
Event History Log	1, 000 events
Signaling Line Circuits (SLCs)	1
