4010ES IDNAC Fire Alarm System Installation Guide

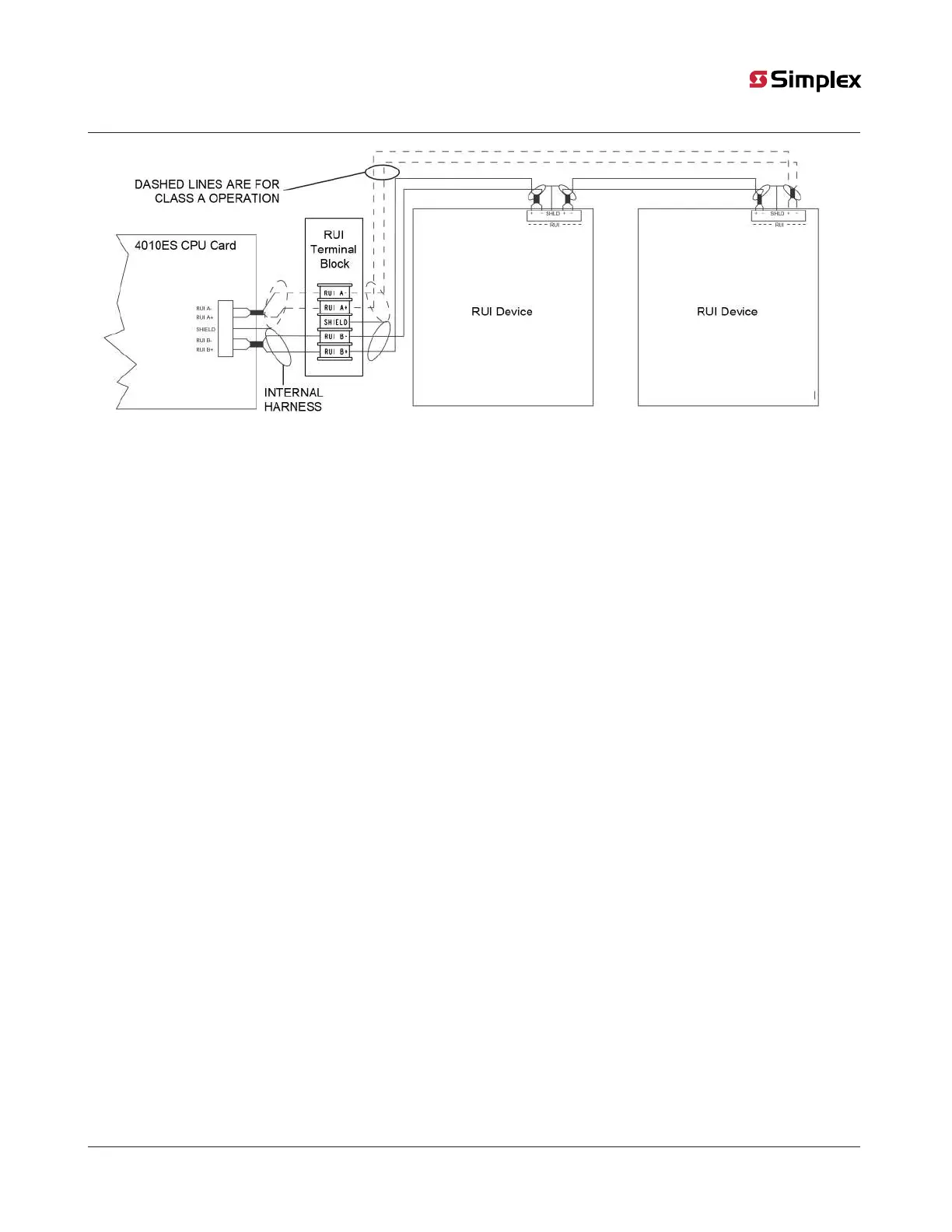

Figure 34: RUI wiring to the host panel
Note:
1.
Wire size must be between 18 AWG (0.8231 mm
2
) and 12 AWG (3.309 mm
2
).
2. Maximum wiring distance: 2,500 feet (762 m) to device from CPU card.
3. Maximum “T” tapping length: 10,000 feet (3,048 m).
4. Maintain correct polarity on terminal connections. Do not loop wires under terminals.
5. If Class A is not used, leave loop back wires from A+ to B+ and A- to B- on RUI terminal blocks.
6. Shield wire is not required. Twisted wire is recommended for improved noise immunity.
7. Internal harness part numbers: 0734-241 (1 bay), 0734-243 (2 bay).
For more detailed field wiring information on each device, refer to its specific installation instructions manual. See Available panels and
devices, for a list of instructions manuals.

Simplex 4010ES IDNAC Specifications

General

Battery Backup	Yes
Maximum IDNAC Current per Circuit	2.5 A
Network	Yes
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
Event History Log	1, 000 events
Signaling Line Circuits (SLCs)	1
