4010ES IDNAC Fire Alarm System Installation Guide

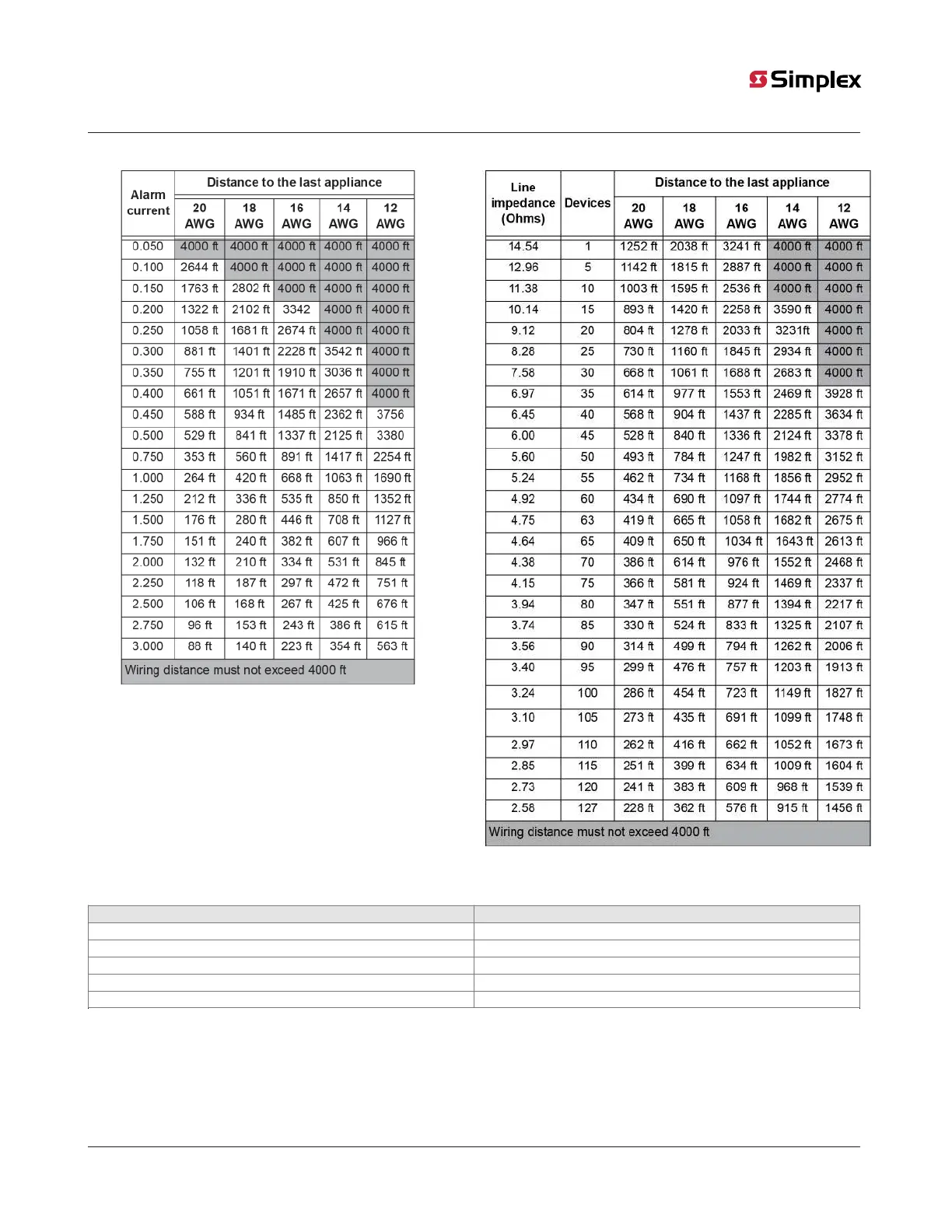

Figure 44: UTP wiring limit based on alarm current

Figure 45: UTP wiring limit based on communication

Table 31: Ohms per 1000 ft

Gage Ohms/1000 ft

20 AWG 11.347

18 AWG 7.137

16 AWG 4.488

14 AWG 2.8230

12 AWG 1.7750

Questions and Answers:

Need help?

Do you have a question about the Simplex 4010ES IDNAC and is the answer not in the manual?

General

Battery Backup	Yes
Maximum IDNAC Current per Circuit	2.5 A
Network	Yes
Display	LCD
Power Supply	120/240 VAC, 50/60 Hz
Operating Temperature	32°F to 120°F (0°C to 49°C)
Humidity	Up to 93% RH, non-condensing
Event History Log	1, 000 events
Signaling Line Circuits (SLCs)	1
