3-12

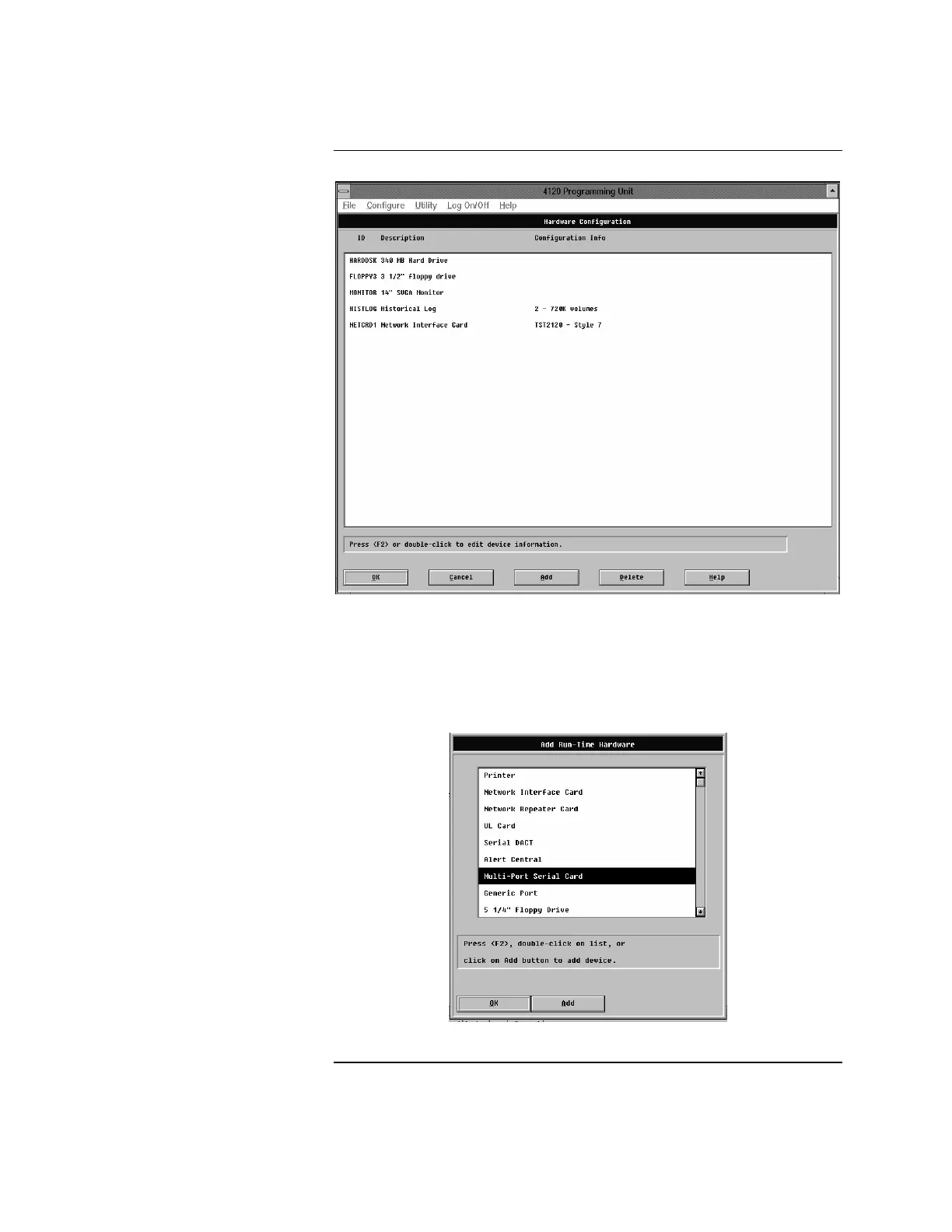

Figure 3-2. 4120 Programmer Hardware Configuration Screen
3. Check the current hardware settings. To change a specific hardware setting,
highlight the setting with your mouse and double click or use the Up and
Down arrow keys to highlight the setting you wish to change and press F2.
The system displays the Add Run-Time Hardware dialog shown in Figure 3-3.
Figure 3-3. Add Run-Time Hardware Dialog
Continued on next page
Configuring the Computer Ports, Continued
Port Configuration Procedure
(Continued)
