Configuration and setup
20221560E 111
Rudder
sets the rudder gain which is the ratio between the
commanded angle and the heading error.
− Too little Rudder and the autopilot fail to keep a steady
course.
− Too much Rudder gives unstable steering and reduces speed.
− Low speed requires more rudder than high speed.
Note ! See also “Minimum Rudder” on page 101.
Counter Rudder
is the parameter that counteracts the effect of
the boats turn rate and inertia. For a short time period it is
superimposed on the proportional rudder response as provided
by the heading error. It may sometimes appear as if it tends to
make the rudder move to the wrong side (counter rudder).
The best way of checking the value of the Counter Rudder

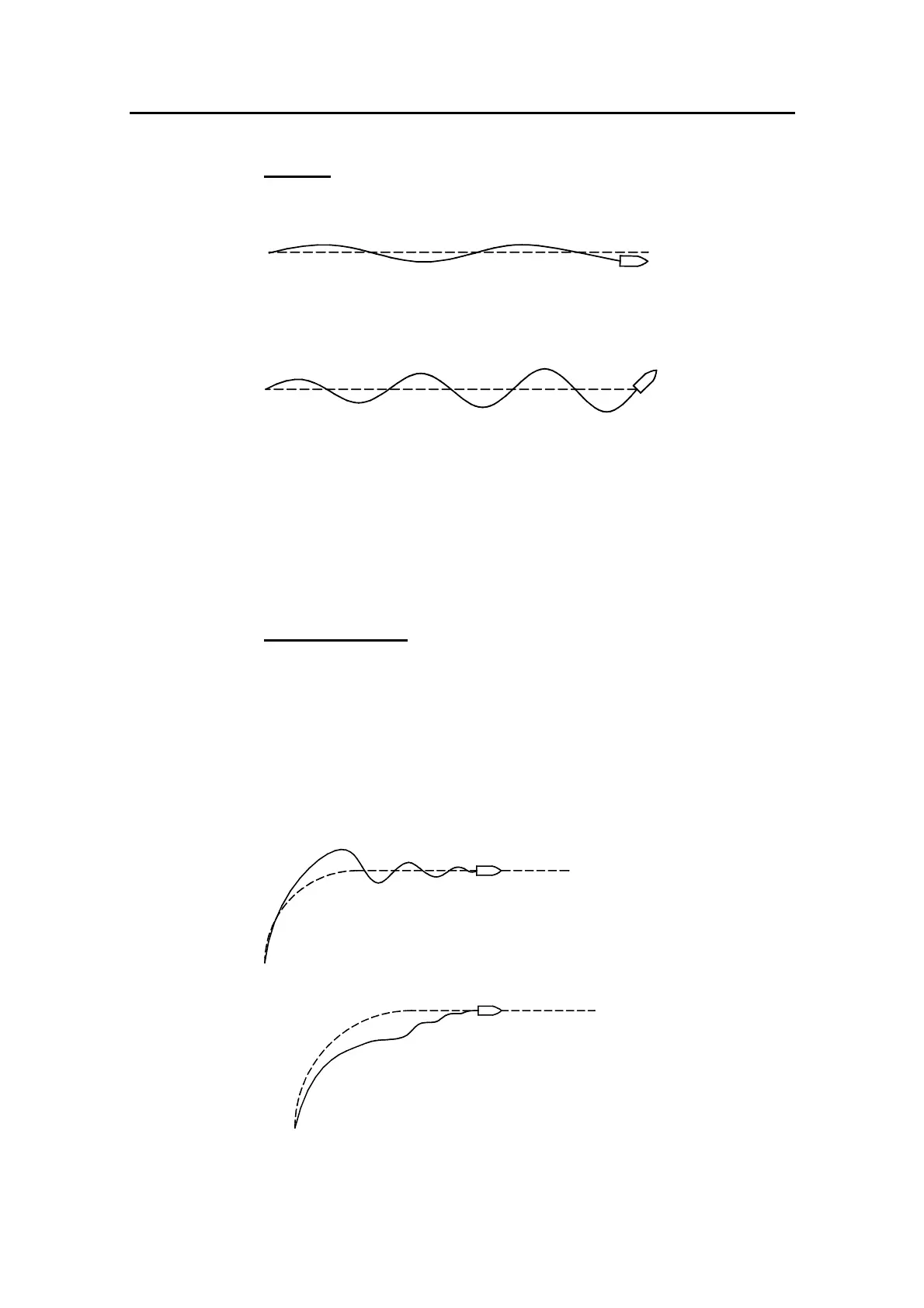

setting is when making turns. The figures illustrate the effects off
various Counter Rudder settings.
Too little Rudde
New course
Too much Rudder
Course to steer
Course to steer
Counter rudder setting too
low, overshoot response
New course
Counter rudder setting too high,
sluggish and creeping response
