Simrad AP16 User Manual

Installation
20221560E 55
Notes!
1. On boats powered by outboards or stern drives it may be
difficult to install a rudder feedback unit (chapter 3.6 and
3.27). Use of the Virtual feedback algorithms in the software
may then be preferred as this requires no installation of a
rudder feedback unit (page 95). The Virtual Feedback can
be used on boats up to 40 ft.
2. In order to benefit from the virtual feedback technology your
autopilot system must be using a Simrad rate compass for
heading information.
3.5 AP16 System Layout
STBY
PWR
AUTO
SPEED
SETUP
NAV
TURN
SIMRAD R3000X
STBY AUTO
11
TURN
INFO
NAV
WIN D
SETUP
DODGE
AUTO
STBY
PWR
10
10
AUTO
WI ND
INFO
SETUP
STBY
PWR
DODGE
TURN
1
NAV
10
1
10

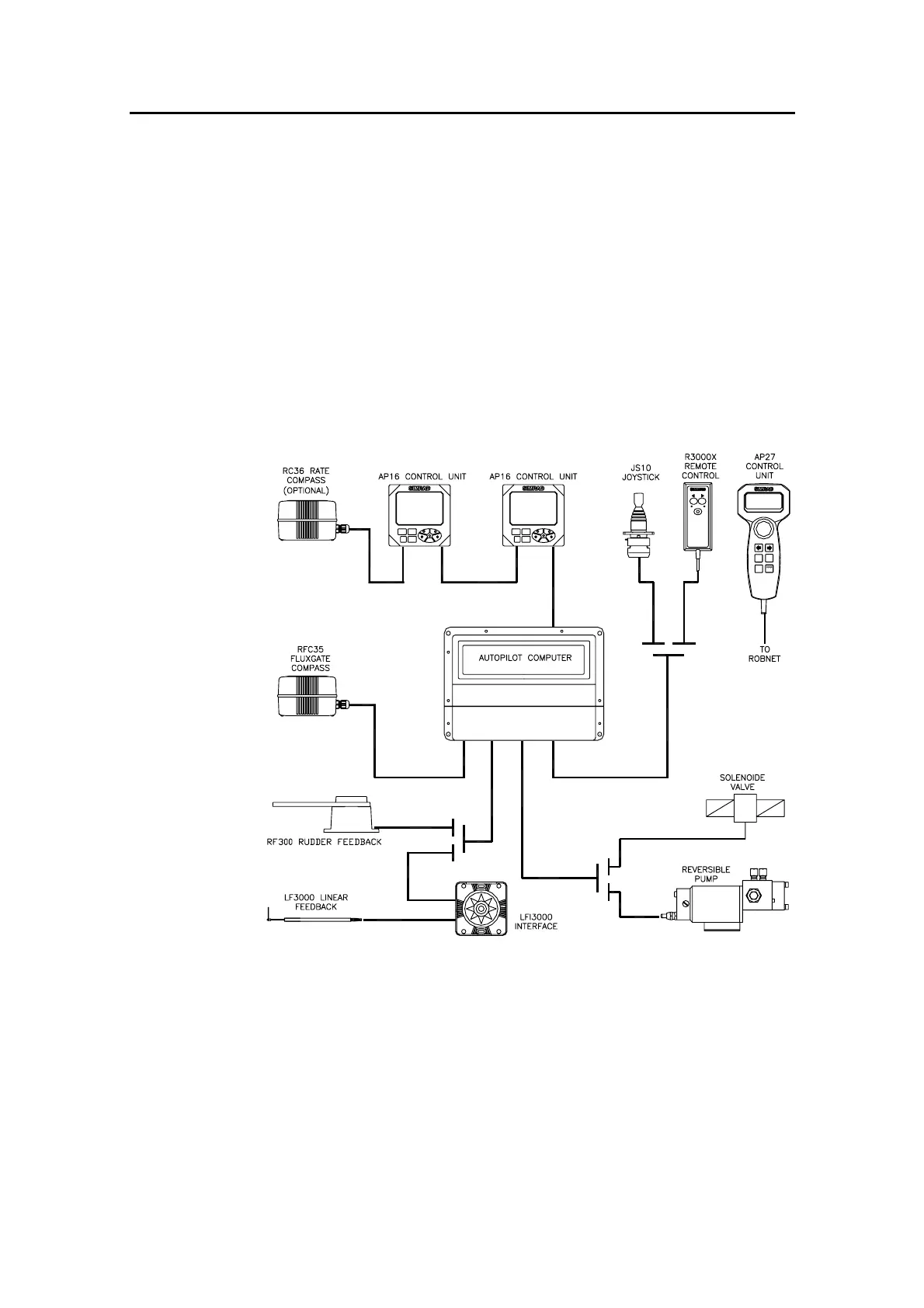

Figure 3-1 AP16 system layout with options
3.6 RF300 Rudder feedback installation
The RF300 Rudder feedback unit mounts close to the rudder,
and is mechanically linked to the rudder tiller arm or rudder
quadrant.
Refer to Figure 3-2 for the recommended mounting arrangement.
Note that the RF300 transmitter arm has two slots for the
