Operation
20221560E 17
After approximately 5 seconds, the system is operative and the
unit that was turned on will show the Standby mode display.
Other units in a multistation system will display "Inactive"
and/or
depending on model. Control is transferred to any
single unit by pressing its’ STBY button.
A long press (2-3 sec.) on the STBY button switches the system
OFF and during this time, the alarm will sound.
Note ! In an emergency, it is possible, on a multistation system, to turn
OFF the system at any control unit by pressing the STBY button
for 2-3 seconds.
STBY mode is the mode that is used when steering the boat at
the helm.

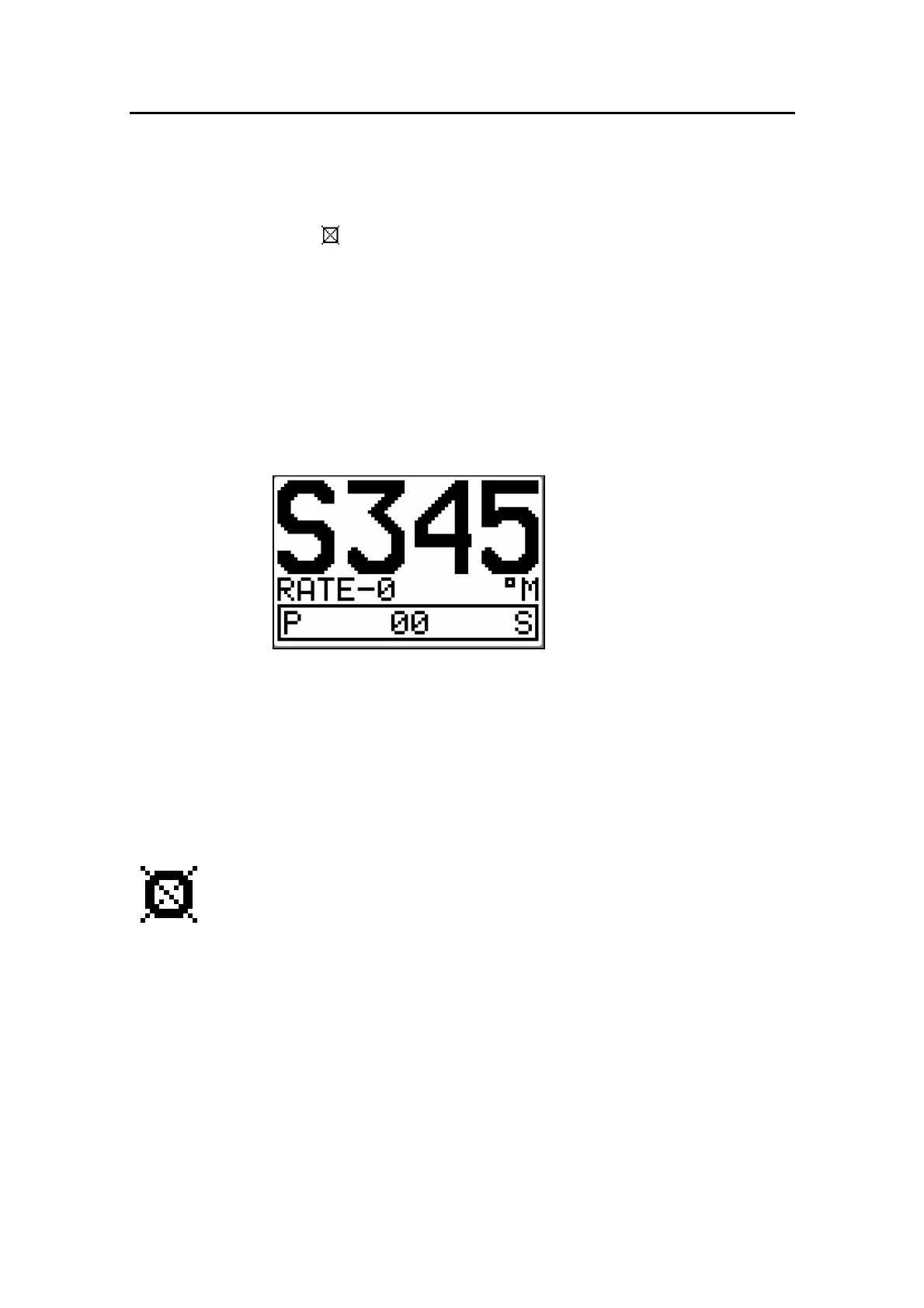

Display information:
− Standby mode
− Current heading 345°M
− Compass source: Rate
compass
− Rudder angle 00°.
Note ! When the autopilot operates on Virtual feedback, the numerical
indication of the rudder angle is omitted.
Virtual feedback
See pages 55 and 95 about Virtual feedback.
Flashing course knob icon
When the PORT and STBD buttons are is used for settings
etc., an icon will flash on the screen to tell that no course
changes can be made unless you press the AUTO button.
Alarms
In the event there is an audible alarm with explaining text on the
control unit, refer to section 6 Trouble shooting.
