Simrad AP16 Autopilot
142 20221560E

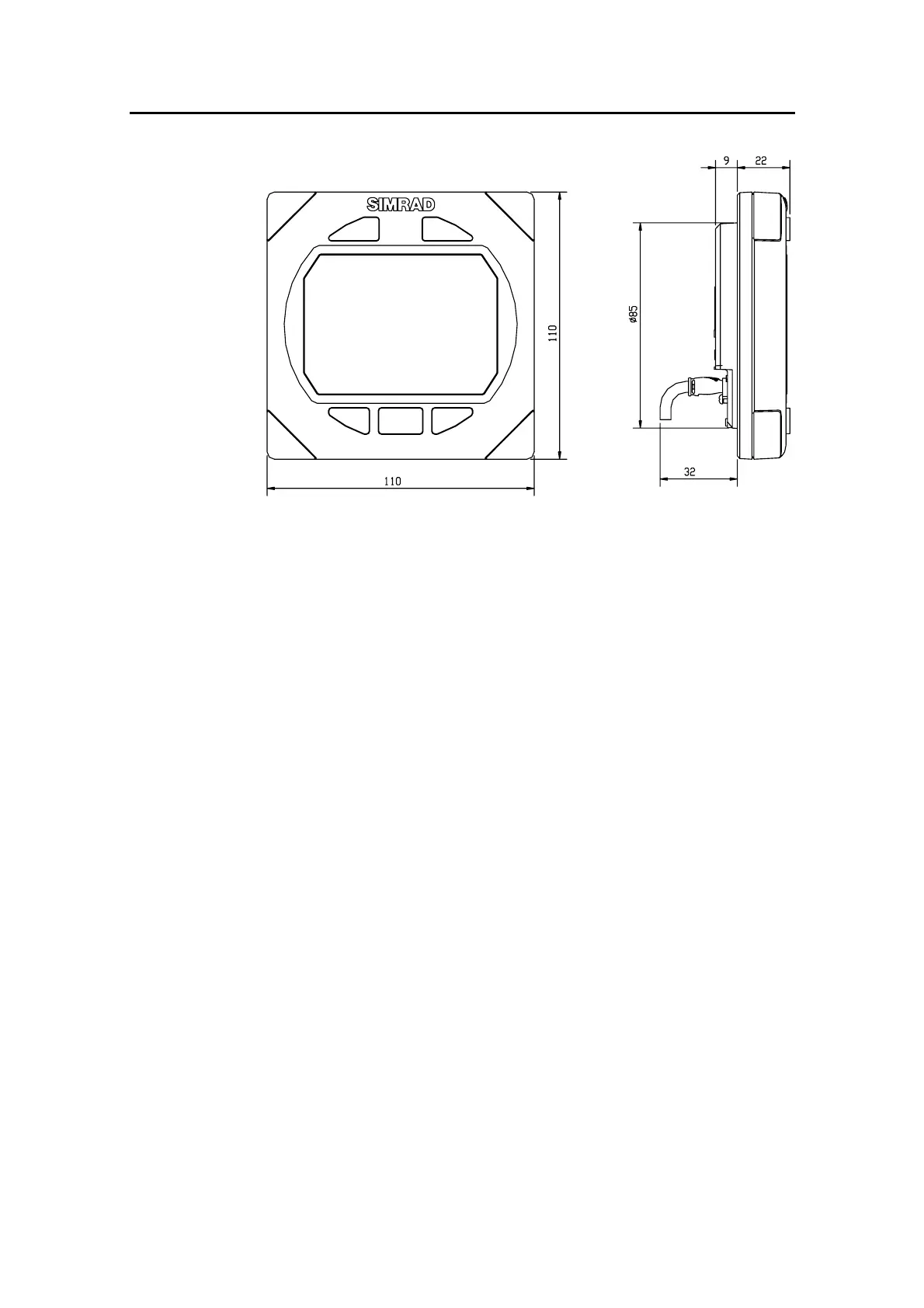

Figure 8-9 IS15 Rudder - Dimensions
8.10 SimNet
Maximum number of products connected in a network:......................................50
Maximum cable length:............. .........................................................120 m (400’)
Bit rate of the bus: ..................... ....................................................250 Kbit/second
Maximum DC current through a single SimNet plug .........................................5A
SimNet power supply:............... ................................................................. 12VDC
Maximum drop cable length:..... ...............................................................6 m (20’)
Maximum total length of all drop cables (accumulated):......................60 m (200’)
Environmental protection: Cable and plug/connector system.......................... IP66
Temperature:.............................. ........................................................70°C (158°F)
