Simrad AP16 Autopilot
30 20221560E

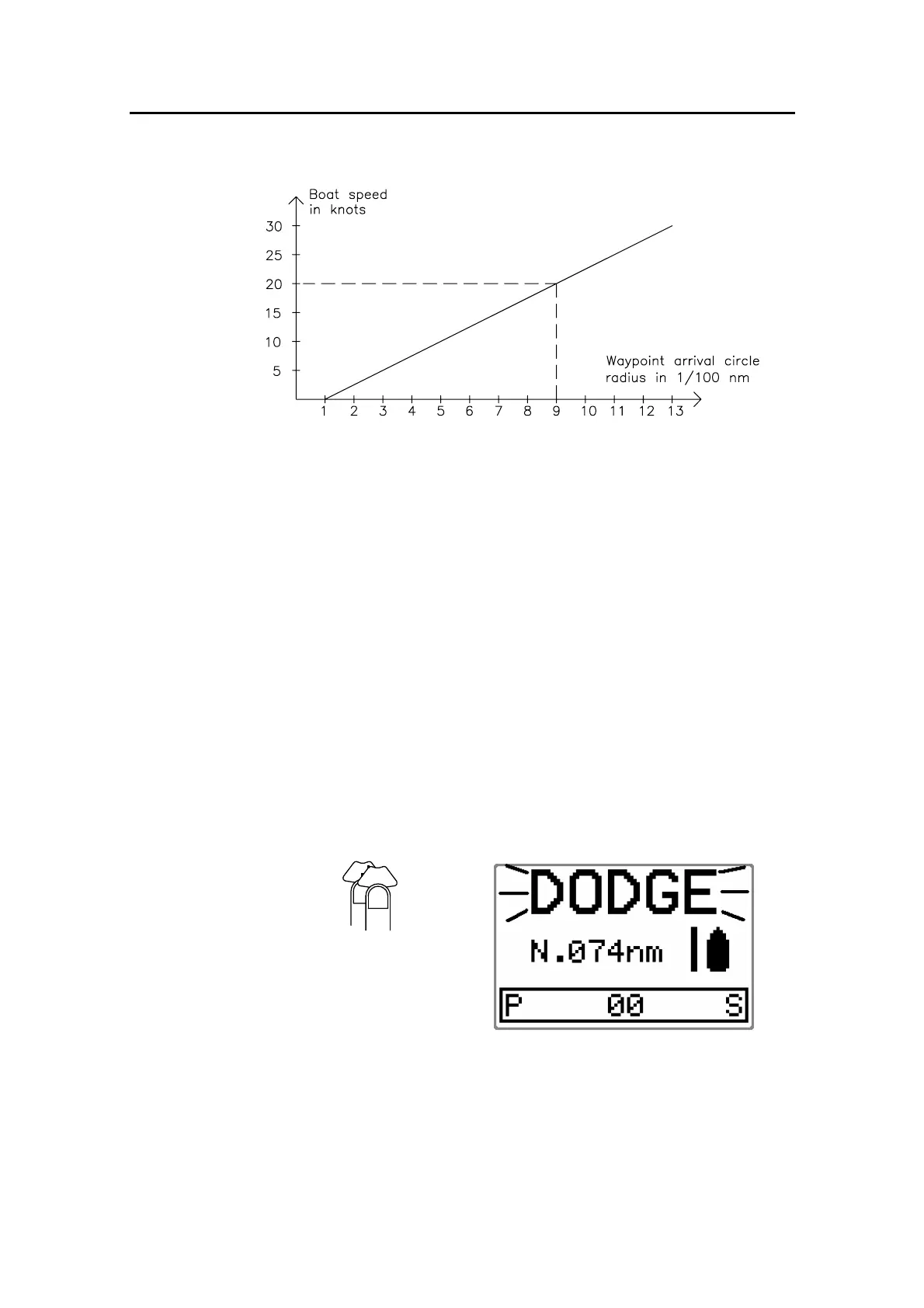

Example: With the speed of 20 knots you should use a waypoint
circle with radius 0.09 nm.
Note ! The distance between any waypoints in a route must not be
smaller than the radius of the waypoint arrival circle when using
automatic waypoint shift.
2.15 Dodge in NAV
The previous set course is stored by the AP16. When DODGE is
flashing on the display, the AP16 is no longer in control of the
steering and you must either steer the boat manually or take
control using the Non-Follow-up steering. On manual steering,
the clutch (or bypass valve) in the drive unit will be disengaged
when dodging. The AP16 will remain in the DODGE mode until
you exit DODGE by a second press on the TURN/DODGE
button or until you select another mode.
DO
TUR
TURN
DODGE
Quick double press on
TURN/DODGE
to activate Dodge mode
Perform dodging the same way as in AUTO mode above.
To return from Dodge mode, press one of the following:
