Simrad AP16 User Manual

Simrad AP16 Autopilot
116 20221560E
Proceed to the SimNet Setup menu by pressing the STBD 1
button, or press STBY to return to normal AP16 operation.

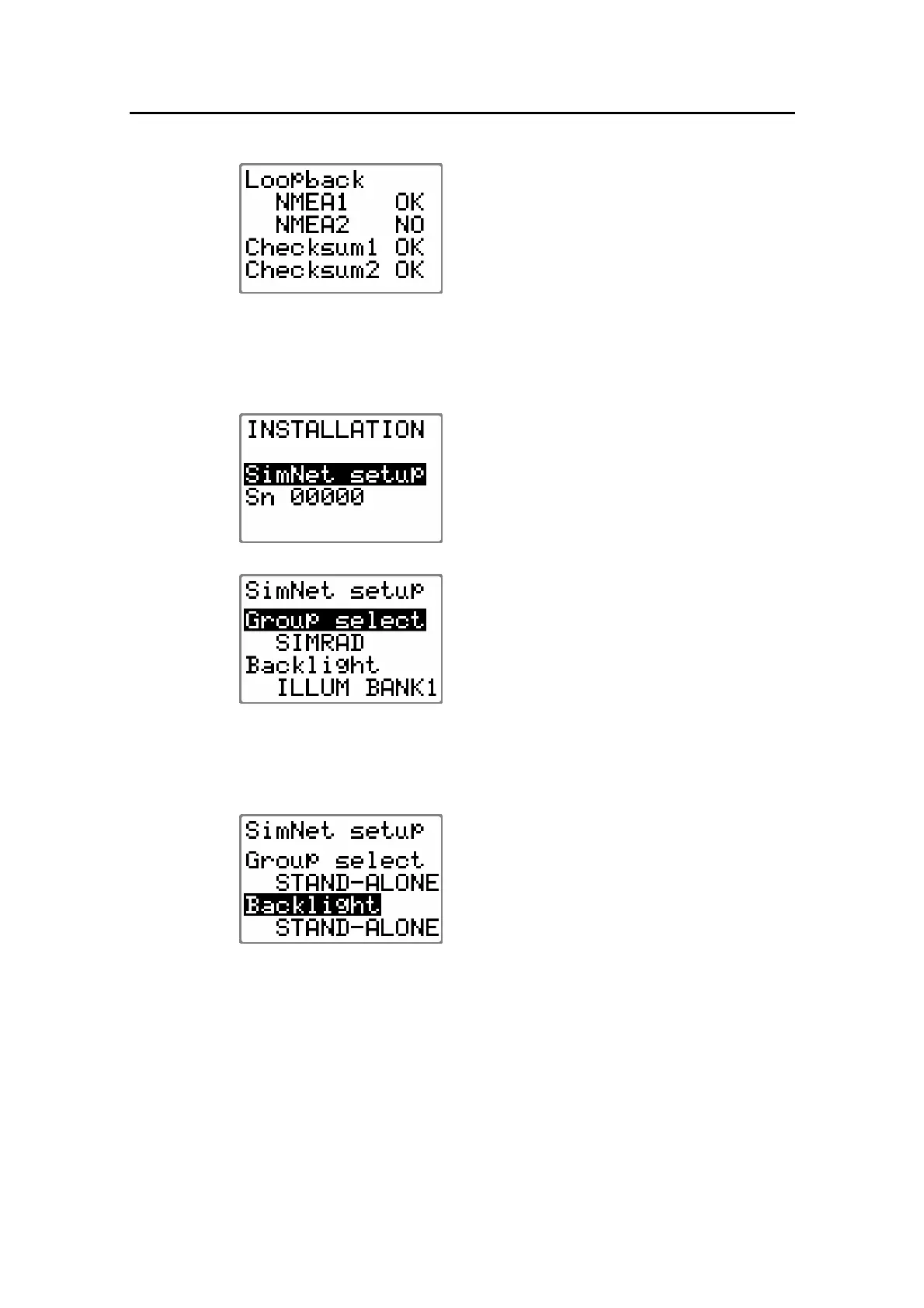

SimNet setup
Select the SimNet setup menu by
pressing the STBD 1 button and confirm
this by pressing the STBD 10 button.
Sn 00000 is the unique SimNet ID
number for the specific autopilot control
unit.
Group selection
SIMRAD: Autopilot is part of the
Simrad Group. Source selection will be
common for the products in the group
(synchronized).
STAND ALONE: Source selection for
the autopilot will not be transferred to
other products in the Simrad Group (no
synchronization).
Backlight Illumination
Set backlight to synchronize with one of
the illumination banks (1-3) available on
the SimNet, or to STAND ALONE for
individual control of the autopilot
illumination.
Instance number
An item to identify units by a number
when the autopilot is connected to a
NMEA2000 Network. On SimNet units
the Instance number is added to the
product name e.g. AP16-1, AP16-2 for
easy identification on various display
screens.
