Installation
20221560E 65
− Apply the front panel corners.
− Use the two locking knobs to assemble the cradle with the
left and right brackets and adjust the control head to best
viewing angle.
− Connect the Robnet2 cable(s) to the control unit
connector(s).

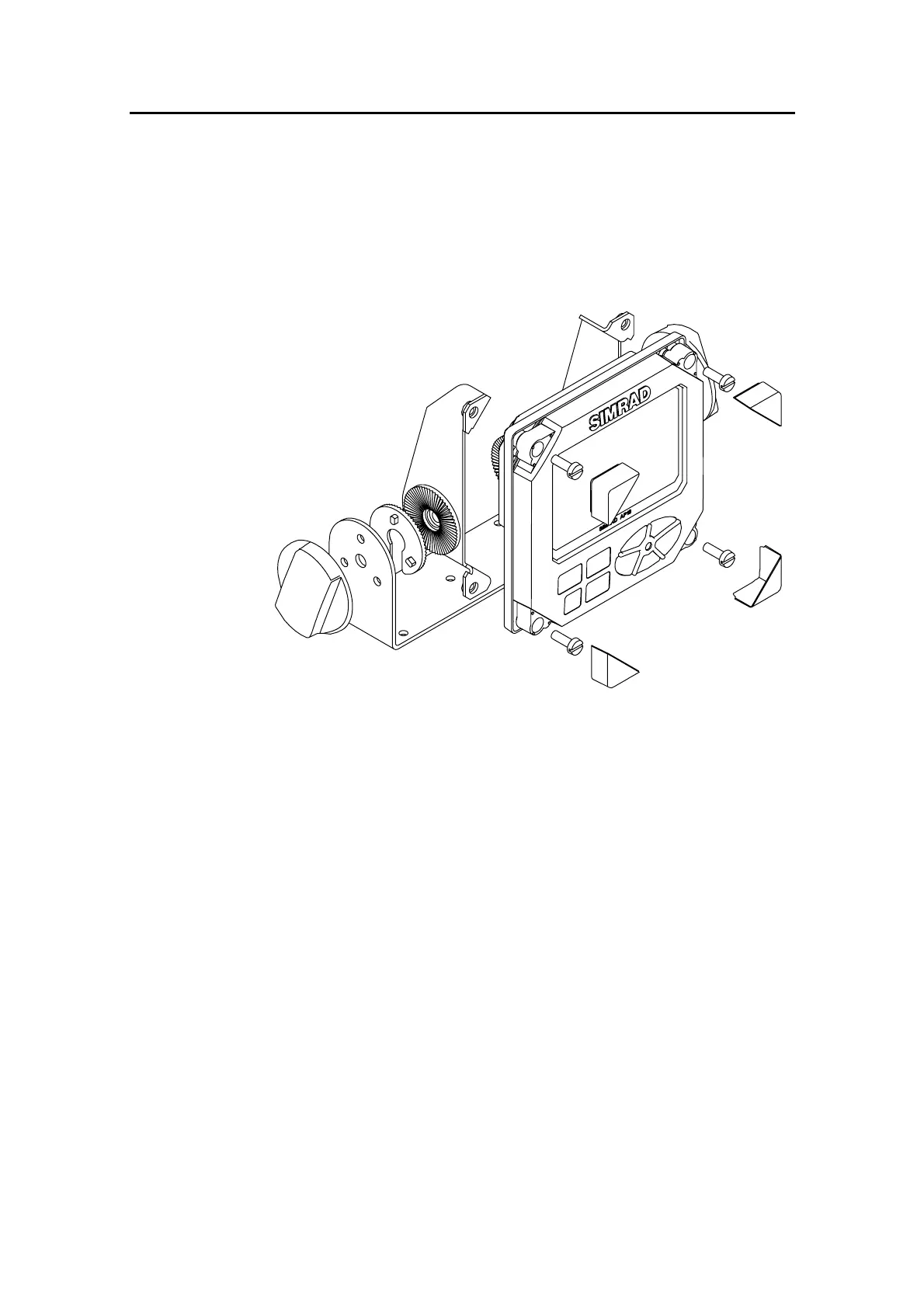

Figure 3-8 AP16 Bracket mounting
3.12 ROBNET2 network cables
As Robnet units have two Robnet2 connectors (blue) they can be
used as "jack points" for further expansion of the system. There
are no dedicated "in" or "out" connectors. You may connect the
cables to any available Robnet2 connector (blue) on the specific
unit. The Robnet2 connectors have a locking mechanism for
extra safety.
Caution ! Do not mix the blue Robnet2 cables with the yellow SimNet
cables.
The 15 m cable to the autopilot computer has a connector only at
the control unit end. Robnet2 cables with 5 pin male connector at
both ends are available in 1, 5 and 10 m length. For cable
extension a Robnet2 T-Joiner is required.
