Simrad AP16 Autopilot
98 20221560E

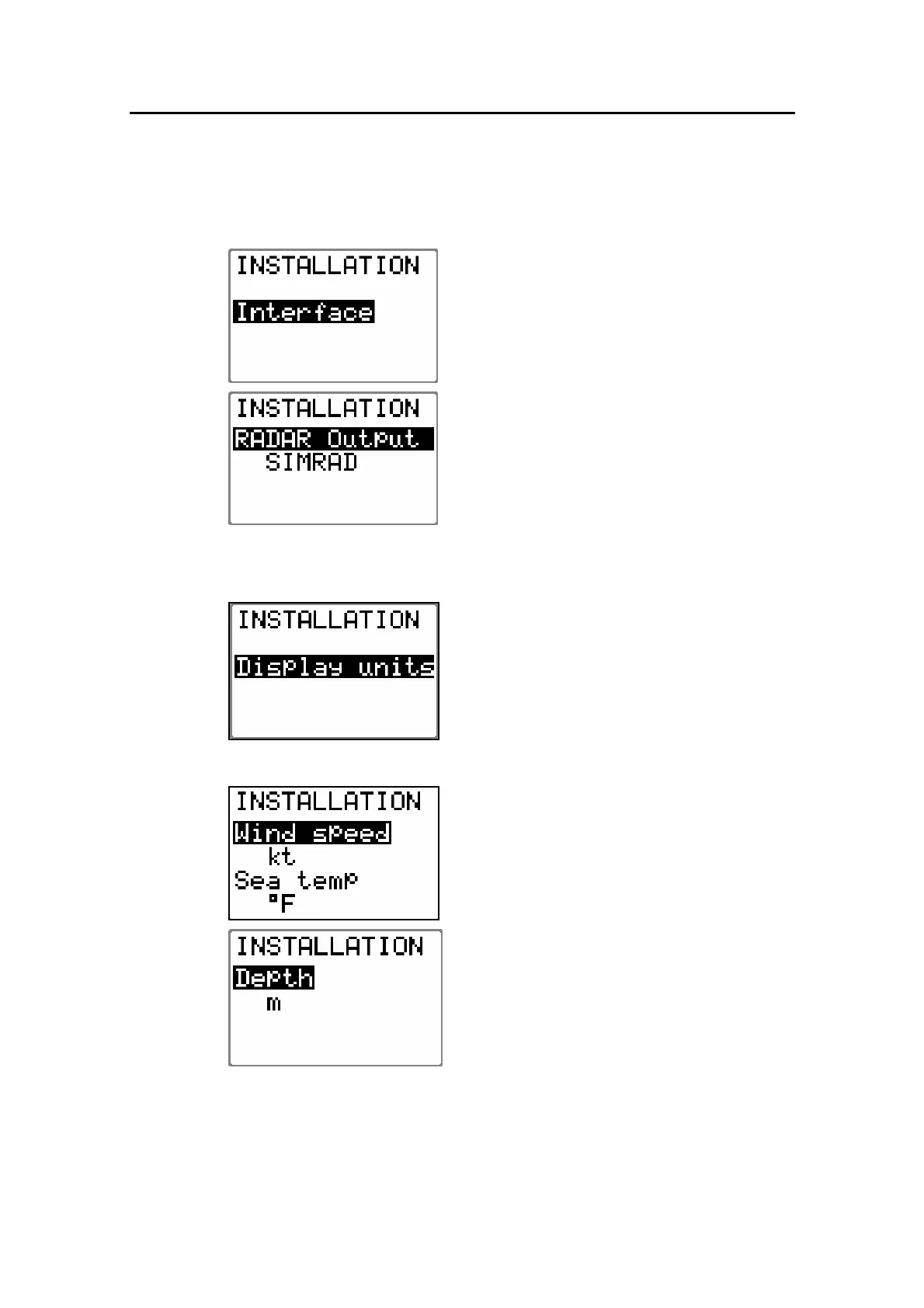

4.5 Interface Settings
Sets the format of the clock/data output for radars connected to
the Autopilot Computer.
Step to the Interface part of the
Installation Menu.
Press the STBD 10 button to access the
Interface Setup items.
Use the PORT 10 or STBD 10 buttons
to select the connected type of radar.
Note!
This setting is not available in the
AC10 Autopilot Computer.
4.6 Display units
Select Display units by pressing
STBD 1 button and confirm by
pressing the STBY 10 button. The
setup is local to each control unit.
This screen gives access to the display
unit set-up of the Wind Speed, Sea
temperature and Depth.
Use the STBD 1 button to select an item
and the STBD 10 button to select the
unit.
Available units are:
Wind Speed:
Knots (kt) (default) or meter/second
(m/s)
Sea temperature:
Fahrenheit (°F) (default) or Celsius (°C)
Depth: Meter (m) (default) or feet (ft)
