Simrad AP16 User Manual

Simrad AP16 Autopilot
112 20221560E
Autotrim
standard value is 40 sec. which should work well on
most boats.
Rudder Limit
should be kept at 20 degrees unless there is a
need for more rudder when performing dockside maneuvers.

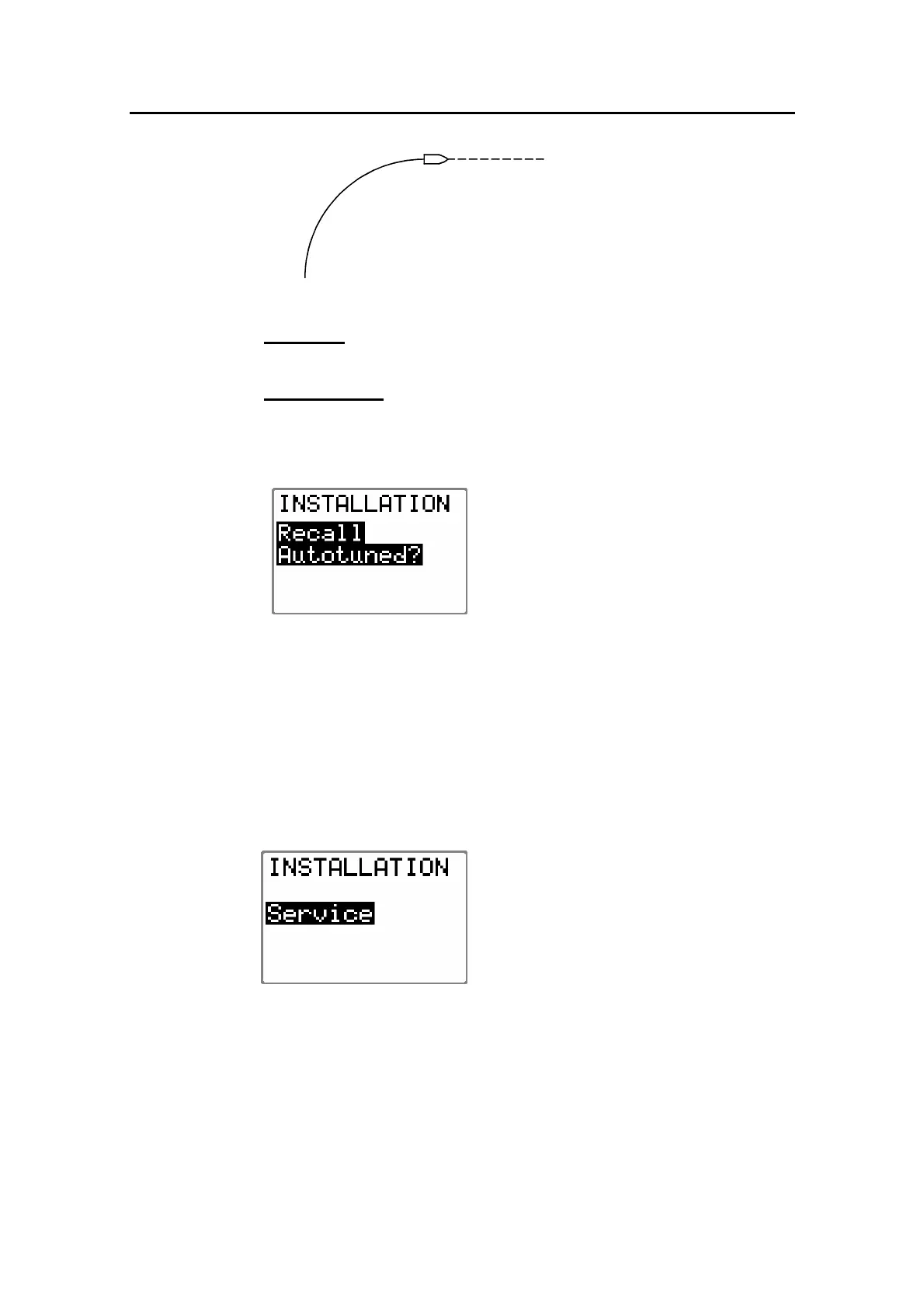

Recall Autotuned?
To recall the parameter values that
were achieved during the Automatic
tuning procedure, press the STBD 10
button. When parameter values are
recalled, Confirmed is displayed.
Exit the Parameter menu by pressing STBD 1 button to proceed
to the Service menu, or press STBY to return to normal AP16
operation.
4.9 Service Menu
The Service menu includes System data and NMEA data which
are test functions to analyze data processed by the AP16. The
menu can be useful when testing or trouble shooting the system.
Select STANDBY mode.
Press and hold the INFO/SETUP
button for 5 seconds to enter the
Installation Menu.
Press the STBD 1 button to select
"Service".
Confirm by pressing the STBD 10
button.
Correct setting of counter
rudder, ideal response
New course
