Maintenance
20221560E 123
Autopilot Control Unit
You will need a special kit for a PC to perform the programming
of the Control Unit. Order the following from Simrad:
Programming kit P/N 22088595.
Instructions are included.

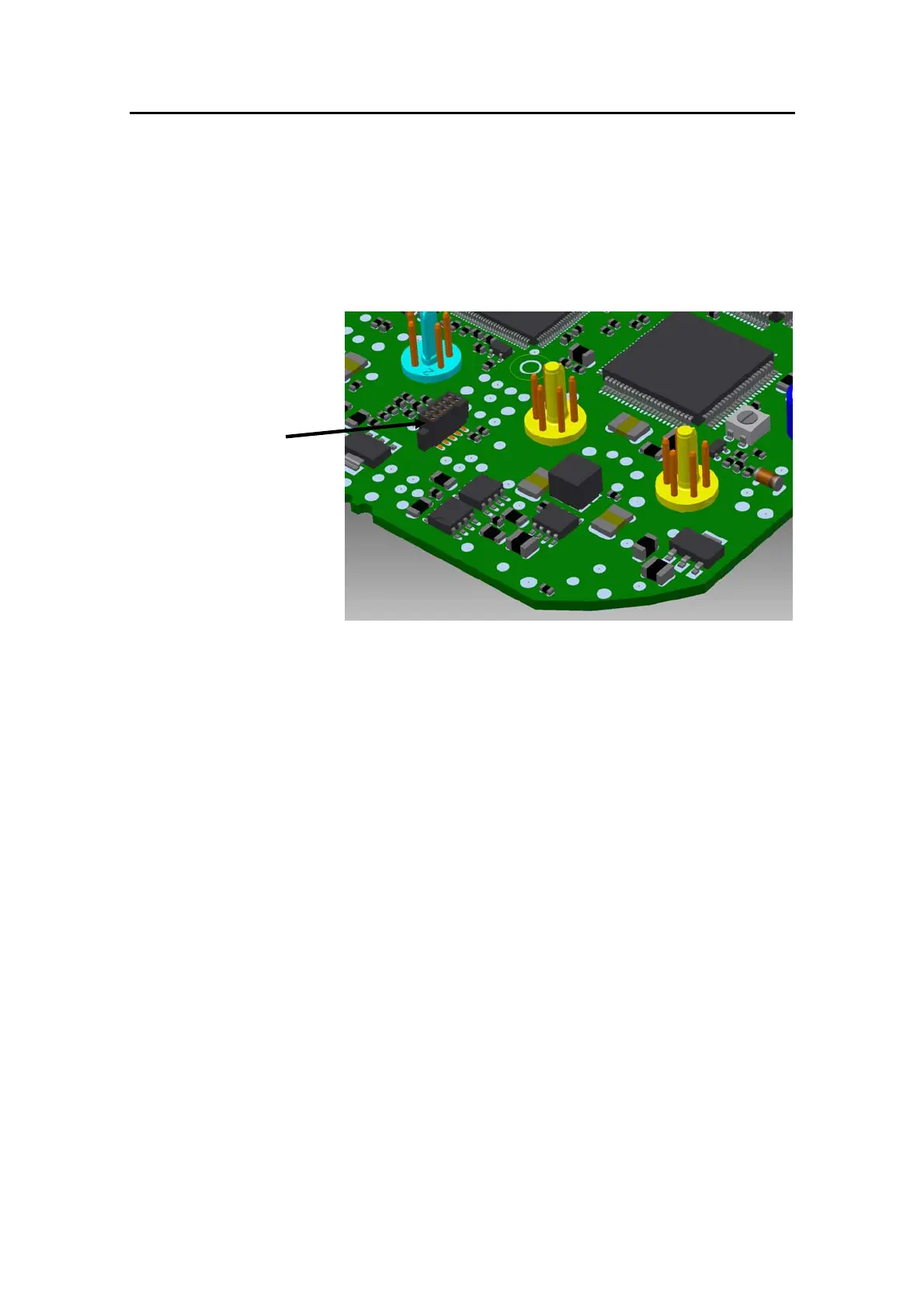

Figure 5-2 Part of AP16 PCB
Remove the cables and unscrew the screws that secure the back
cover. Apply a firm pull with your fingers to pull the back cover
loose from the connector pins. Then you have access to the
software download connector.
Software
download
connector
