Technical specifications
20221560E 137
8.4 RFC35 Fluxgate compass
Dimensions:............................... See Figure 8-4
Weight: ...................................... 0,9 kg (2,0 lbs)
Supply and output:..................... Polarity independent 2-wire supply with
superimposed pulse width modulation
Automatic Performance:
Calibration: ....................... Automatically activated by control head
Gain compensation: .......... Automatically adjusted continuously
Repeatability:............................. ± 0.5 degrees
Roll/Pitch:.................................. ± 35 degrees
Accuracy:................................... ± 3 degrees after calibration
Cable supplied:.......................... 15 m TP shielded cable
Temperature range:
Operation: ......................... 0 to +55 °C (+32 to + 130 °F)
Storage:............................. –30 to +70 °C (–22 to +158 °F)
Environmental Protection:......... IP56
Mounting: .................................. Deck or bulkhead
Material:..................................... Black ABS

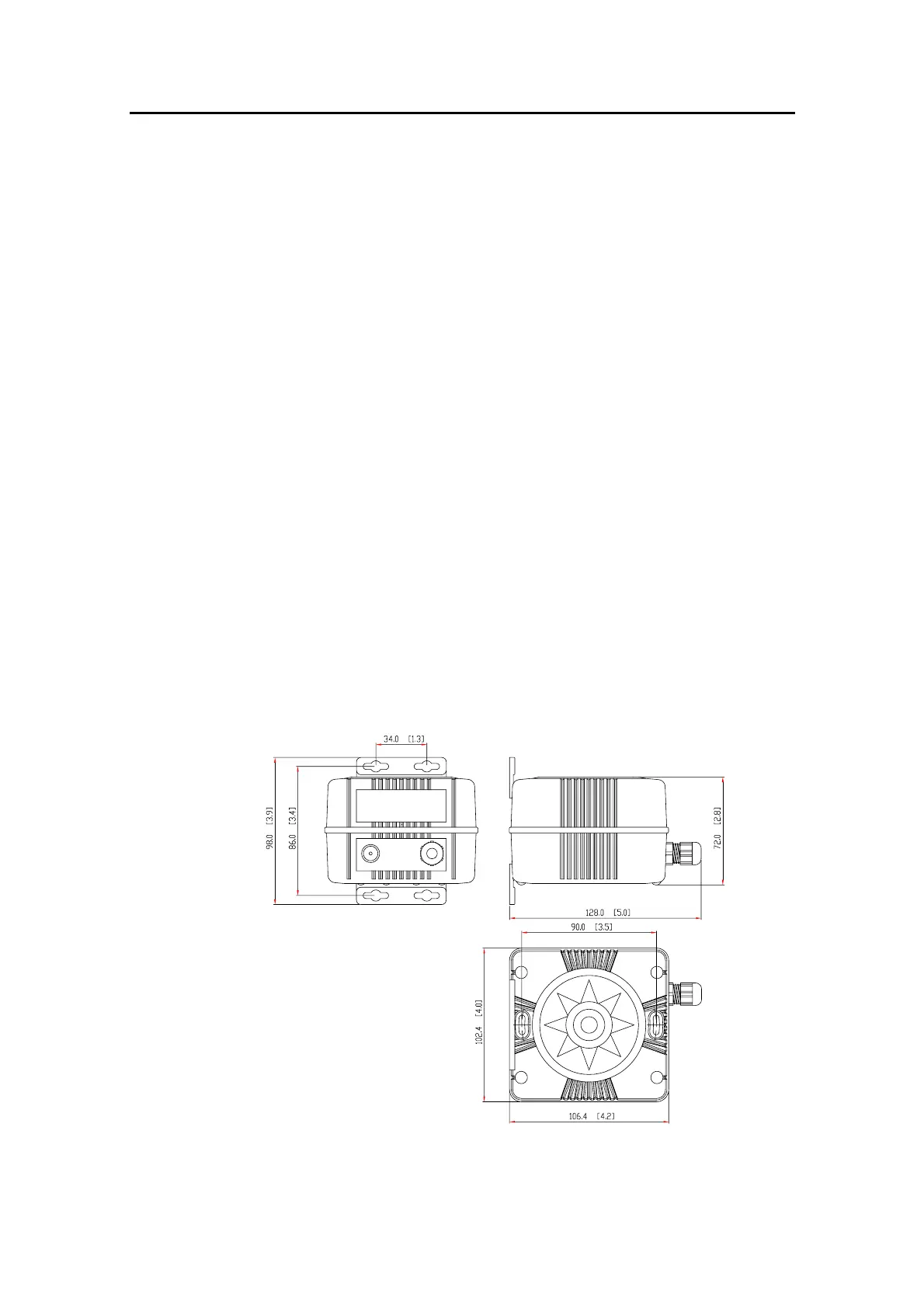

Figure 8-4 RFC35 Fluxgate Compass - Dimensions
