Installation
20221560E 69
RFC35
FLUXGATE
COMPASS
AUTOPILOT COMPUTER
MAIN PCB
Heading
Sensor
*
* NON POLARIZED
(COLOR INDEPENDENT)
HS+
HS-

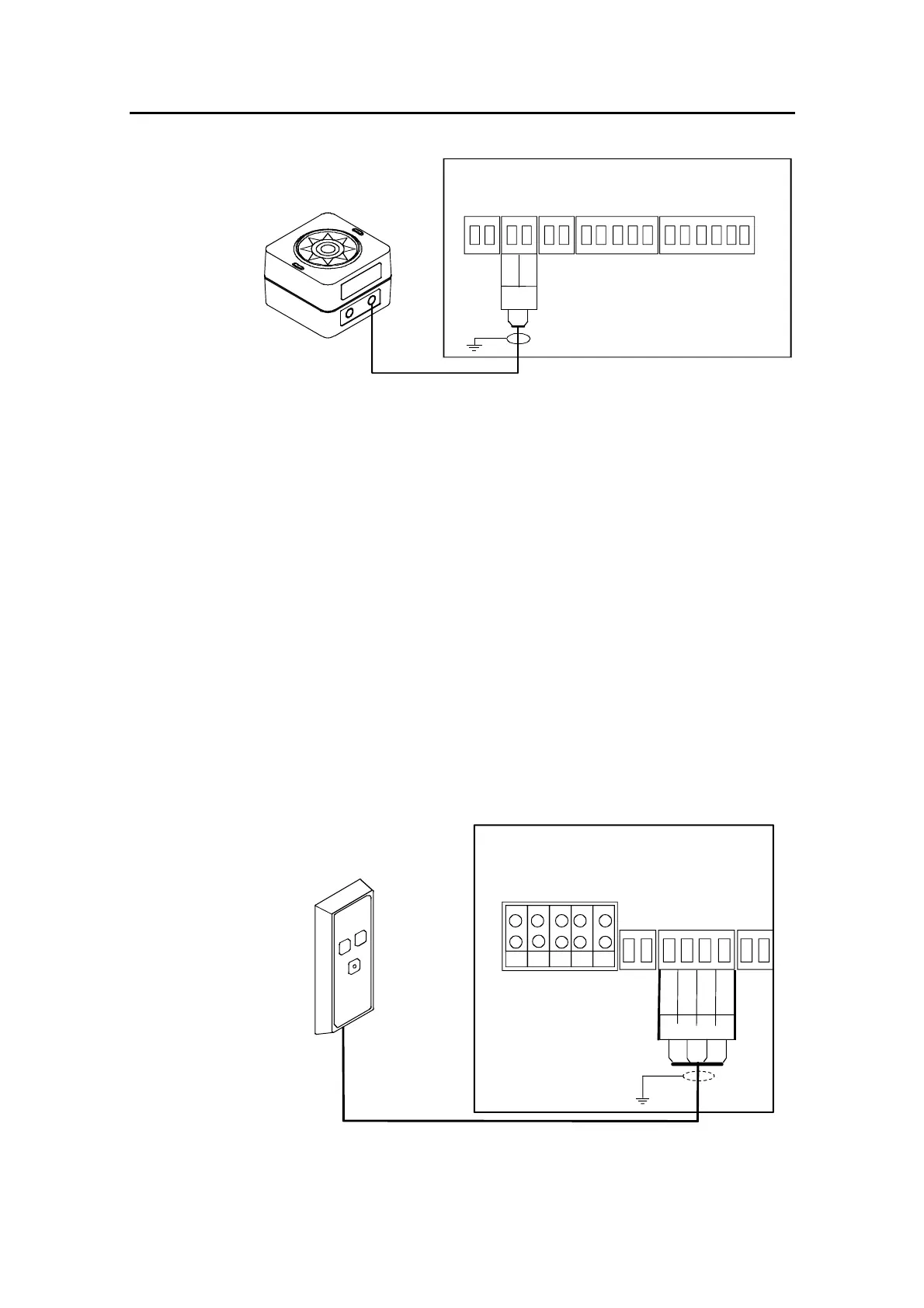

Figure 3-13 RFC35 connection
3.14 RC36 Rate Compass installation
(Optional)
The RC36 Rate Compass also contains a magnetic heading
sensor, which means you have to take the same precautions at
installation as for the standard RFC35 (see previous page).
Plug the RC36 into a Robnet2 connector (see Figure 3-9) or cut
the connector from the cable and connect the wires in parallel
with the cable shown in Figure 3-11
3.15 R3000X Remote Control installation
R3000X should be mounted in the supplied bracket that can be
fixed by four mounting screws. The unit is weather proof and
can be mounted outdoor.
TB6
AUTOPILOT COMPUTER
TB3 TB4
TB5
TB7
Stbd
Port
Gnd
Gn
Red Blu
REMOTE
TB8
TB1
TB2
R3000X
REMOTE CONTROL
Lamp
Yel
POWER PCB
Figure 3-14 R3000X connection
