Simrad AP16 User Manual

Simrad AP16 Autopilot
20 20221560E

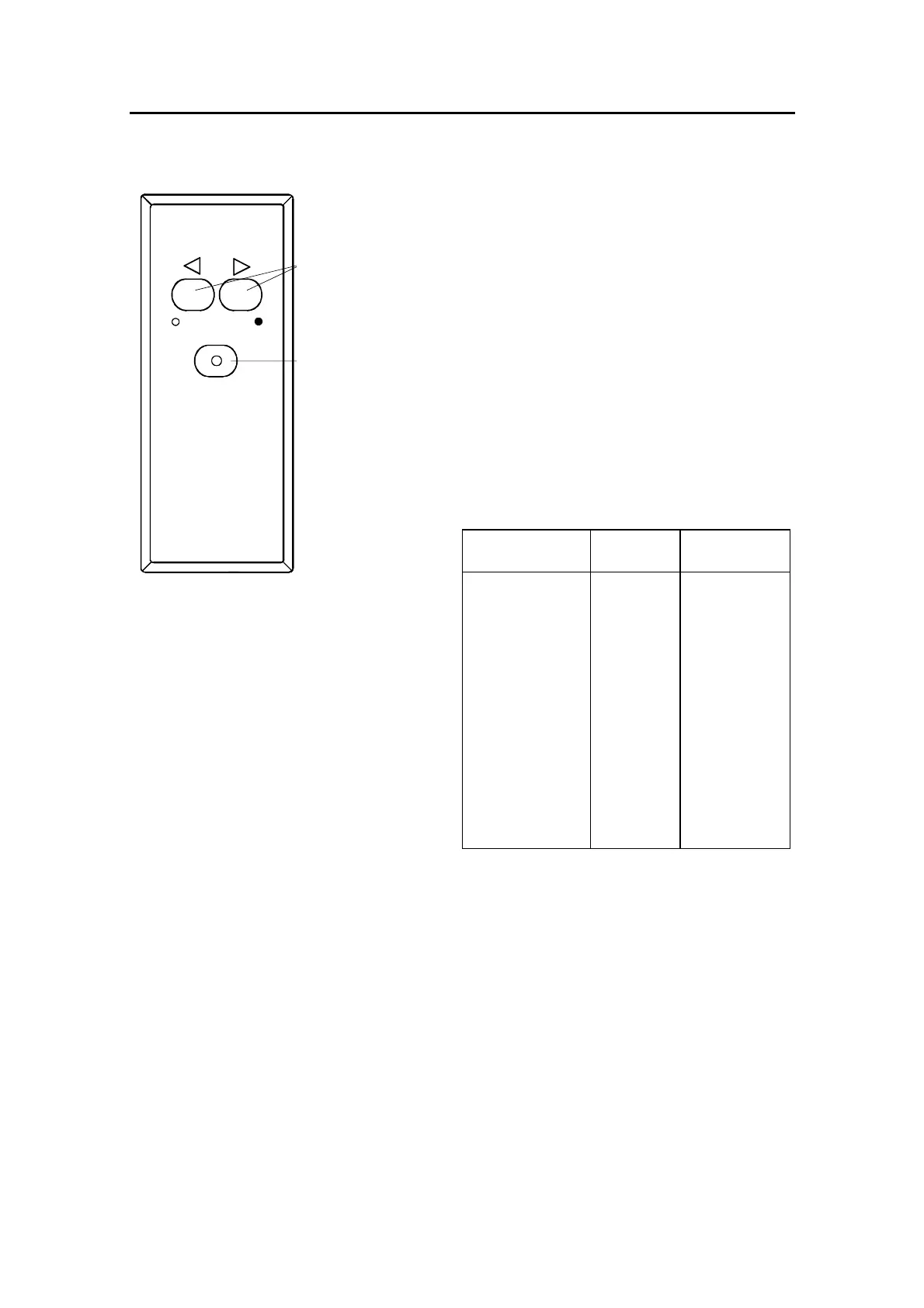

2.5 R3000X Remote Control (NFU)
Push button for
Port and Stbd
commands
In STANDBY mode, the rudder will
move as long as the Port or Stbd
button is pressed.
In AUTO mode and Wind modes the
set course or set wind angle will
change 1° each time the button is
pressed.
Note!
If you keep the button pressed, it will
automatically change the setting in
increments of 3° per second.
Mode changes are as per table below.
Initial mode
1
st
press 2
nd
press
STBY-AUTO
Simrad R3000X
SIMRAD
STBY/automatic.
Automatic modes
are active when
the lamp is lit.
Notes !
1. When NAV mode is selected in
User Setup
2. When WIND mode is selected in
User Setup
3. NAV and WIND
N
modes can only
be entered from the Control unit
because you have to accept the
prompt displays.
STBY
AUTO
NAV
STBY
AUTO
WIND
WINDN
AUTO
STBY
STBY
WIND
STBY
STBY
STBY
STBY
AUTO
AUTO
1)3)
STBY
2)
WIND
2)
WIND
2)
WIND
3)
2.6 JS10 Joystick (NFU)
The principle is similar to that of R3000X Remote Control (see
above). The rudder will move as long as the lever is offset to
Port or Starboard. JS10 has no mode change feature.
Note ! When a NFU steering lever or a remote control is operated, the
control units become "Inactive".
