Configuration and setup
20221560E 85
selected values. Once the value is changed, it is stored
until the next time the menu item is selected and changed.
− The Installation Settings are global except for display
units and language, enabling settings to be distributed to
all control units in the system.
− The Seatrial settings are dependent on successful
completion of the Dockside settings.
4.3 Installation Menu

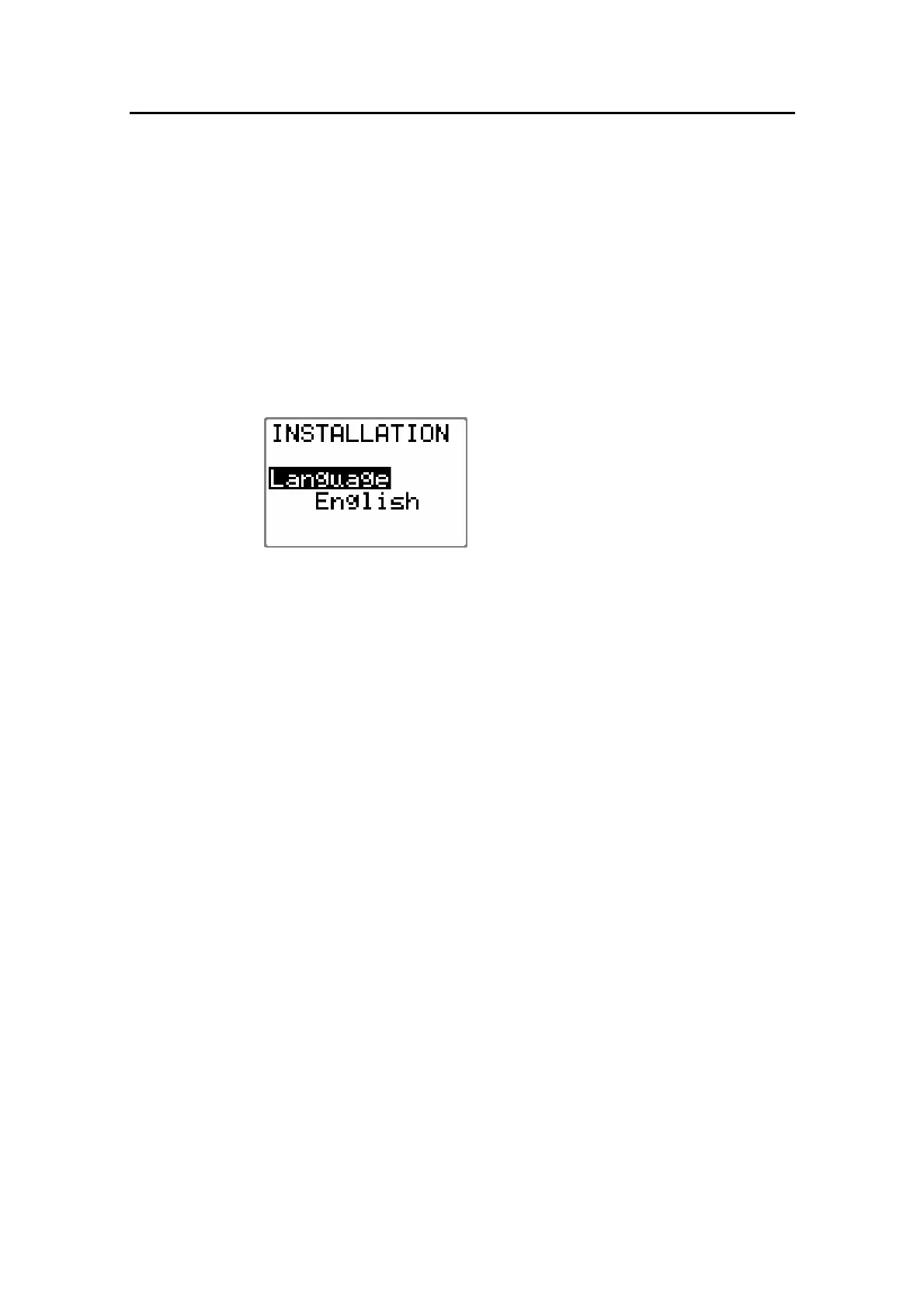

The Installation Menu is
presented on the autopilot
display by pressing and
holding the INFO/SETUP
button for 5 seconds.
Note ! The INSTALLATION MENU is different from the USER SETUP
MENU. Refer to the flow diagram on the next page for a
pictorial view of the Installation Menu.
Navigate through the Installation Menu as follows:
− Step through the functional categories by pressing the
STBD 1 or PORT 1 button.
− Access a category by pressing the STBD 10 button.
− Step through the category items by pressing the STBD 1
or PORT 1 button.
− Change the selected item by pressing the STBD 10 or
PORT 10 button.
− Exit the Installation Menu by pressing STBY, AUTO, or
NAV WIND buttons.
When using the Installation Menu, refer to the diagram
"Installation settings Menu Flow Chart" on next page.
Note ! You may proceed through all items in the installation menu by
continuing pressing the STBD 1 button.
