Simrad AP16 Autopilot
10 20221560E
Other documentation material that is provided with your system
includes a warranty card. This must be filled out by the
authorized dealer that performed the installation and mailed in to
activate the warranty.
1.3 System components
A basic AP16 system consists of the following units (refer to
Figure 1-1):
− AP16 Control Unit with accessories
− Autopilot Computer
− Fluxgate compass
− Rudder Feedback Unit with transmission link
− Drive unit
The basic system can be expanded with fixed and hand held
multiple full function control units, hand held remote and
steering lever.

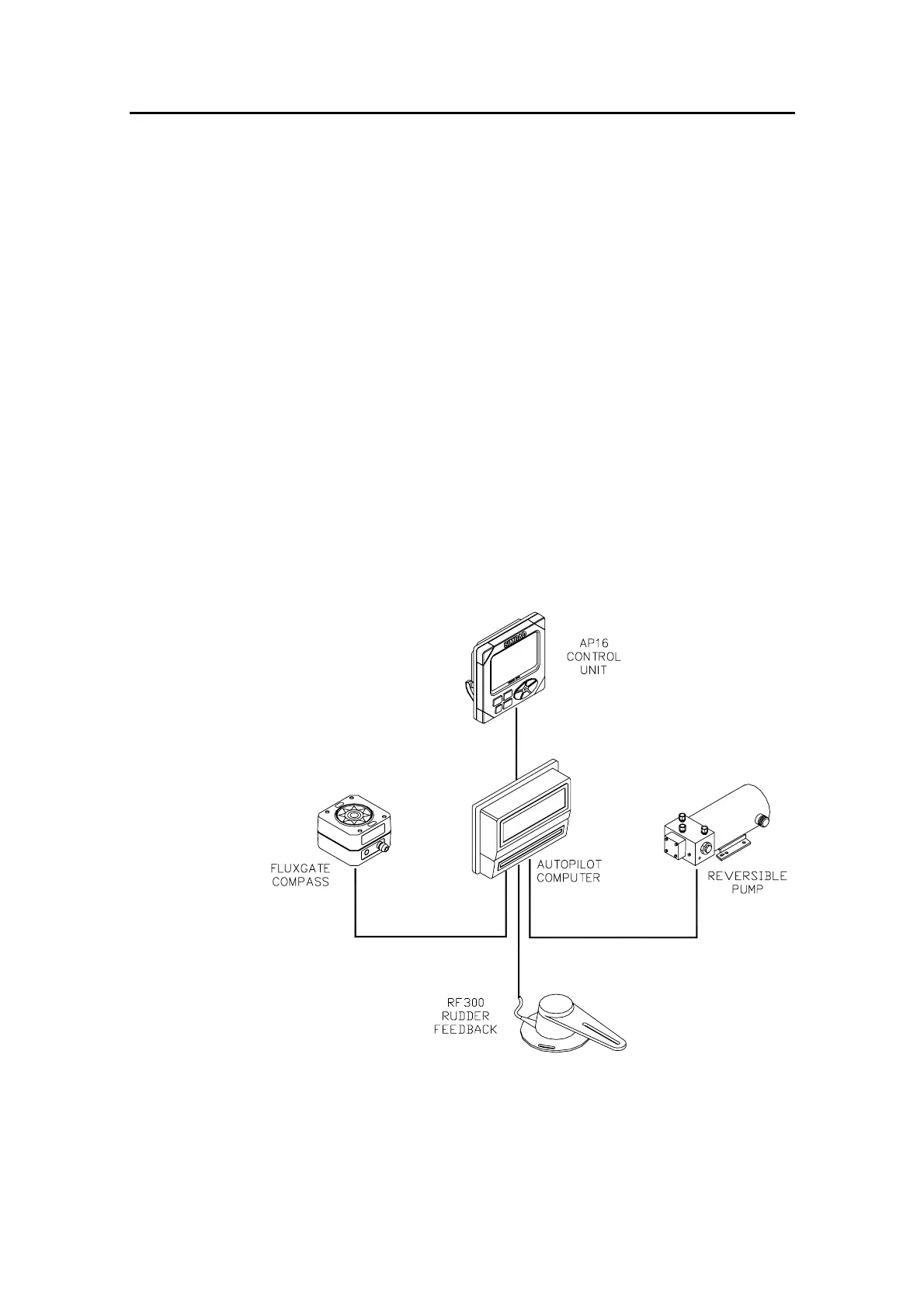

Figure 1-1 AP16 Basic system
