Simrad AP25 Instruction Manual

Simrad AP25 Autopilot
100 20222139A
8.2 AP25 Control Unit
Dimensions:............................... See Figure 8-1
Weight: ...................................... 0,5 kg (1.1 lbs)
Power consumption ................... 3 W
Display:
Type:................................. Backlit LCD matrix display
Resolution:........................ 160 x 128 pixels
Colour:....................................... Black
Illumination: .............................. Adjustable in 10 steps
Environmental Protection:......... IP56 from front, IP43 from back.
Safe distance to compass:.......... 0.5 m (1.6 ft.)
Temperature:
Operating: ......................... 0 to +55 °C (+32 to +130 °F)
Storage:............................. –30 to +70 °C (–22 to +158 °F)

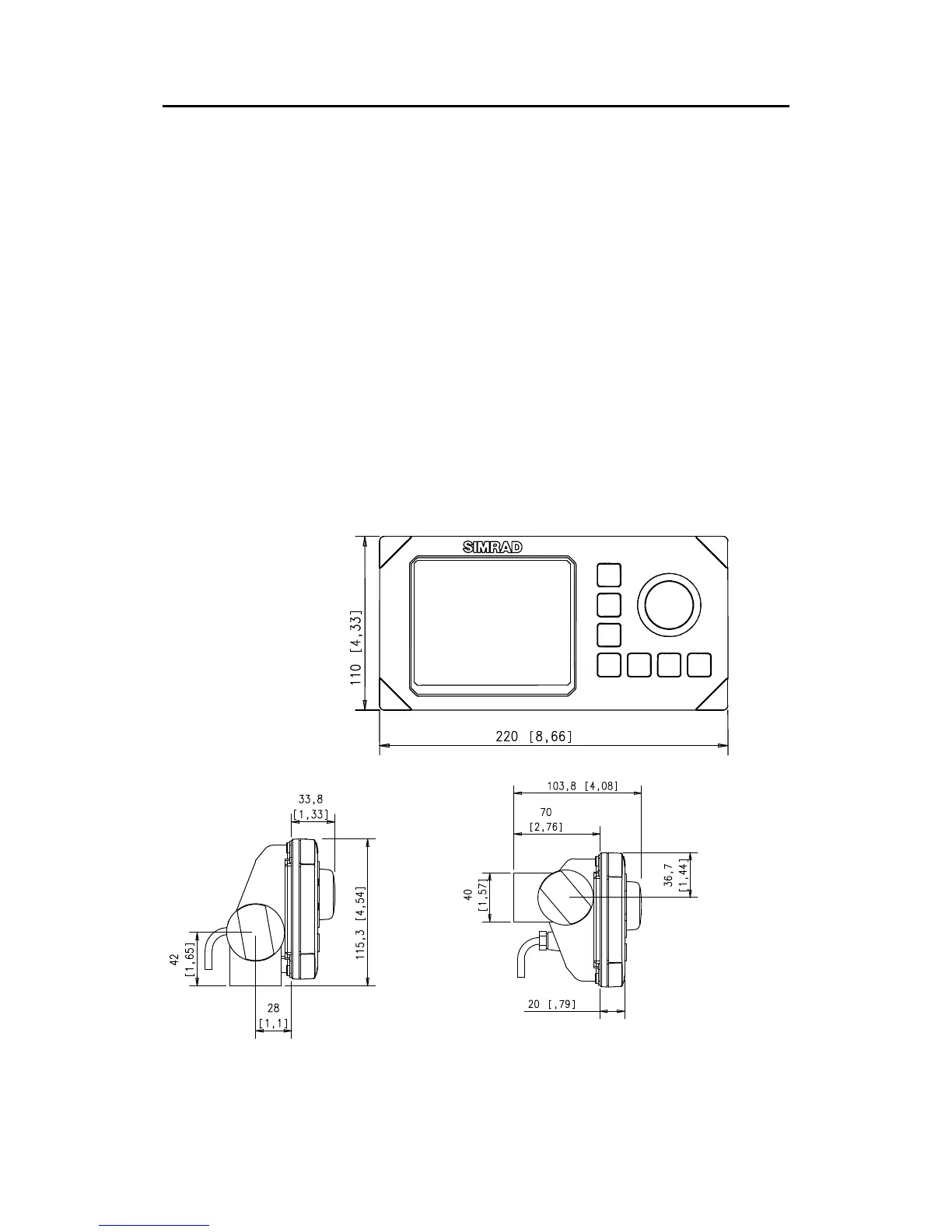

Figure 8-1 AP25 Control Unit – dimensions
(Mounting bracket is optional equipment)
