Simrad AP25 Instruction Manual

Simrad AP25 Autopilot
8 20222139A
Please take time to read this manual to get a thorough
understanding of the operation and system components and their
relationship to a complete AP25 autopilot system.
Other documentation material that is provided with your system
includes a warranty card. This must be filled out by the
authorized dealer that performed the installation and mailed in to
activate the warranty.
1.3 System components
A basic AP25 system consists of the following units (refer to
Figure 1-1):
• AP25 Control Unit with accessories
• AC05 Autopilot Com
puter
• RC36 Rate compass
The basic system can be expanded with multiple fixed and hand
held full function control units, hand held remote and steering
lever.

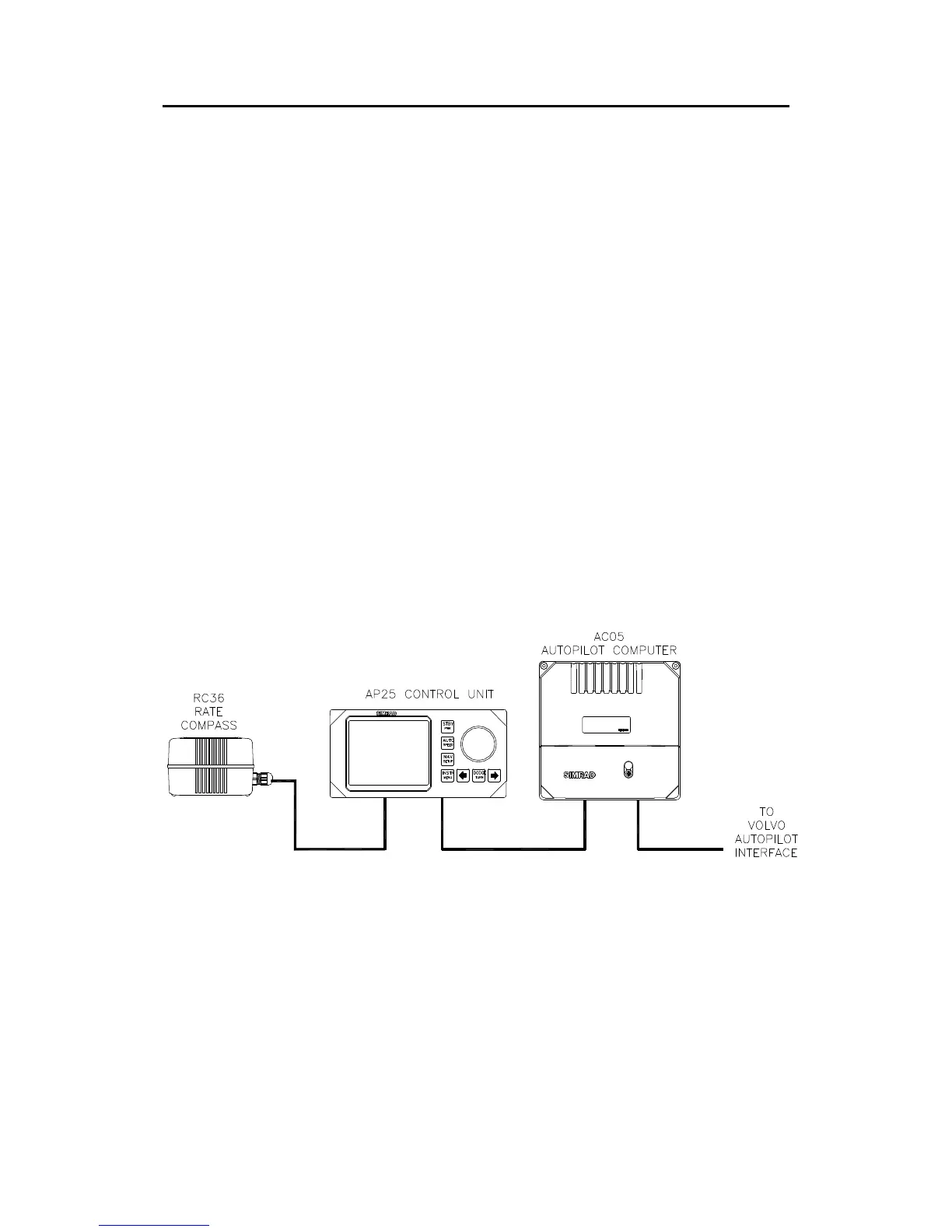

Figure 1-1 AP25 Basic system
Note ! The Volvo Autopilot Interface is the gateway between the
autopilot and the IPS system. The gateway kit must be ordered
from Volvo under P/N 3819744.

Simrad AP25 Specifications

General

Brand	Simrad
Model	AP25
Category	Autopilot System
Language	English
