Operation
20222139A 15

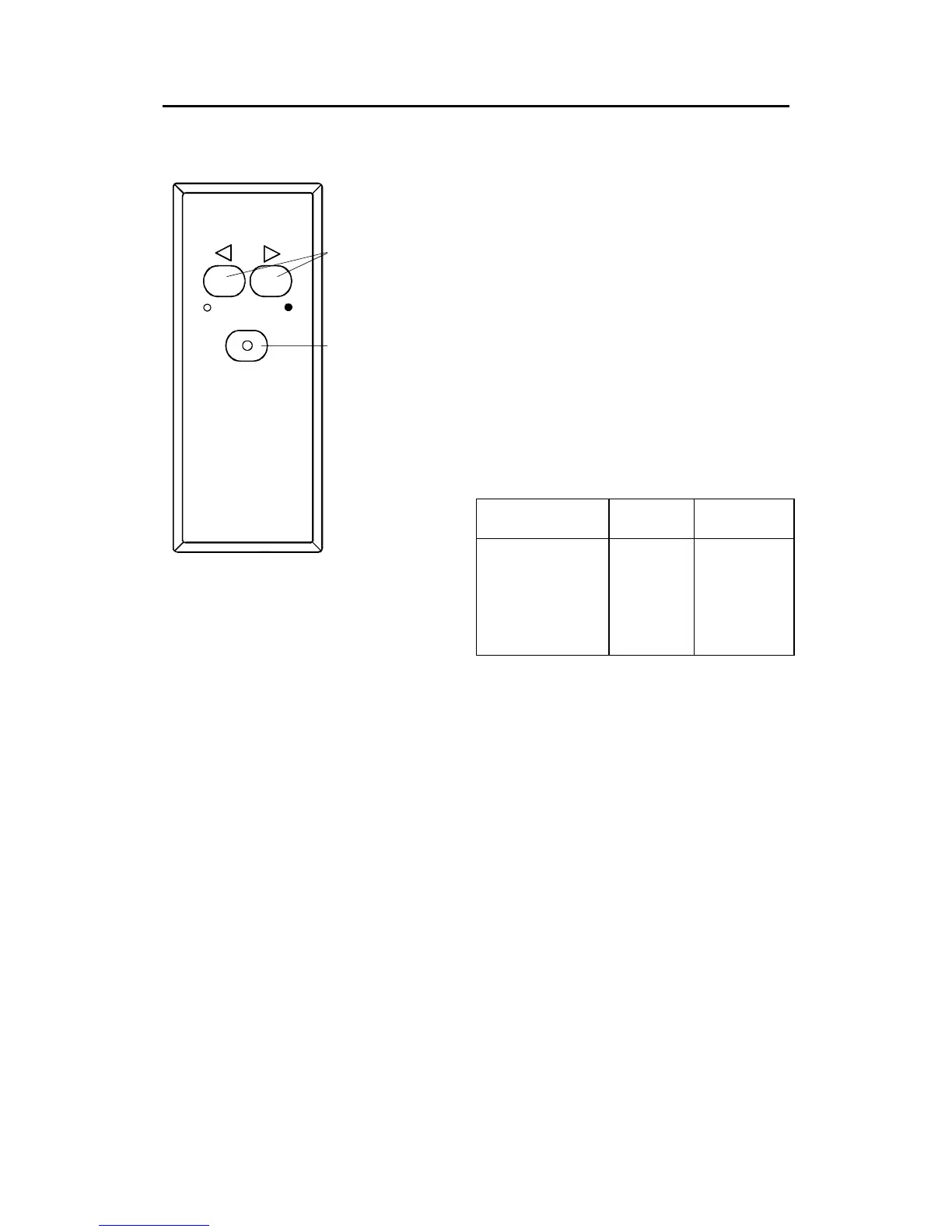

2.5 R3000X Remote Control (NFU)
Push button for
Port and Stbd
commands
In STANDBY mode, the rudder will
move as long as the Port or Stbd button
is pressed.
In AUTO mode the set course will
change 1° each time the button is
pressed.
Note!
If you keep the button pressed, it will
automatically change the setting in
increments of 3° per second.
Mode changes are as per table below.
Initial mode 1
st
press 2
nd
press
STBY-AUTO
Simrad R3000X
SIMRAD
STBY/automatic
Automatic
modes are active
when the lamp is
lit.
STBY
AUTO
NAV/NoDrift
1
)
AUTO
STBY
STBY
STBY
AUTO
AUTO
2)
Notes !
1. When NAV or NoDrift mode is selected in User Setup
2. NAV or NoDrift modes can only be entered from the Control
unit.
2.6 JS10 Joystick (NFU)
The principle is similar to that of R3000X Remote Control (see
above). The rudder will move as long as the lever is offset to
Port or Starboard. JS10 has no mode change feature.
Note ! When a NFU steering lever or a remote control is operated, the
control units become "Inactive".
2.7 Automatic Steering
When AUTO mode is selected, the AP25 automatically picks the
current boat heading as the set course and maintains the
simultaneous rudder angle. This gives a bumpless transfer at the
mode change.
To Next Page
