Installation
20222139A 57

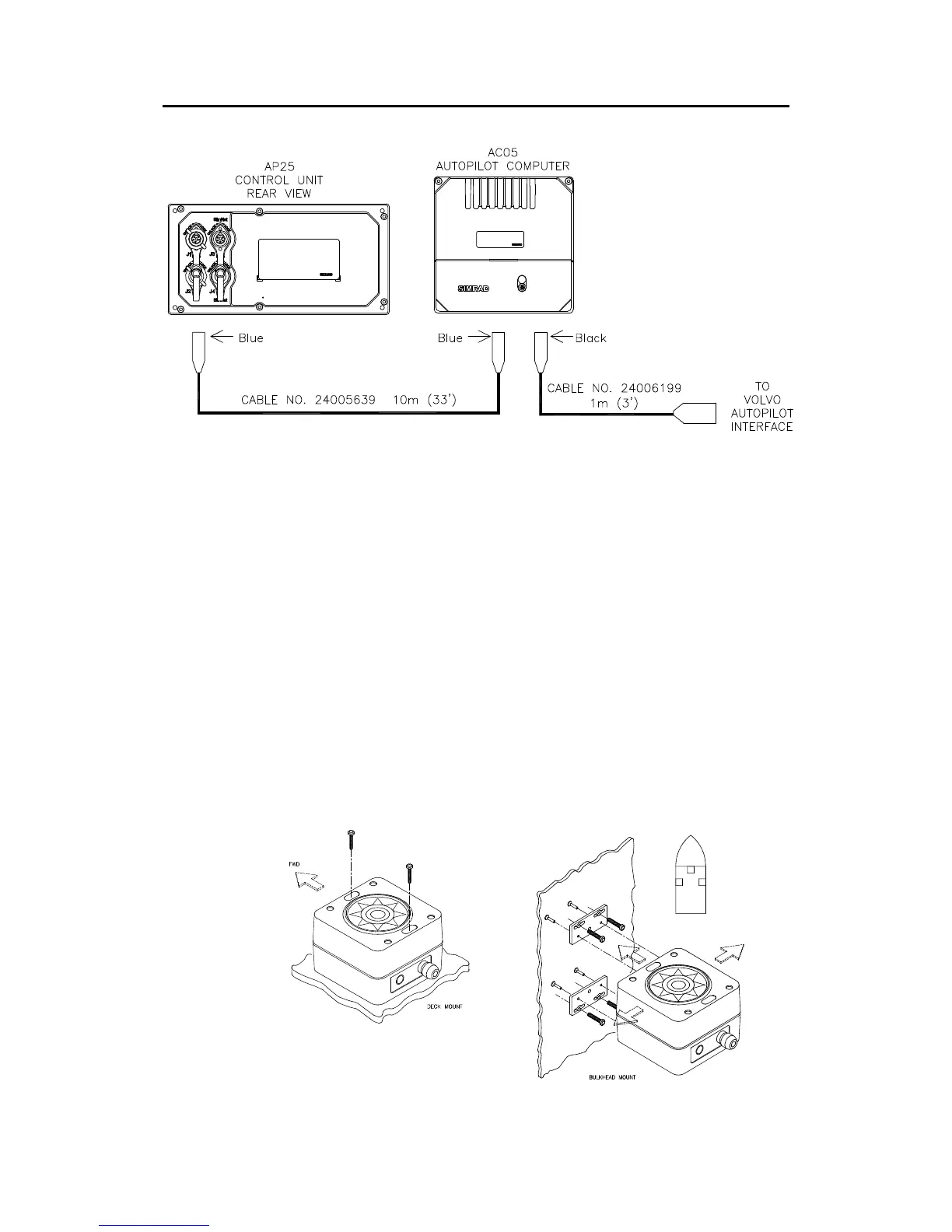

Figure 3-7 Autopilot connection
J1 and J2 (top) are Robnet2 connectors. J3 and J4 are SimNet
connectors.
Note ! The Volvo Autopilot Interface is the gateway between the
autopilot and the IPS system. The gateway kit must be ordered
from Volvo under P/N 3819744.
AP27 connection
If a Simrad AP27 is part of the system, use the JP27 Jack Point
and connect as shown on Figure 3-5.
Note ! The AP27 cable contains an air-breathing tube. Check that the
cable runs free to avoid blocking of the tube.
3.9 RC36 Rate Compass installation
Figure 3-8
RC36 mounting
