Technical specifications
20222139A 101
8.3 AC05 Autopilot Computer
Dimensions:............................... See Figure 8-2
Weight: ...................................... 1,1 kg (2,4 lbs)
Supply voltage:.......................... 10.8 - 31.2 VDC
Reverse voltage protection ........ Yes
Environmental Protection:......... IP22
Safe distance to compass:.......... 1.0 m (3 ft.)
Power consumption:.................. 5 Watt (electronics)
External Alarm: ......................... Open collector
Temperature range:
Operation: ......................... 0 to +55 °C (+32 to +130 °F)
Storage:............................. –30 to +70 °C (–22 to +158 °F)
Mounting: .................................. Bulkhead mount, cable inlet downwards
Material:..................................... Epoxy coated silumin and ABS
Number of control units: ........... 7
Input for NFU control:............... Yes
Radar clock/data interface......... Yes

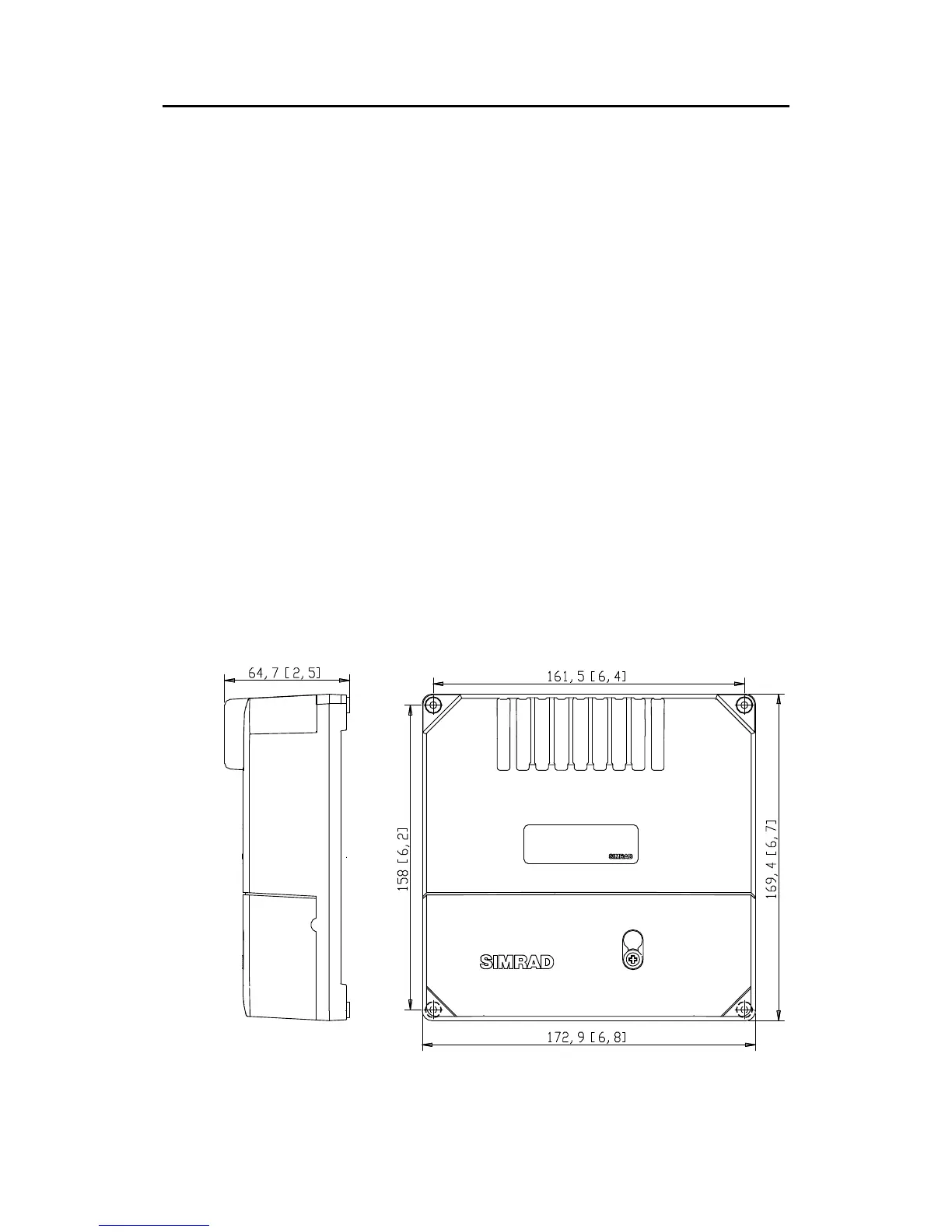

Figure 8-2 AC05 Autopilot Computer - Dimensions
