Configuration and Setup
20222139A 85
Steer compass
Steering Compass readout, M=Magnetic, T=True
Rudder
Rudder angle. Between zero and 26 degrees.
Input voltage
Mains voltage on input terminals

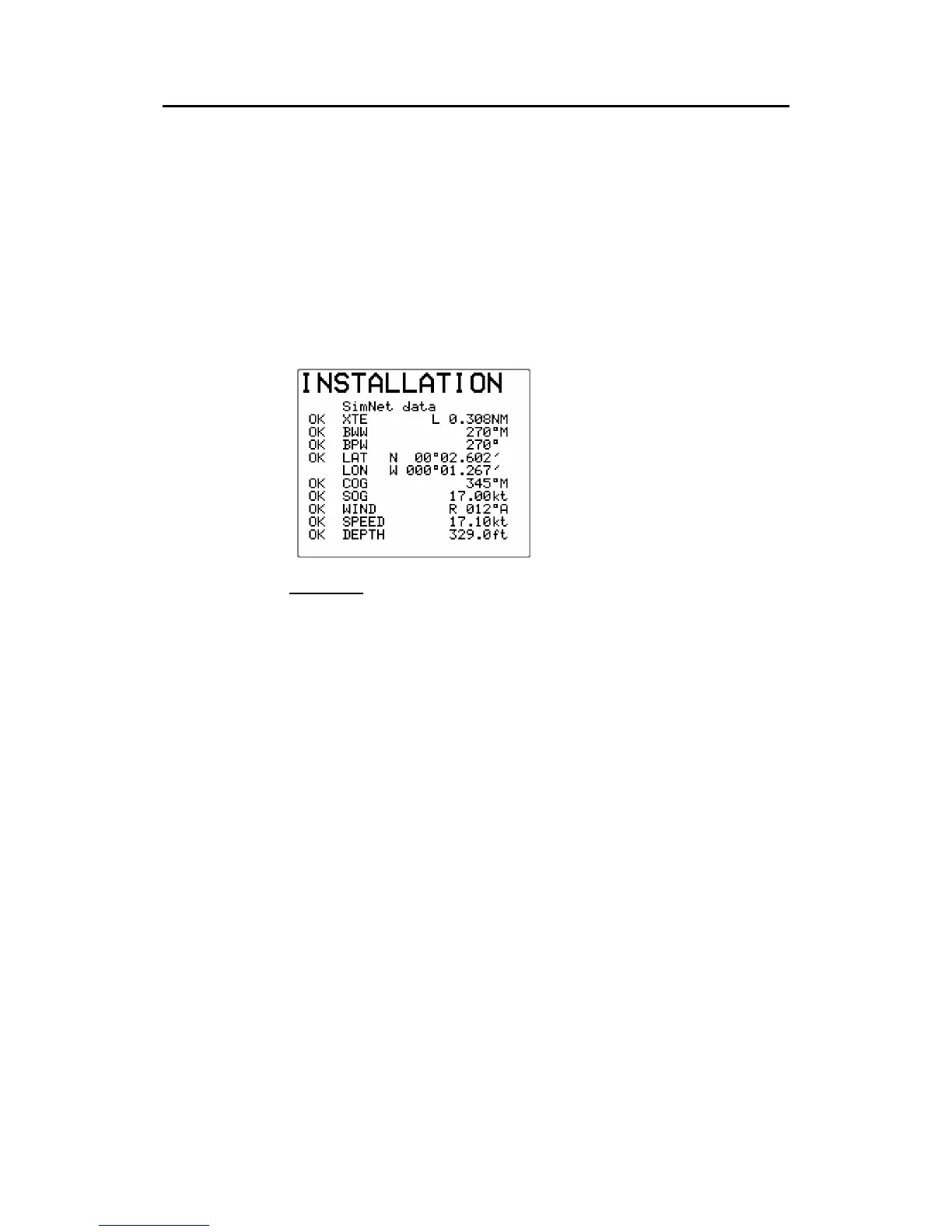

SimNet Data Screen
Select the screen by pressing
the STBD button and confirm
by rotating the course knob
clockwise.
The menu provides you with
status information about the
different SimNet messages
used by the system.
Decoding
The incoming signals are decoded according to a built in priority
table in the AP25.
For all data items, one of the following codes will be displayed:
– – – No data.
OK Valid data found
INV Message with invalid information.
FRM Message has format failure such as
a) Incorrect check sum
b) Wrong contents in data field(s)
If data are missing, perform the following:
• Open the source select page in the User Setup2 menu and
check that data are available
• Check the navigator setup and make sure it is transmitting
appropriate data.
Note ! The “WIND” reading is the apparent wind from the port (L) or
starboard (R). The “SPEED” reading is the speed through
water.
