Technical specifications
20222139A 103
8.5 R3000X Remote Control
Dimensions: .... See Figure 8-4
Weight:
............ 0,4 kg (0,9 lbs)
Material:.......... Epoxy coated aluminium
Protection........ IP56
Safe distance to compass: 0.15 m (0.5 ft.)
Temperature range:
Operation: ...–25 to +55 °C (–13 to +130 °F)
Storage:.......–30 to +70 °C (–22 to + 158 °F)
Cable length:... 7 m, shielded
Mounting bracket:.......Supplied

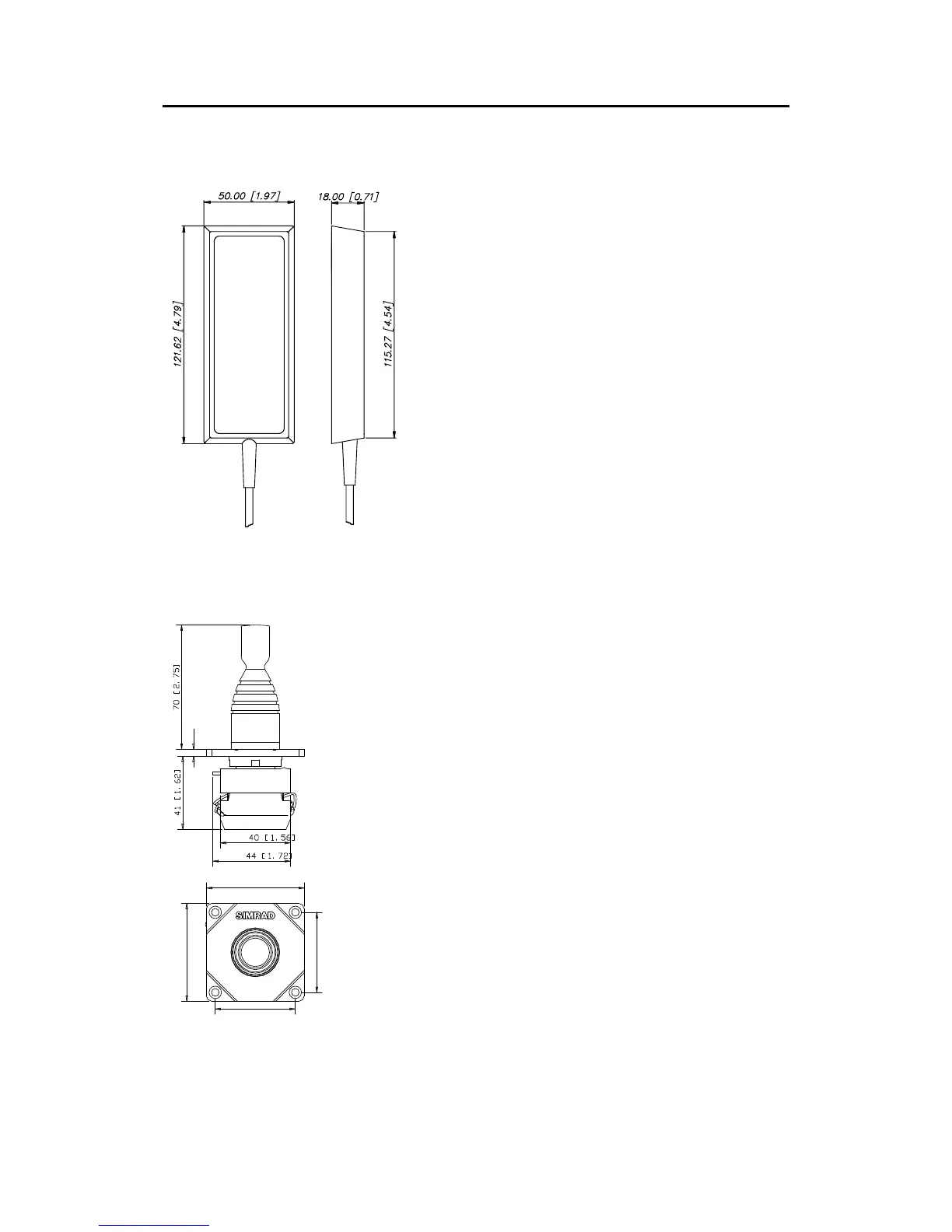

Figure 8-4 R3000X - Dimensions
8.6 JS10 Joystick
Figure 8-5
JS10 Joystick
Dimensions
Dimensions: ...............................................See Figure 8-5
Weight:
.......................................................0.5 kg (1.1 lbs.)
Environmental Protection:
Joystick.............................................................. IP66
Terminals........................................................... IP20
Safe distance to compass:..........................0.15 m (0.5 ft.)
Shock resistance (according to MIL 202 B method 202
A):
1/2 sinusoid 11 ms:
No damage or disassembling at 100 g
Vibration resistance (according to IEC 68-2-6):
16 g with frequency range from 40 to 500 Hz and
maximum shifting 0,75 mm (peak -to- peak)
Temperature range:
Operation: .....................–25 to +70°C (–13 to +158°F)
Storage: ........................–40 to +70°C (–40 to +158°F)
Mounting:..................................................... Panel-mount
Cable:.....................................................10 meters (33 ft.)
