Simrad AP25 Instruction Manual

Simrad AP25 Autopilot
90 20222139A
5.4 Exchange of software programme
You will need a special kit for a PC to perform the programming
of the AC05 Autopilot Computer and the AP25 Control Unit.
Order the following from Simrad:
Programming kit P/N 22088595.
Instructions are included.
Autopilot Computer
Remove the bottom cover to get access to the software download
connector.

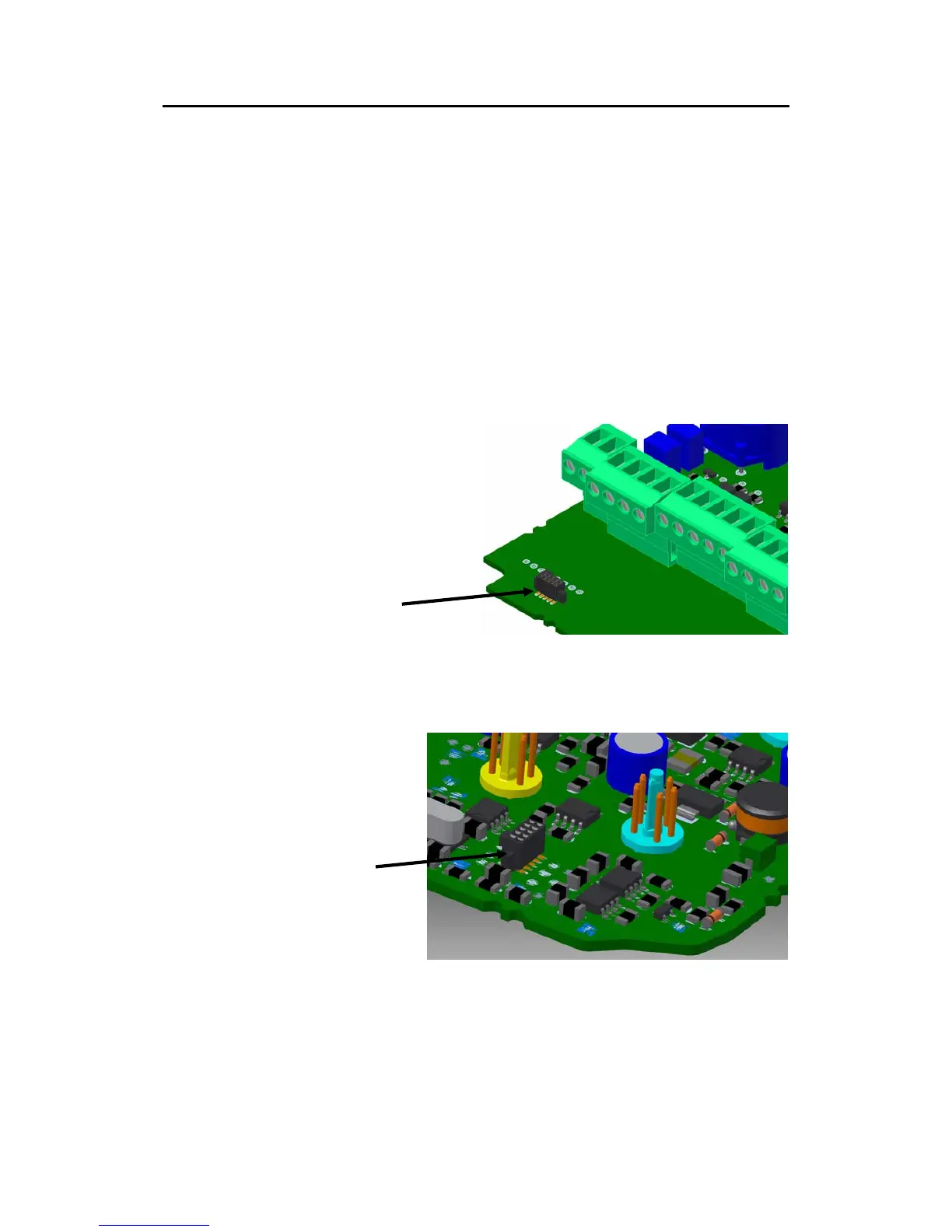

Figure 5-1 Part of AC05 PCB
Autopilot Control Unit
Figure 5-2 Part of AP25 PCB
Remove the cables and unscrew the six screws that secure the
back cover. Apply a firm pull with your fingers to pull the back
cover loose from the connector pins. Then you have access to the
software download connector.
Software
download
connector
Software
download
connector
