Configuration and Setup
20222139A 87
Master Reset
Note ! A Master Reset is part of the final test at the factory, which will
reset the memories to factory settings. Unless you need to clear
all stored values during the installation setup procedure, you
should not perform a Master Reset.

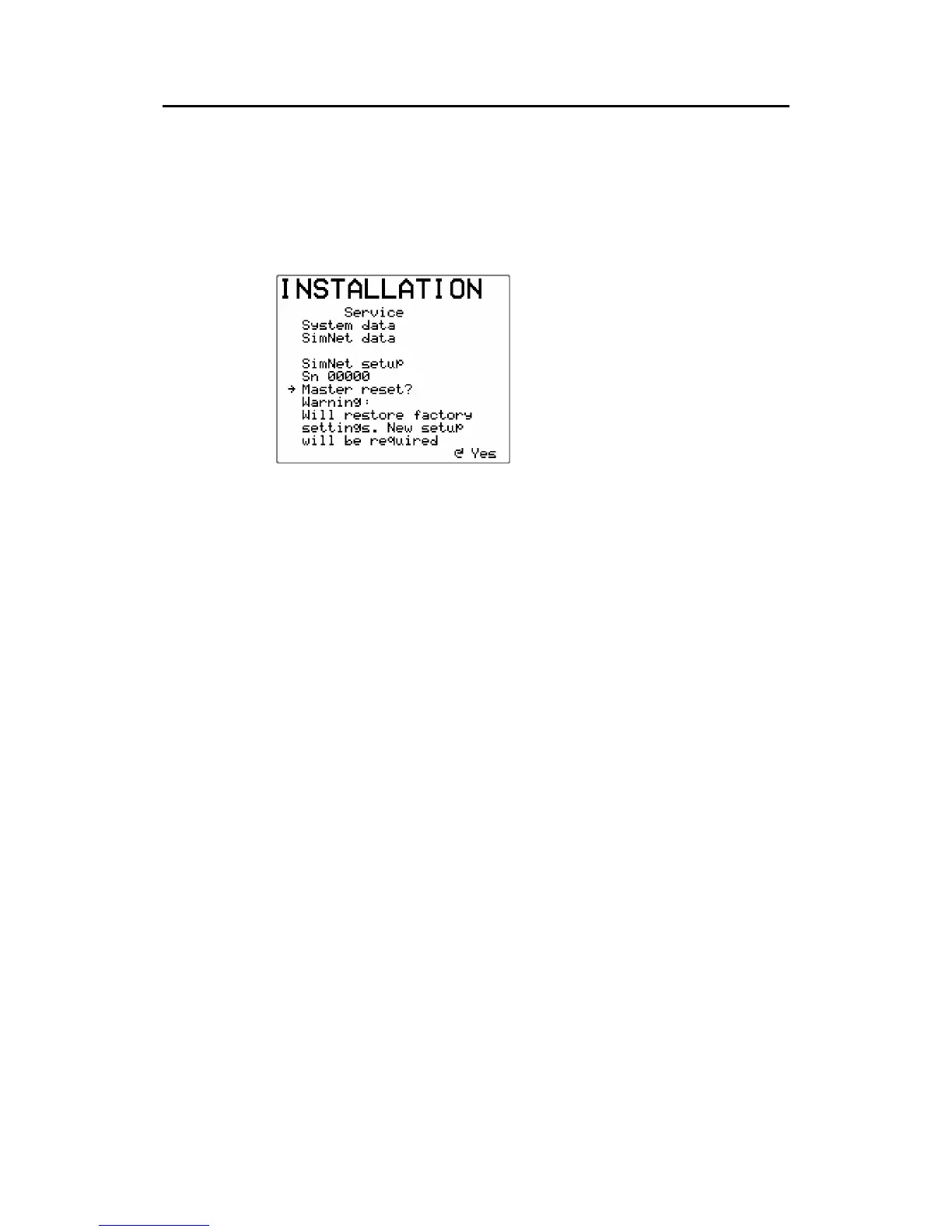

The Master Reset needs a double
confirmation to prevent an
accidental reset. To perform a
Master Reset, rotate the course
knob clockwise and observe the
display; then rotate the course
knob counter clockwise. The
display will then read: “Master
Reset confirmed”.
Unless you have made a Master Reset, exit the Installation Menu
by pressing STBY to return to normal AP25 operation.
In the event a Master Reset has been made, refer to chapter 4.2.
Final sea trial
After having completed all settings in the Installation Menu, take
the boat out and perform a final sea trial in open waters at a safe
distance from other traffic.
• Steer the boat on all cardinal headings in AUTO mode.
• Start with low and medium speeds to get familiar with the
response from the AP25.
• If the hardware for automatic HI/LO selection is connected
and configured, verify that the HI/LO transition is occurring,
and the HI/LO parameters are changing after the transition
speed is crossed (by more than 1 Knot higher or lower speed).
• Try the effect of LO and HI parameter settings.
• Try the Dodge and U-turn function.
• If a Non-Follow Up lever (or handheld remote) is connected,
test change of modes and verify port and starboard steering
commands of the lever.
• Set waypoints into each navigator connected to the system,
and verify that the AP25 steers in NAV mode for each NAV
source.
