Simrad AP26 and AP27 Autopilots
16 20222147A

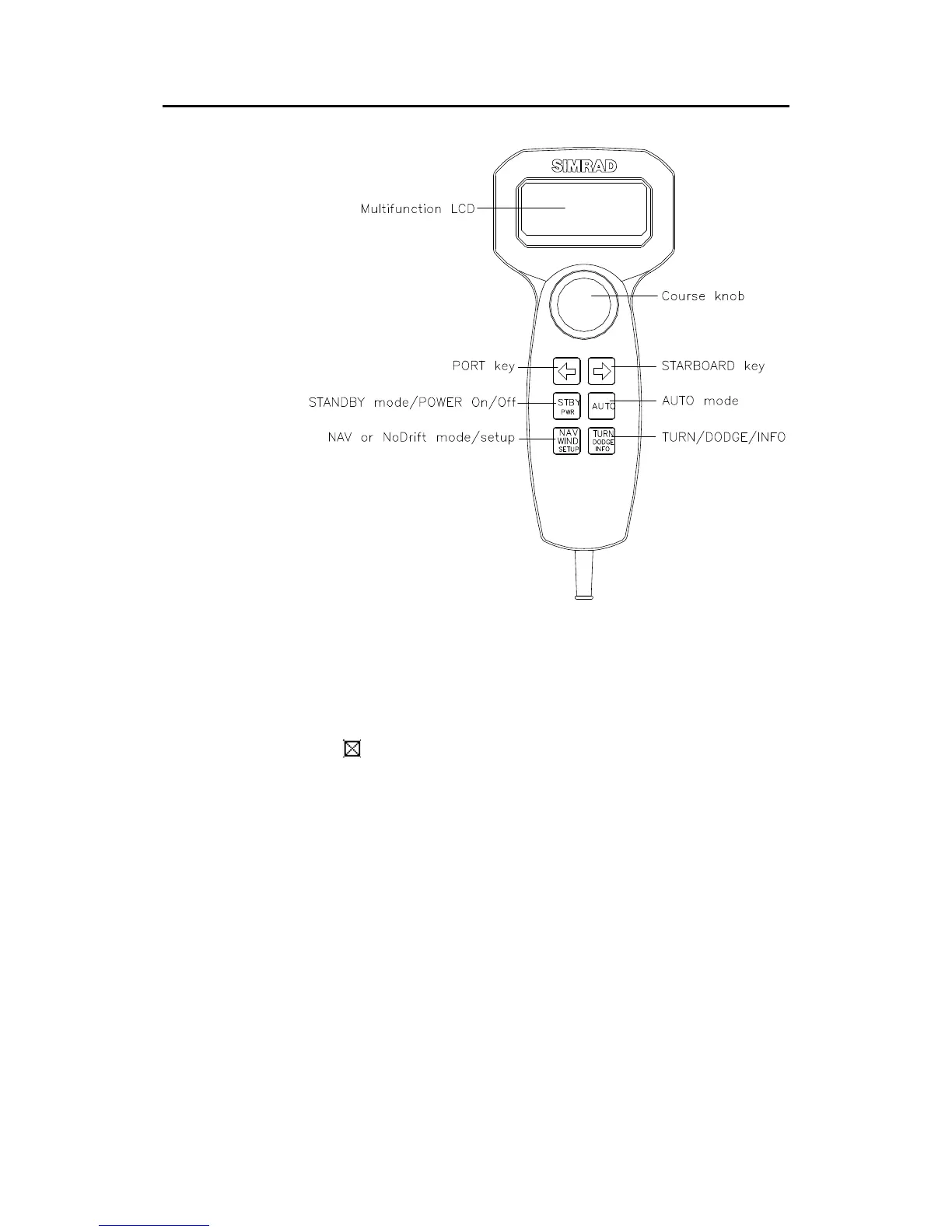

Figure 2-2 AP27 Front Panel
The control units shown above can operate as a stand alone unit
in an autopilot system or combined in a multistation system. In a
multistation system the command can easily be transferred from
one unit to another. Units not in control will display "Inactive"
and/or
.
The autopilot system is capable of the following primary steering
modes: STBY (power steering), AUTO and NAV, each mode
having a dedicated push button.
Each of the mode push buttons is clearly identified with the
primary function in large text, and a secondary function listed in
smaller text. Each button provides you with a multiple function
mode display.
Note ! WIND mode is not applicable, hence not available in a Volvo
Penta IPS configuration.
A group of user adjustable settings are provided in the User
Setup Menu (page 41).
