Configuration and Setup
20222147A 89
• Open the source select page in the User Setup menu and
check that data are available
• Check the navigator setup and make sure it is transmitting
appropriate data.
• Perform a NMEA Port Test (hardware) as per below.
Note ! The “WIND” reading is the apparent wind from the port (L) or
starboard (R). The “SPEED” reading is the speed through
water.

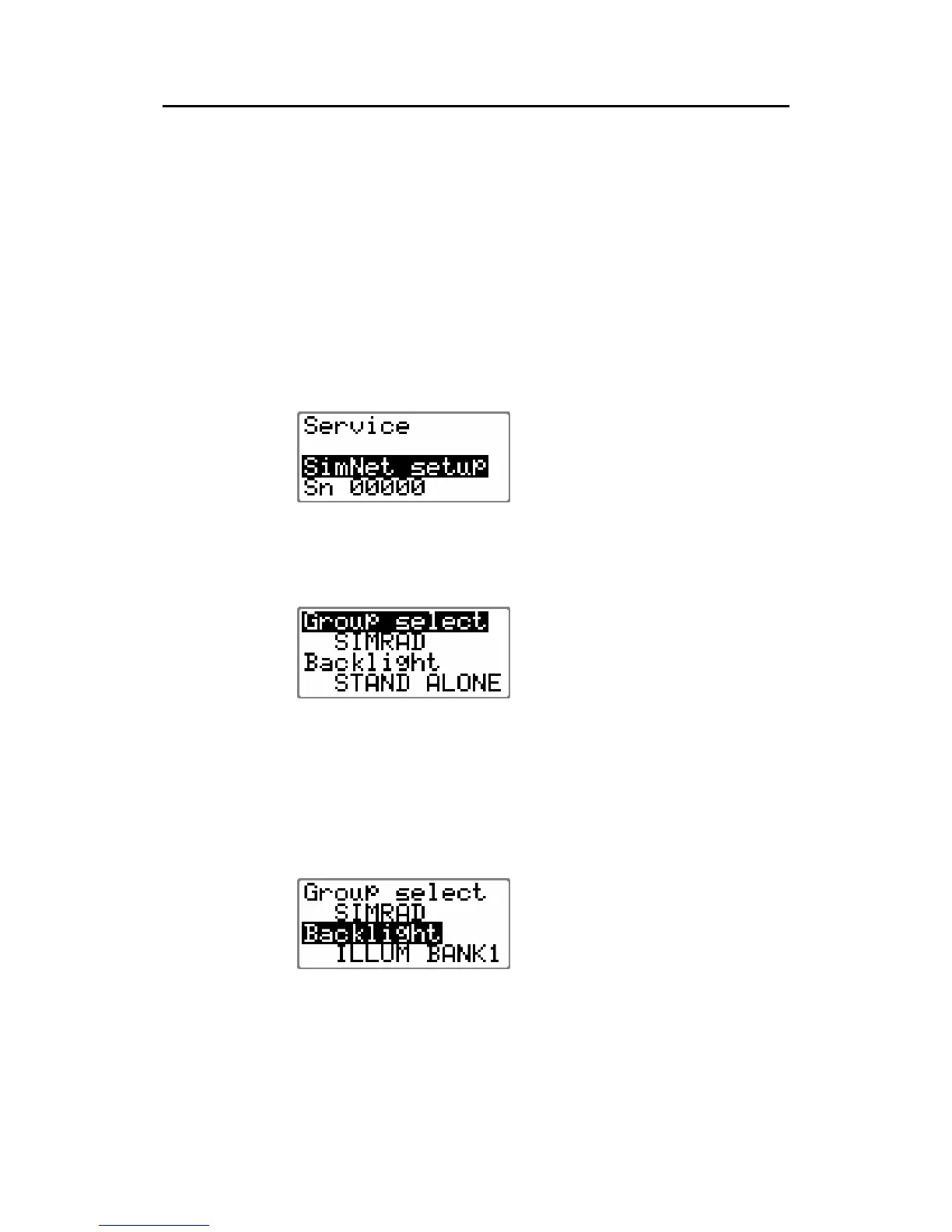

SimNet setup
Under Service in the Installation
Menu, select Simnet setup by
pressing the STBD button and
confirm this by rotating the
course knob clockwise.
Sn 00000 is the unique SimNet
ID number for the specific
autopilot control unit.
Group selection
SIMRAD: Autopilot is part of
the Simrad Group. Source
selection will be common for the
products in the group
(synchronized).
STAND ALONE: Source
selection for the autopilot will
not be transferred to other
products in the Simrad Group
(no synchronization).
Backlight Illumination
Set backlight to synchronize
with one of the illumination
banks (1-3) available on the
SimNet, or to STAND ALONE
for individual control of the
autopilot illumination.
To Next Page
