Simrad AP26 and AP27 Autopilots
106 20222147A
8.3 AP27 Control Unit
Dimensions:............................... See Figure 8-2
Weight: ...................................... 0,57 kg (1,25 lbs)
Power consumption ................... 3 W
Display:
Type:................................. Backlit LCD matrix display
Resolution:........................ 80 x 32 pixels
Color:......................................... Black
Illumination: .............................. Adjustable in 10 steps
Environmental Protection:......... IP56.
Safe distance to compass:.......... 0.3 m (1’)
Temperature:
Operating: ......................... 0 to +55 °C (+32 to +130 °F)
Storage:............................. –30 to +80 °C (–22 to +176 °F)
Mounting: .................................. Handheld or mounted in a fixed, bracket mount.
Cable.......................................... 7m (23’) special Robnet2 cable with air tube.

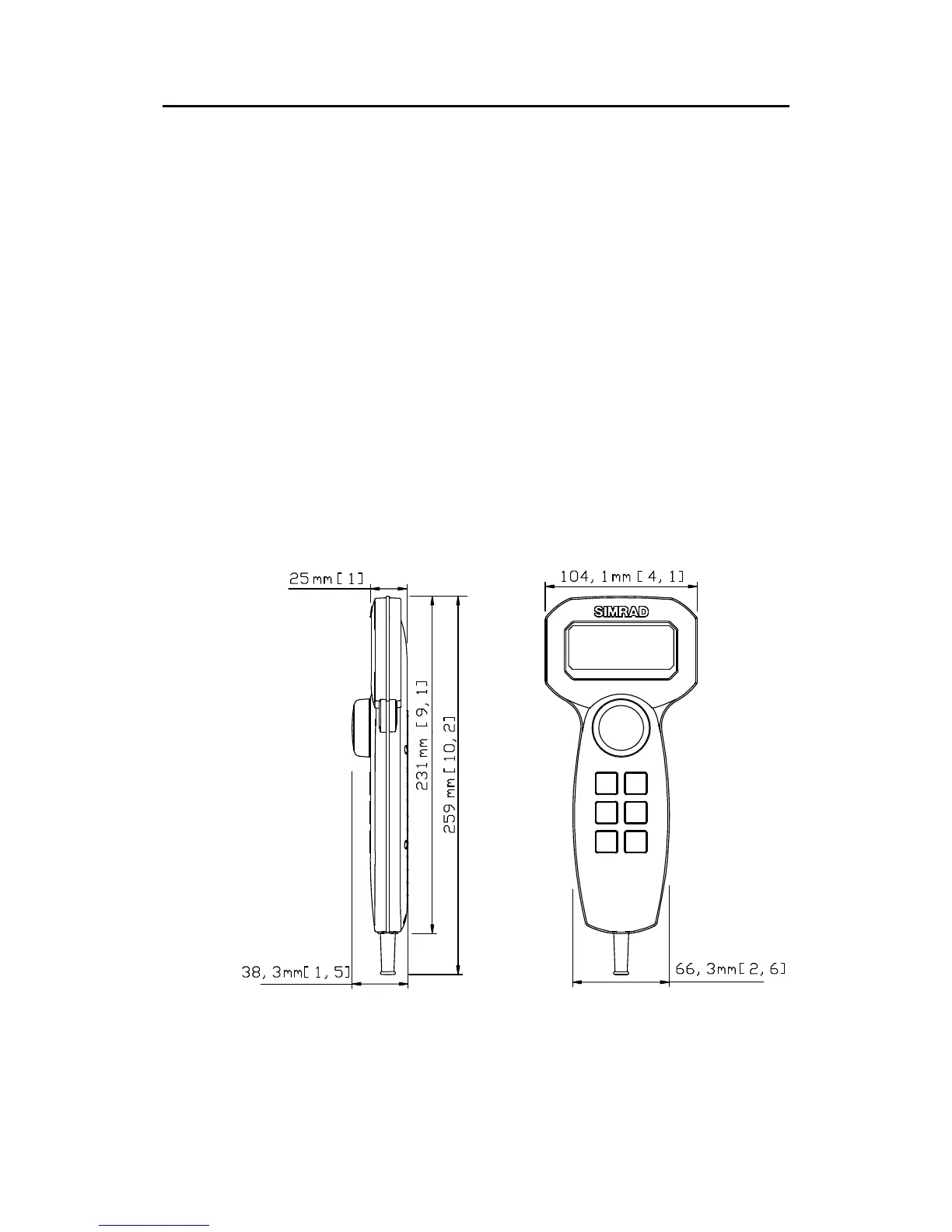

Figure 8-2 AP27 Control Unit - dimensions
