Exit the Parameter menu by pressing STBD button to proceed to
the Service menu, or press STBY to return to normal autopilot
operation.
4.8 Service Menu
Select STANDBY mode and then enter the Installation Menu by
pressing and holding the NAV/WIND/SETUP button for 5
seconds. Select “Service” by pressing the STBD button and
confirm by rotating the course knob clockwise.
System data and SimNet data
are test functions to analyze
data processed by the
autopilot.
To exit the menu, press any
mode key (STBY, AUTO or
NAV).

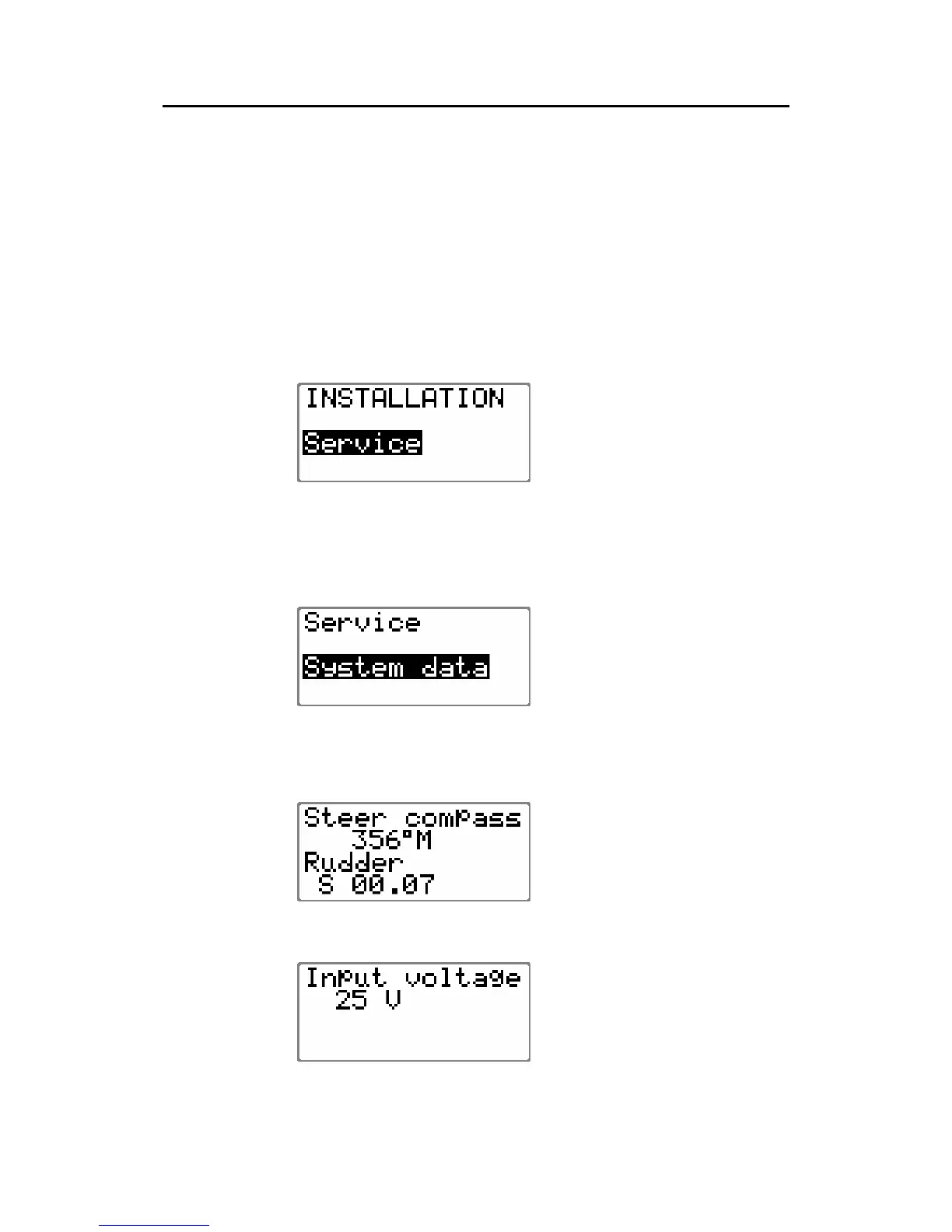

System Data Menu
Select System data by rotating
the course knob clockwise.
Step through the menu by
pressing the STBD button. The
menu provides you with
additional system data that can
be useful when testing or
trouble shooting the system.
Steer compass
Steering Compass readout,
M=Magnetic, T=True
Rudder
Rudder angle. Between zero
and 26 degrees.
Input voltage
Mains voltage on input
terminals.
