Installation
20222147A 55

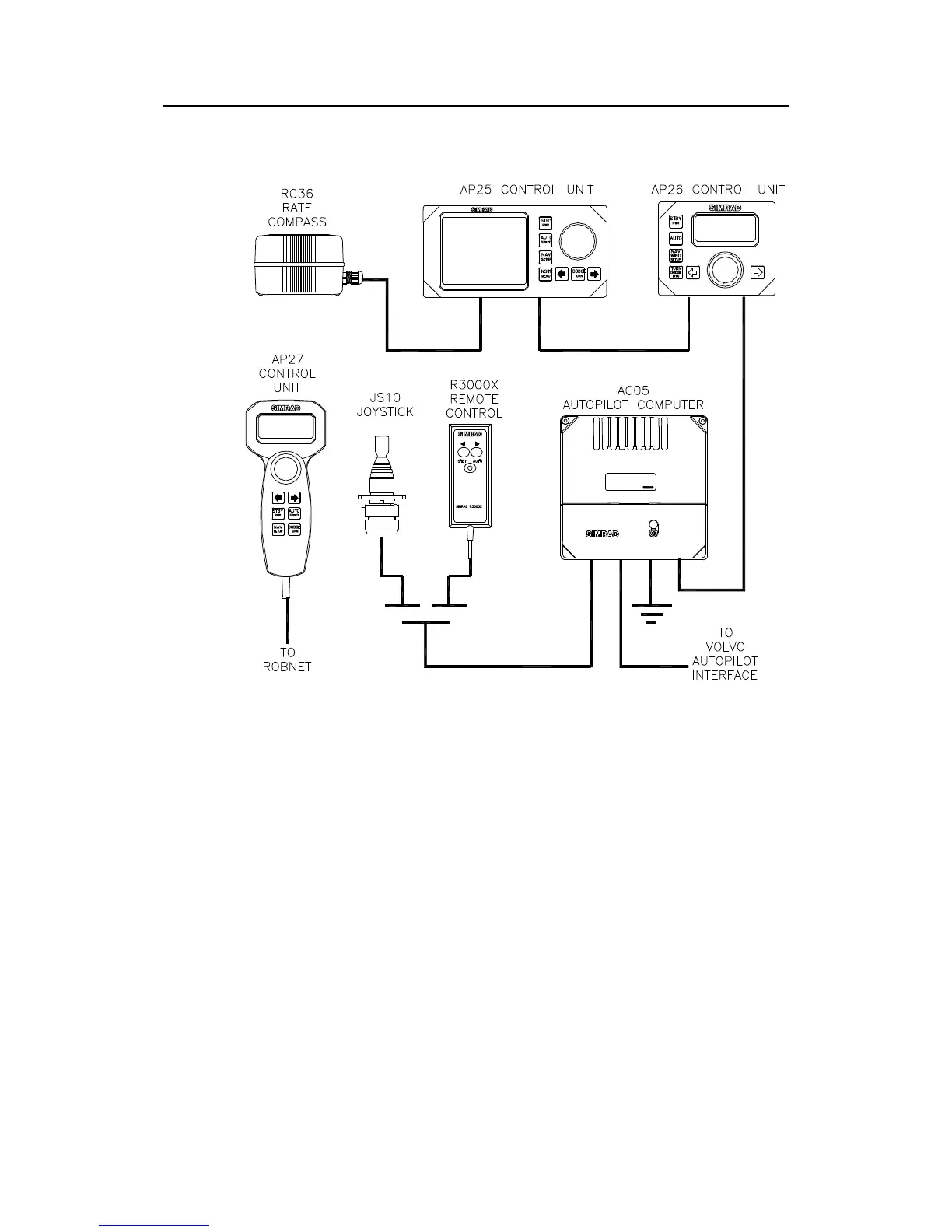

3.5 Autopilot System Layout
Figure 3-1 Autopilot system layout with options
3.6 Autopilot computer installation
The autopilot computer is designed to operate in a location with
ambient temperatures below +55°C (+130°F).
It must be mounted close to the Volvo Autopilot Interface within
the length of the interconnection cable, 1 m (3’). See Figure 3-7.
Note ! The AC05 Autopilot Computer is not weatherproof and should
be mounted vertically in a dry environment.
